Marantz Model 40n FN Integrated Stereo Amplifier Silver Gold Streaming 100V NEW

Marantz Model 40n FN Integrated Stereo Amplifier Silver Gold Streaming 100V NEW

Regular price $2,190.00 USD
Regular price Sale price $2,190.00 USD
Sale Sold out
Shipping calculated at checkout.
Condition: New Supported Modes: AM,FM
Color: Silver Gold Surround Sound Formats: Dolby
Audio Outputs: RCA Number of Outputs: 1
Brand: Marantz Type: Integrated Amplifier
Unit Type: Unit Audio Inputs: HDMI
Number of Channels: 2 Number of Inputs: 6
Model: Marantz Model40NFN Features: Analog,Digital
Unit Quantity: 1 Power: 40 W
UPC: 747192135966

Description

A network-compatible stereo Hi-Fi amplifier that can also be connected to a TV via HDMI ARC.

■Key Features
New generation Marantz design
A new housing created with a modern interpretation while inheriting traditional design elements.
Variable gain preamplifier with HDAM®+HDAM®-SA2
45% noise reduction (compared to PM8006) increases the amount of detailed information and creates highly transparent spatial expressions.
Fully discrete current feedback parallel push-pull power amplifier
Overwhelming speaker driving power is achieved with an instantaneous current supply capacity of up to 68A.
Large capacity and high quality power supply circuit
The largest toroidal transformer in its class and custom capacitors provide high speed and ample power supply.
Enjoy high-quality TV audio
Supports audio input via HDMI ARC (linear PCM, 2ch). Also compatible with TV remote control
Freely play various digital contents
Network, music streaming service, AirPlay2, Bluetooth®, USB memory/HDD

■Audio characteristics
Rated output 100W+100W (4Ω, 20Hz–20kHz) 70W+70W (8Ω, 20Hz–20kHz)
Total harmonic distortion 0.02% (20Hz–20kHz, both channels driven simultaneously, 8Ω)
Frequency characteristics 5Hz-100kHz (±3dB)
Damping factor 100 or more (8Ω, 20Hz–20kHz)
Input sensitivity/input impedance PHONO (MM) 1.6mV/47kΩ,
CD/LINE/RECORDER220mV/16kΩ, POWERAMPIN1.5V/15kΩ
Output voltage SUB WOOFER OUT 220mV
PHONO maximum allowable input (MM) 80mV (1kHz)
RIAA deviation ±0.5dB (20Hz-20kHz)
S/N ratio (IHF A network, 8Ω) PHONO (MM) 87dB (5mV input),
CD/LINE/RECORDER113dB (rated output)
POWERAMPIN125dB (rated output)
Tone control BASS (50Hz) ±10dB, TREBLE (15kHz) ±10dB
■Input/output terminal
Audio input terminal Unbalanced x 3, PHONO (MM) x 1, POWERAMPIN x 1, HDMIARC x 1,
Coaxial digital x 1, optical digital x 1, USB-A x 1
Audio output terminals: subwoofer pre-out x 1, REC out x 1, headphones x 1
Other input/output terminals Network x 1, Bluetooth/Wi-Fi antenna input x 2, Marantz Motorbus (RC-5) input/output x 1
■General
Power supply AC100V, 50/60Hz
Power consumption 220W
Standby power 0.3W (normal standby)/2W (network standby)
Maximum external dimensions W443xH130xD432mm (when the rod antenna is laid down)
W443xH194xD432mm (with rod antenna up)
Mass 16.7kg

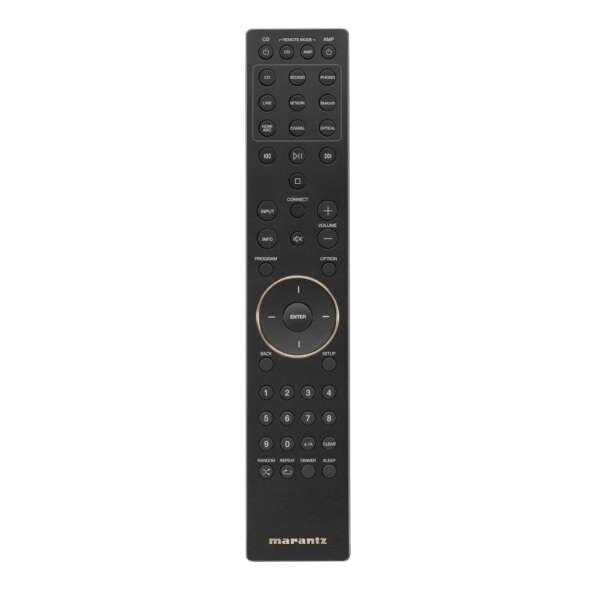

Accessories Easy start guide, instruction manual, warranty, remote control (RC005PM),
Short plug x 2 (PHONO), AAA batteries x 2, Bluetooth/Wi-Fi antenna x 2, power cord
