・New generation Marantz design

A new housing created with a modern interpretation while inheriting traditional design elements.

・Full discrete preamplifier with newly developed low distortion HDAM

Low-distortion HDAM improves distortion by approximately 40% compared to conventional models

・Variable gain preamplifier equipped with HDAM+HDAM-SA2

Variable gain preamplifier circuit that greatly improves S/N ratio and spatial expressiveness

・Full discrete current feedback parallel push-pull power amplifier

Increased instantaneous current supply capacity to 66A, 145% of PM8006, greatly improving speaker driving power.

・Large capacity and high quality power supply circuit

Adopts one of the largest large-capacity toroidal transformers in its class and custom block capacitors (18,000μF/63V x 2)

・MM type cartridge compatible phono equalizer

Eliminate AC coupling capacitors and improve signal path purity

・Machined brass speaker terminal & input terminal

Robust machined brass terminals are used for the speaker terminal, CD input, and phono input.

Rated output 70W+70W (8Ω, 20Hz-20kHz)

100W+100W (4Ω, 20Hz-20kHz)

Speaker output terminals 2 systems (A/B switching compatible, 4Ω–16Ω)

Total harmonic distortion rate 0.02% (20Hz-20kHz, both channels driven simultaneously, 8Ω load)

Frequency characteristics 5Hz-100kHz±3dB (CD, 1W, 8Ω load)

Damping factor 100 or more (20Hz-20kHz, 8Ω load)

Input sensitivity/input impedance PHONO (MM): 1.4mV/47kΩ

CD, TUNER, LINE, RECORDER: 185mV/16kΩ

POWERAMPIN: 1.5V/15kΩ

Output voltage PREOUT: 1.5V

SUBWOOFEROUT: 220mV

PHONO maximum allowable input (MM) 80mV (1kHz)

RIAA deviation ±0.5dB (20Hz to 20kHz)

S/N ratio (IHF-A, 8Ω load) PHONO (MM): 87dB (at 5mV input)

CD, TUNER, LINE, RECORDER: 113dB (rated output)

POWERAMPIN: 125dB (rated output)

Tone control BASS (50Hz): ±10dB, TREBLE (15kHz): ±10dB

Audio input terminal Unbalanced x 5, Phono (MM) x 1, POWERAMPIN x 1

Audio output terminal 2.1ch pre-out x 1, REC out x 1, headphones x 1

Other terminals Marantz remote bus (RC-5) input/output x 1

Power supply AC100V, 50/60Hz

Power consumption 220W

Standby power 0.3W

Maximum external dimensions W442xH130xD431mm

Mass 14.4kg

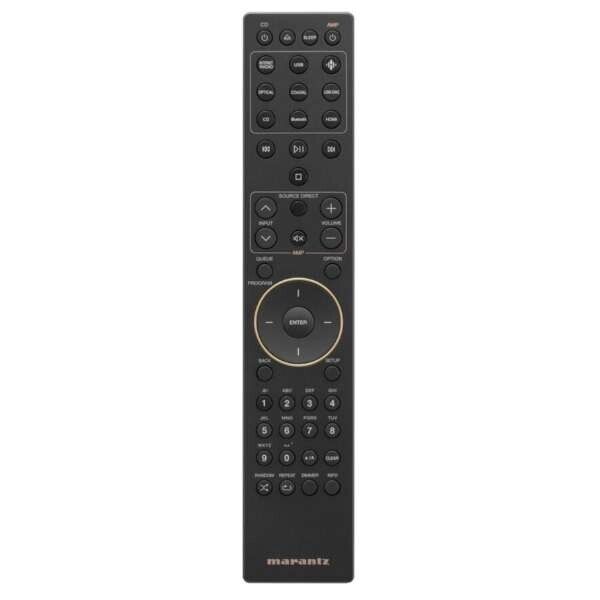

Accessories Easy start guide, remote control (RC003PMND), AAA batteries x 2, power cord
