Marantz PM-10S1/FN Reference Integrated Amplifier 100V NEW
Marantz PM-10S1/FN Reference Integrated Amplifier 100V NEW
Regular price
$5,400.00 USD
Regular price
Sale price
$5,400.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
| Condition: New | Brand: Marantz |
| Type: Integrated Amplifier | Audio Inputs: Phono/Turntable,Stereo L/R RCA,XLR |
| Number of Channels: 2 | Number of Inputs: 7 |
| Color: Silver | Model: PM-10S1/FN |
| Surround Sound Formats: Not Applicable | Audio Outputs: Banana Speaker Jacks,Headphone Jack,Stereo L/R RCA |
| Number of Outputs: 2 |
Description
●Rated output: 400W+400W (4Ω, 1kHz, T.H.D.0.1%) 200W+200W (8Ω, 1kHz, T.H.D.0.05%)
●Total harmonic distortion rate: 0.005% (100W, 8Ω, 1kHz)
●Frequency characteristics: 5Hz-50kHz (±3dB, CD, 1W, 8Ω)
●Damping factor: 500 (8Ω, 20Hz-20kHz)
●Input sensitivity/input impedance: PHONO (MC Low) 280μV/10Ω, PHONO (MC High) 280μV/50ΩPHONO (MM) 2.6mV/47kΩ, BALANCED 880mV/40kΩ, CD/LINE440mV/20kΩ, POWER AMP IN1.5V/20kΩ
●PHONO maximum allowable input: MC8mV (1kHz), MM80mV (1kHz)
●RIAA deviation: ±0.5dB (20Hz-20kHz)
●S/N ratio (IHFA network, 8Ω): PHONO (MC) 76dB (0.5mV input, 1W output), PHONO (MM) 88dB (5mV input, 1W output), BALANCED 111dB (4V input, rated output), CD /LINE111dB (2V input, rated output)
●Audio input terminals: Balanced x 2, Unbalanced x 4, PHONO x 1, Power amplifier direct x 1
●Audio output terminal: REC out x 2, headphones x 1
●Other input/output terminals: Marantz remote bus (RC-5) input/output x 1, F.C.B.S. input/output x 1
●Power consumption: 270W
●Standby power: 0.3W
●Maximum external dimensions: W440 x H168 x D453mm
●Mass: 21.5kg

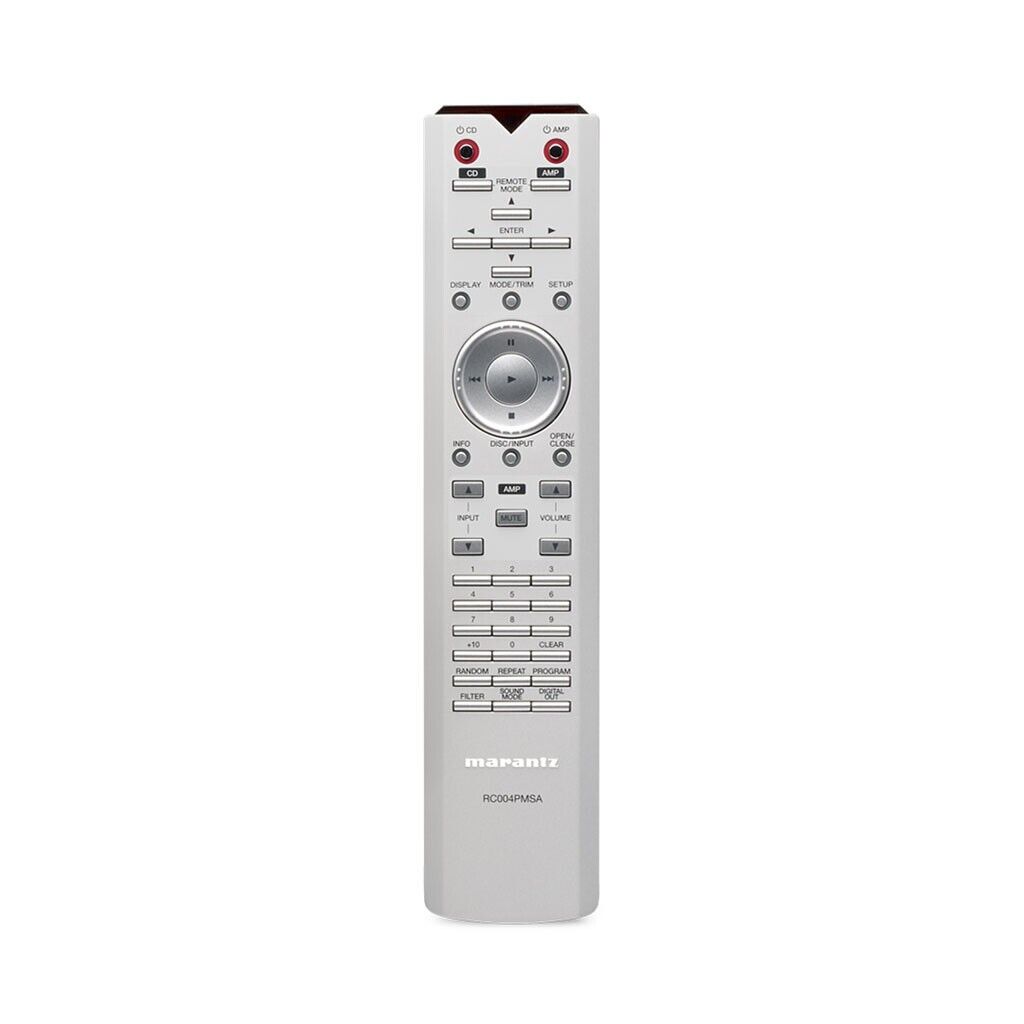

●Accessories: Instruction manual, remote control (RC004PMSA), short plug x 4 (PHONO, POWER AMP IN), AAA batteries x 2, power cord
*AC100V
