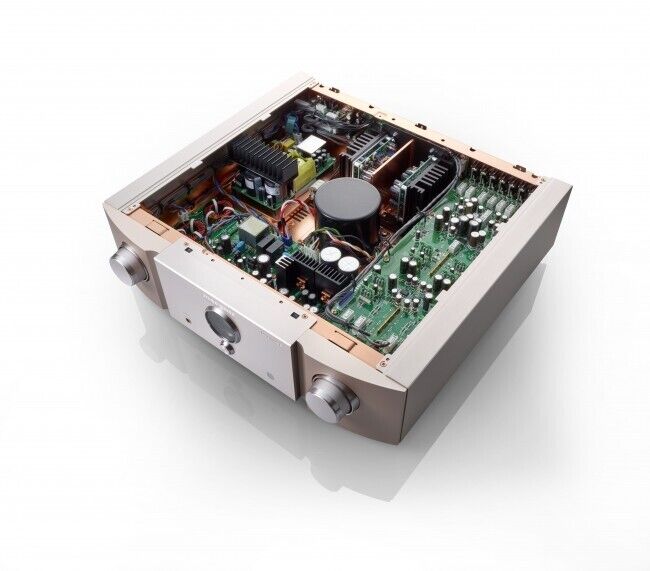

Marantz PM-12 OSE FN Integrated Amplifier HDAM Flagship Model Gold 100V NEW

Current feedback preamplifier equipped with newly developed HDAM-SA3

The philosophy that has been inherited in the development of Marantz's preamplifiers, which originated with the Audio Consolette and the famous Model 7, is "to send the input signal to the power amplifier without compromising the freshness of the input signal in the slightest." Even in today's world, where the sources of playback continue to expand from analog records to CDs, super audio CDs, and high-resolution sound sources, our underlying philosophy remains unchanged. We pursue original sound reproduction by paying close attention to even the slightest changes in auditory sensation, without limiting ourselves to the realm of specs that can be quantified. By adopting a switching amplifier, the PM-12 OSE's power amplifier circuit and heat sink, which previously occupied a large space in conventional analog amplifiers, have been miniaturized. It is now possible to use it for Making the most of this space, we designed the circuit and selected parts with top priority on sound quality, and constructed a single-stage configuration that combines a current feedback amplifier using Marantz's proprietary high-speed amplifier module HDAM-SA3 with a JFET input and a DC servo circuit. Newly developed preamplifier circuit. While refining the well-known information richness and high-speed sound, we have also reduced the number of coupling capacitors used, greatly improving the resolution and transparency of the audio signal.

Rated output 200 W + 200 W (4 Ω, 1 kHz, T.H.D. 0.1 %) 100 W + 100 W (8 Ω, 1 kHz, T.H.D. 0.05 %)

Total harmonic distortion 0.005% (100 W, 8 Ω, 1 kHz)

Frequency response 5 Hz - 50 kHz (±3 dB, CD, 1 W, 8 Ω)

Damping factor 500 (8 Ω, 20 Hz – 20 kHz)

Input sensitivity/input impedance PHONO (MC) 250μV / 100 Ω, PHONO (MM) 2.3 mV / 39 kΩ, CD / LINE 220 mV / 13 kΩ, POWER AMP IN 1.1 V / 13 kΩ

PHONO maximum allowable input MC 8 mV (1 kHz), MM 80 mV (1 kHz)

RIAA deviation ±0.5 dB (20 Hz – 20 kHz)

S/N ratio (IHF A network, 8Ω) PHONO (MC) 75 dB (0.5 mV input), PHONO (MM) 88 dB (5 mV input), CD / LINE 107 dB (rated output)

《Input/output terminal》

Audio input terminals unbalanced x 5, PHONO x 1, POWER AMP IN x 1

Audio output terminal REC out x 2, headphones x 1

Other input/output terminals Marantz remote bus (RC-5) input/output x 1, F.C.B.S. input/output x 1

《General》

Power consumption 130W

Standby power 0.2W

Maximum external dimensions W440 x H127 x D453 mm

Mass: 15.7 kg

Accessories Instruction manual, remote control (RC005PMSA), short plug x 2 (PHONO), AAA batteries x 2, power cord
