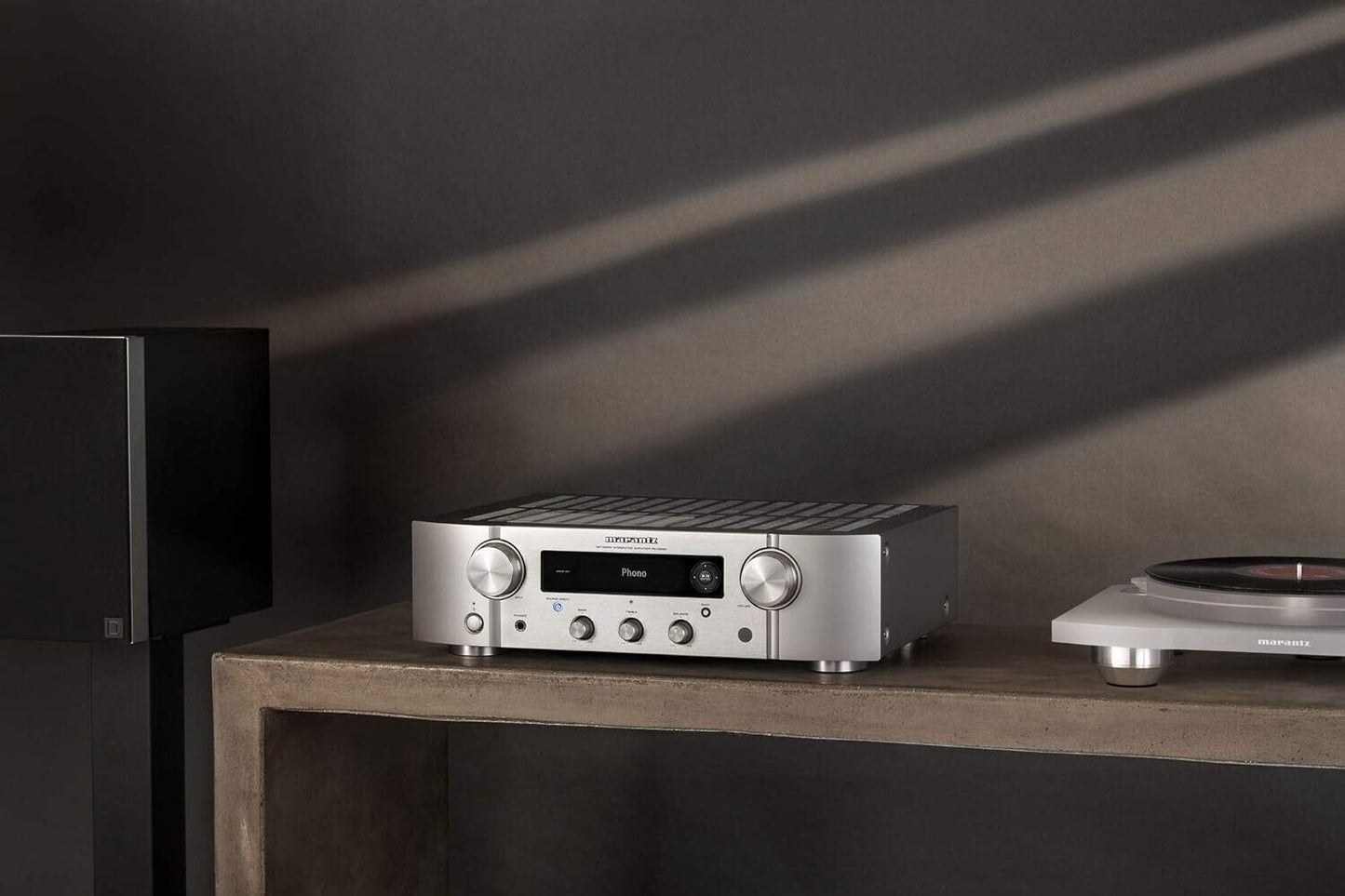

Marantz PM7000N FN HEOS Built-in Network & Streaming Hi-Fi Premain Amplifier NEW

●Rated output

・60W+60W (8Ω, 20Hz - 20kHz, both channels driven simultaneously)

・80W+80W (4Ω, 20Hz - 20kHz, both channels driven simultaneously)

●Compatible impedance: 4 - 16Ω

●Total harmonic distortion rate: 0.02% (8Ω, 20Hz - 20kHz, both channels driven simultaneously)

●Frequency characteristics: 5Hz-100kHz (±3dB)

●Damping factor: 100 or more

●Input sensitivity/input impedance

・PHONO (MM): 2.0mV/47KΩ

・CD/AUX/RECORDER: 220mV/18kΩ

●Output voltage: Subwoofer pre-out 240mV

●PHONO maximum allowable input: MM 80mV (1kHz)

●RIAA deviation: ±0.5dB (20Hz-20kHz)

●S/N ratio (IHF A network, 8Ω)

・PHONO (MM): 87dB (5mV input, 1W output)

・CD/AUX/RECORDER: 115dB (2V input, rated output)

●Audio input terminals: analog x 3, Phono (MM) x 1, optical digital x 2, coaxial digital x 1

●Audio output terminal: REC out x 1, subwoofer pre-out x 1, headphones x 1

●Other terminals: Network x 1, USB-A x 1, Bluetooth/Wi-Fi antenna input x 2, Marantz remote bus (RC-5) input/output x 1

●Wireless LAN (network type/frequency): IEEE 802.11 a/b/g/n compliant (Wi-Fi compliant)/2.4GHz, 5GHz

●Bluetooth

・Version: 4.1

・Supported profiles: A2DP 1.2, AVRCP 1.5

・Supported codec: SBC

・Transmission output/communication distance: Class 1/approx. 30m (line-of-sight distance)

●Power consumption: 220W

●Standby power: 0.5W (normal standby), 4.8W (when "network control" is on)

●Maximum external dimensions

・W440×H125×D379mm (when the antenna is laid down)

・W440×H190×D379mm (when antenna is erected)

●Mass: 10.8kg

●Accessories: Easy start guide, instruction manual, remote control (RC004PM), AAA batteries x 2, Bluetooth/Wi-Fi antenna x 2, power cord
