Marantz SR6015-FB 8K Compatible AV Surround Receiver AC100V NEW

The SR6015 is an AV receiver developed with a focus on improving the stereo playback capability, which Marantz believes is the most basic and important capability of an amplifier. Even with a surround amplifier, there are many opportunities to actually play stereo content, and if the sound quality is not satisfactory, we believe that such a product should not be released to the world. The SR6015 simply expands the excellent stereo playback capability to multi-channel, achieving a highly transparent spatial expression that is faithful to the original sound, similar to Hi-Fi components, whether the source is stereo or surround.

It supports the latest functions such as 8K/60p, 4K/120p video signal pass-through, HDR10+, and the audio format MPEG-4 AAC (stereo, 5.1 ch) used in the new 4K8K satellite broadcasting, allowing you to enjoy high quality sound and image quality from any source.

Number of installed power amplifiers: 9 ch

Rated output: 110 W + 110 W (8 Ω, 20 Hz - 20 kHz, THD 0.08%)

Maximum practical output: 220 W (6 Ω, 1 kHz, THD 10%, 1 ch driven, JEITA)

Compatible impedance: 4 - 16 Ω

S/N ratio: 100 dB (IHF-A, in direct mode)

Frequency response: 10 – 100 kHz (+1, -3 dB, in direct mode)

HDMI terminals: 7 inputs (1 8K compatible input), 3 outputs (2 monitors, 1 zone 2)

Video input terminals: 2 component, 4 composite (1 front)

Video output terminals: 1 component, 1 composite

Audio input terminals Analog x 6 (front x 1), Phono (MM) x 1, 7.1ch input x 1,

Optical digital x 2, Coaxial digital x 2

Audio output terminals 11.2ch pre-out x 1, Zone pre-out x 1, Headphones x 1

Other terminals Network x 1, USB (front) x 1, Setup microphone input x 1

Bluetooth/Wi-Fi antenna input x 2, FM antenna input x 1,

AM antenna input x 1, RS-232C x 1, DC trigger output x 1,

Flasher input x 1, Marantz Remote Bus (RC-5) input/output x 1

Tuner reception frequency band FM: 76.0 – 95.0 MHz, AM: 522 – 1629 kHz

Wireless LAN

(Network type / frequency) IEEE 802.11 a/b/g/n compliant (Wi-Fi® compliant) / 2.4 GHz, 5 GHz

Bluetooth version 4.2 Supported profile reception: A2DP 1.2, AVRCP 1.5, Transmission: A2DP 1.2

Supported codec: SBC

Transmission power / Communication distance: Class 1 / Approx. 30 m (line of sight)

Power supply: AC 100V, 50/60 Hz

Power consumption: 680 W

Standby power consumption: 0.2 W (normal standby) / 0.5 W (CEC standby)

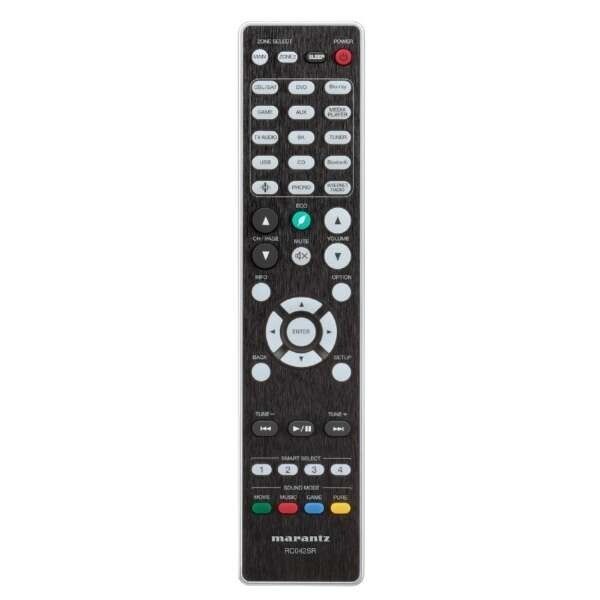

Accessories: Easy start guide, remote control (RC042SR), 2 x AAA batteries,

Setup microphone, microphone stand, cable label, FM indoor antenna,

AM loop antenna, 2 x Bluetooth/Wi-Fi antennas, power cord

Maximum external dimensions: W440 x H161 x D398 mm (with antenna laid flat)

W440 x H229 x D398 mm (with antenna erected)

Weight: 12.8 kg
