・New generation Marantz design

A new housing created with a modern interpretation while inheriting traditional design elements.

・Hi-Fi grade professional preamplifier equipped with HDAM-SA2

Marantz's unique high-speed amplifier module delivers delicate and information-rich sound

・Full discrete power amplifier

Slim design with rated output of 75W (8 Ω, 20 Hz - 20 kHz, THD 0.08%)

・Supports 8K / 60Hz, 4K / 120Hz, HDR10+, HDCP 2.3, eARC

Compatible with a wide range of new standards for enjoying the latest video content. 3 out of 6 inputs support his 8K/60Hz, 4K/120Hz

・Advanced network functions equipped with HEOS technology

Streaming (Amazon Music HD, AWA, Spotify), Internet radio, high-resolution file playback

・Wi-Fi, AirPlay 2, Bluetooth®, Alexa compatible

Easily stream music wirelessly. Also supports volume adjustment for Bluetooth transmission. Hands-free operation with voice

- More beautiful, easy-to-use and sophisticated interface

HD GUI, Setup Assistant, Marantz AVR Remote App, Smart Select Features

Rated output 75 W + 75 W (8 Ω, 20 Hz - 20 kHz, THD 0.08%)

100W + 100W (6 Ω, 1kHz, THD 0.7%)

Compatible impedance 4-16Ω

S/N ratio 98 dB (IHF-A, in direct mode)

Frequency response 10-100 kHz (+1, -3 dB, in direct mode)

HDMI terminal input x 6 (8K compatible input x 3), output x 1

Audio input terminal Analog x 3, Phono (MM) x 1, optical digital x 1, coaxial digital x 1

Audio output terminal 2.2ch pre-out x 1, zone pre-out x 1, headphones x 1

Other terminals Network x 1, USB-A x 1, Power supply only USB-A x 1, Bluetooth/Wi-Fi antenna input x 2, FM antenna input x 1, AM antenna input x 1, Marantz Remote Bus (RC-5 ) Input/output x 1, IR flasher input x 1

Tuner reception frequency band FM: 76.0-95.0 MHz, AM: 522-1629 kHz

Wireless LAN network type IEEE 802.11 a/b/g/n/ac compliant (Wi-Fi® compliant)

Frequency 2.4 GHz / 5 GHz

Bluetooth version 5.0

Supported profiles Receive: A2DP 1.2 / AVRCP 1.5, Transmit: A2DP 1.2

Compatible codec SBC

Transmission output / Communication distance Class 1 / Approx. 30 m (line-of-sight distance)

Power supply AC 100V, 50/60Hz

Power consumption 210W

Standby power 0.2 W (normal standby) / 0.5 W (CEC standby)

Maximum external dimensions W442 x H109 x D386.5 mm (when antenna is laid down)

W442 x H178 x D386.5 mm (with antenna up)

Mass 8.4 kg

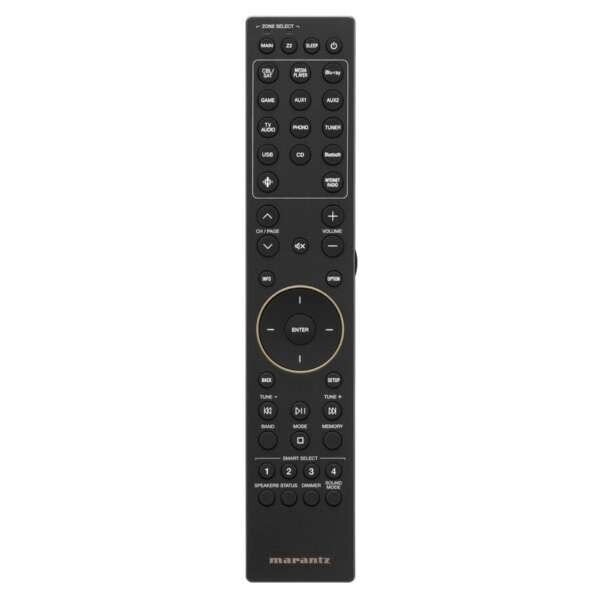

Accessories Easy start guide, remote control (RC052SR), AAA batteries x 2, FM indoor antenna, AM loop antenna, Bluetooth / Wi-Fi antenna x 2, power cord
