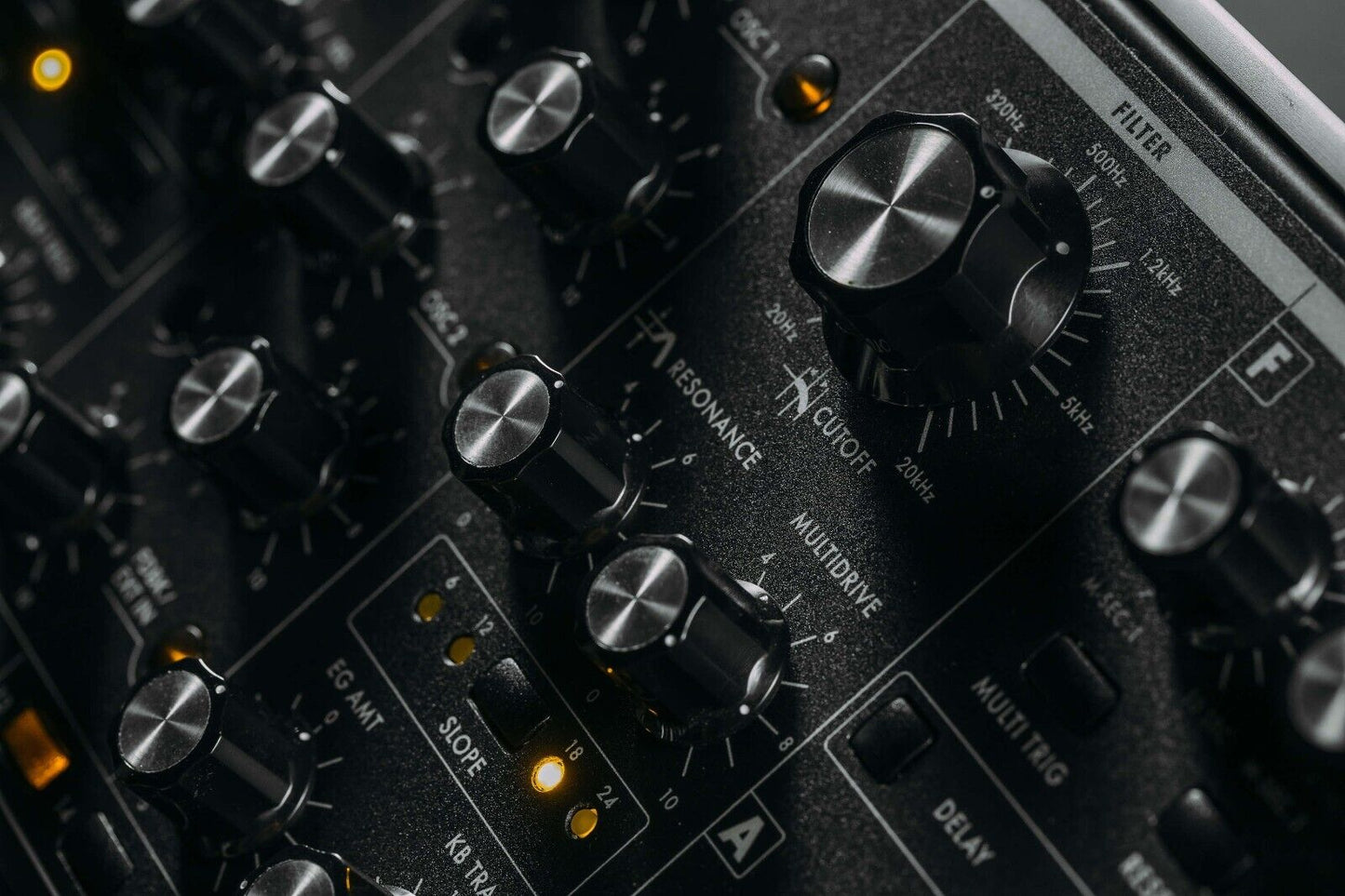

Moog Subsequent 37 Paraphonic Analog Keyboard Synthesizer NEW

Main Specifications

Sound Engine: Analog

Polyphony: 1 (monophonic) or 2 (paraphonic) (selectable)

Keyboard: 37-key semi-weighted (with velocity and aftertouch)

LCD: 128x64 pixels, with backlight (white)

Control functions: pitch bend, modulation wheel, aftertouch, velocity

Sound Source: Variable Waveshape Oscillator x2, Sub Oscillator (Square Wave) x1, Analog Noise Generator x1, External Audio Input/Filter Feedback x1

Oscillator calibration range: 22Hz - 6.8kHz (MIDI note: 18 - 116 (when oscillator octave setting is 8'))

Glide (portamento) function: selectable (oscillator 1, 2, both), type: LCR (linear constant rate), LCT (linear constant time), EXP (exponential), gate function, legato function

Filter: 20H-20kHz Moog Ladder Filter, Filter Slope: 6, 12, 18, 24dB/Oct, Multi-Drive function

Transpose: 2 octaves up and down

Arpeggiator/Sequencer: Pattern: Up, Down, Random, Latch function, Back/Force function, Invert function, Range: Up and down 2 octaves, MIDI sync function, Sequencer: 64 notes, Tie, Rest

Source (modulation source): LFO (Triangle, Square, Sawtooth, Ramp, Sample & Hold), Filter

Programmable sources: amp EG, constant on, sine wave LFO, noise LFO, oscillator 1 pitch, oscillator 2 pitch, sequencer note, sequencer velocity, sequencer modulation

Destination (Modulation Destination): Oscillator 1, Oscillator 2, Oscillator 1 & 2 Pitch, Filter, LFO Rate, VCA Level, Oscillator 1 Wave, Oscillator 2 Wave, Oscillator 1 & 2 Wave, Noise Level, EG Time/PGM - Filter Resonance, Filter Drive, Filter Slope, Filter EG Amount, Filter Keyboard Amount, Oscillator 1 Level, Sub Oscillator Level, Oscillator 2 Level, External Audio Input/Feedback Level, Oscillator 1 On, Sub Oscillator On, Oscillator 2 On, Noise On, External Audio Input/Feedback On, Arpeggiator Rate, Clock Division, Arpeggiator Range, Arpeggiator Back/Force, Arpeggiator End, Arpeggiator Invert, Arpeggiator Gate Length, Arpeggiator Eighter Run, Glide Time, Glide Oscillator Select, Glide Type, Glide Gate, Glide Legato, Glide On, LFO 1 Clock Divide, LFO 1 Range, LFO 1 Sync, LFO 1 Keyboard Reset, LFO 1 Keyboard Track, MOD1 Pitch Amount, MOD1 Filter Amount, MOD1 Programmable Amount, MOD1 Programmable Destination, LFO 2 Clock Divide, LFO 2 Range, LFO 2 Sync, LFO 2 Keyboard Reset, LFO 2 Keyboard Track, MOD2 Pitch Amount, MOD2 Filter Amount, MOD2 Programmable Amount, MOD2 Programmable Destination, Oscillator 1 Octave, Oscillator 2 Sync, Oscillator 2 Keyboard Reset, Oscillator 2 Octave, Oscillator 2 Keyboard Control, Oscillator 2 Duo Mode, Oscillator 2 Frequency, Oscillator 2 Beat Frequency, Filter EG Attack Time, Filter EG Decay Time, Filter EG Sustain Level, Filter EG Release Time, Filter EG Delay Time, Filter EG Hold Time, Filter EG Velocity Amount, Filter Keyboard Track, Filter EG Master Multi Triggering, Filter EG Reset, Filter EG Sync, Filter EG Loop, Filter EG Latch, Amp EG Attack Time, Amp EG Decay Time, Amp EG Sustain Level, Amp EG Release Time, Amp EG Delay Time, Amp EG Hold Time, Amp EG Velocity Amount, Amp EG Keyboard Track, Amp EG Multi-Triggering, Amp EG Reset, Amp EG Sync, Amp EG Loop, Amp EG Loop, Amp EG Latch, Output Volume, Bend・Up, Bend ・Down

Other specifications:

LFO Panel Functions: Hi/Low Range: 0.01Hz - 1kHz, MIDI Sync, Keyboard Reset

Envelope: DAHDSR (delay, attack, hold, decay, sustain, release) envelope, multi-trigger function, reset function, loop function, MIDI sync, latch function, EG delay, hold function, velocity amount, keyboard track function

External Audio Input: 1/4"TS

Audio output: 1/4" TS, 1/4" TRS headphones

Preset: 256 sounds (16 banks x 16 presets)

MIDI I/O: DIN In/Out, and MIDI over USB

CV/GATE Inputs: Filter CV, Pitch CV, Volume CV, Keyboard Gate

Power supply: 110VAC-240VAC (universal power supply), connector: IEC

Dimensions: 680 (W) x 375 (D) x 172 (H) mm

Weight: about 9.98kg
