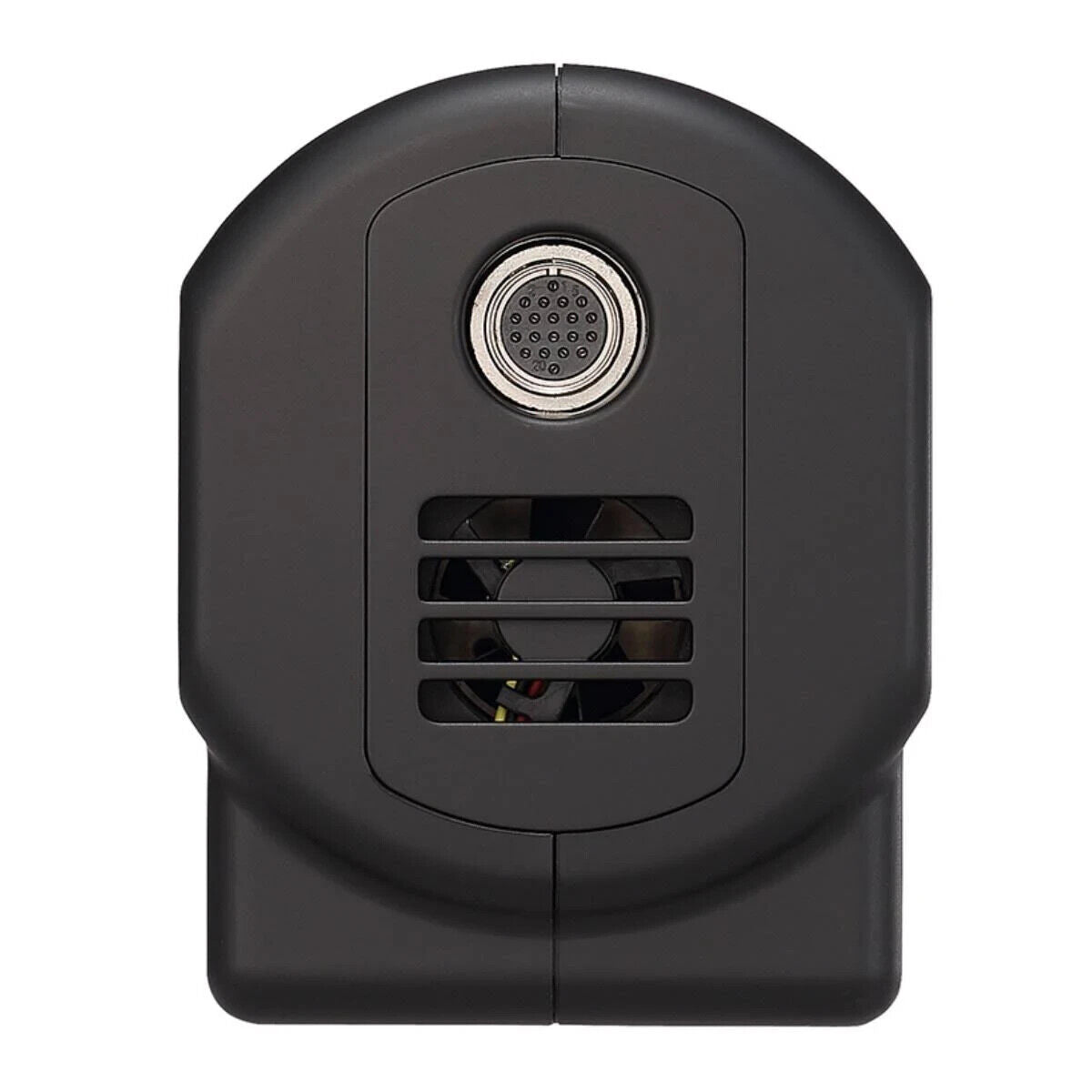

Panasonic AG-UCK20GJ compact camera head POVCAM NEW

The AG-UCK20 is a compact camera head that, in conjunction with the AG-UMR20, enables 4K (2160/29.97p) recording.

It is equipped with image quality and functions to meet the needs of video production, such as a wide-angle, high-magnification 20x zoom, 16-axis independent color correction, 5-axis hybrid image stabilization, infrared shooting, and ND filter settings.

The camera can be remotely controlled from the AG-UMR20 connected with a dedicated cable (sold separately/maximum 20m).

In addition to manually controlling the REC S/S and zoom using the camera remote terminal on the AG-UMR20, it can also manually control the focus and iris.

■Power supply voltage

DC 9 V (supplied from the dedicated recorder AG-UMR20)

■Power consumption

0.6 A

■Permissible operating temperature

0 ℃-40 ℃

■Permissible operating humidity

10%-80% (no condensation)

■Weight

Approx. 325 g

■External dimensions

Width 64 mm × Height 72 mm × Depth 131 mm (excluding protrusions)

Camera section

■Image sensor

1/2.3-type MOS solid-state image sensor (total pixels: approx. 12.76 million pixels)

■Lens

Zoom: Electric 20x zoom

F-number: F1.8-F3.6

Focal length: f=4.08 mm-81.6 mm

35mm equivalent: 29.5 mm-612.0 mm (Hybrid O.I.S. mode "off")

Filter diameter: 49 mm

ND filter: CLEAR, 1/4, 1/16, 1/64 (built-in)

Minimum shooting distance: Full zoom range: 1.5 m, Wide end: 3 cm

IR cut filter: ON/OFF switching function

■Zoom

i.Zoom: 30x (HD), 22x (4K)

Digital zoom: 1.4x, 2x, 4x, 6x, 8x

■Image stabilization method

Optical (HD, 4K)/5-axis hybrid image stabilization (HD)

■Gain switching

Auto, manual 0 dB-30 dB (1 dB step),

Super gain 33 dB, 36 dB

*When in auto, 3 dB-30 dB (3 dB step) can be selected by setting the AGC limit.

■White balance

ATW, ATW LOCK, AWB A, AWB B, P3200K, P5600K, VAR (2000 K-15000 K)

■Shutter speed

59.94i/59.94p mode: 1/60 sec, 1/100 sec, 1/120 sec, 1/180 sec,

1/250 sec, 1/350 sec, 1/500 sec, 1/750 sec, 1/1000 sec,

1/1500 sec, 1/2000 sec, 1/3000 sec, 1/4000 sec, 1/8000 sec

29.97p mode: 1/30 sec, 1/50 sec, 1/60 sec, 1/100 sec, 1/120 sec,

1/180 sec-1/8000 sec (same as above)

23.98p mode: 1/24 sec, 1/48 sec, 1/50 sec, 1/60 sec, 1/100 sec,

1/120 sec, 1/180 sec-1/8000 sec (same as above)

50.00i/50.00p mode: 1/50 sec, 1/60 sec, 1/100 sec, 1/125 sec,

1/180 sec-1/8000 sec (same as above)

25.00p mode: 1/25 sec, 1/50 sec, 1/60 sec, 1/100 sec, 1/125 sec,

1/180 sec-1/8000 sec (same as above)

■Slow shutter

59.94i/59.94p mode: 1/2 sec, 1/4 sec, 1/8 sec, 1/15 sec, 1/30 sec

29.97p mode: 1/2 sec, 1/4 sec, 1/8 sec, 1/15 sec

23.98p mode: 1/2 sec, 1/3 sec, 1/6 sec, 1/12 sec

50.00i/50.00p mode: 1/2 sec, 1/3 sec, 1/6 sec, 1/12 sec, 1/25 sec

25.00p mode: 1/2 sec, 1/3 sec, 1/6 sec, 1/12 sec

■Synchro scan

59.94i/59.94p mode: 1/60.0 sec-1/285.6 sec

29.97p mode: 1/30.0 sec-1/206.5 sec

23.98p mode: 1/24.0 sec-1/280.1 sec

50.00i/50.00p mode: 1/50.0 sec-1/209.2 sec

25.00p mode: 1/25.0 sec-1/224.3 sec

■Minimum subject illumination

0.2 lx (slow shutter: 1/2 sec, gain: +36 dB)

■Horizontal resolution (Typ, center)

1,300 TV lines (HDMI output 2160/29.97p, 25.00p playback)

1,000 TV lines (HDMI output 1080/59.94p, 50.00p playback)

Input/output section

■Audio input

Built-in microphone (2 CH stereo)

■External terminal

Connection terminal: 20 pin dedicated interface (connected to AG-UMR20)
