Phasemation T-320 MC Transformer For MC Stereo Cartridge MADE IN JAPAN NEW

Features

Adopts a strong chassis structure that follows the design of the T-550

The front panel is a 10mm thick aluminum slant panel, and the chassis and cover are 1.2mm thick steel plates plated with copper to create a strong housing structure. Use stainless steel non-magnetic screws for assembly. This ensures rigidity and reduces magnetostriction.

MC step-up transformer with special split winding structure developed in-house

Adopts a unique special split winding structure for the winding structure. By winding low-loss extra-thick copper wire around a large EI core made of 78% permalloy material with a thickness of 0.2 mm, we have achieved excellent frequency and phase characteristics over a wide band. As a result, we achieved excellent characteristics such as high low-frequency linearity and high efficiency step-up (low loss), and succeeded in reducing phase distortion in the audible band. It achieves detailed spatial expression full of vitality and clearer sound image localization across the entire band.

Equipped with MM/MC switching SW

MM and MC switching SW is placed on the front panel. Improved convenience.

Specification explanation

Optimal cartridge

Output impedance 1.5~40Ω

*The usable cartridge output impedance is 1.5 to 40Ω.

Load impedance 47kΩ

Boost ratio (voltage gain) 26dB

Frequency characteristics 10~50kHz (±2dB)

External dimensions 136 (width) x 92 (height) x 134 (depth) mm

Weight 1.3kg

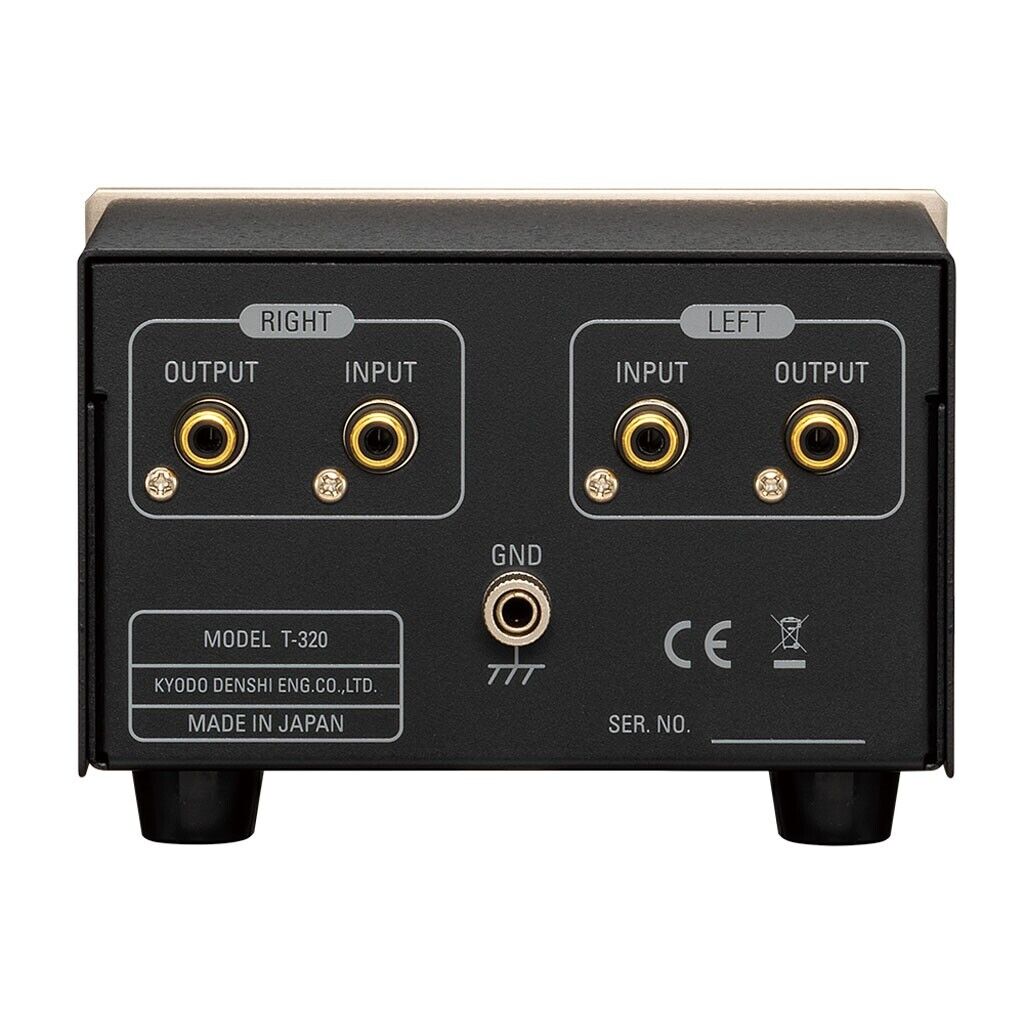

Input/output terminal (RCA) Gold-plated terminal
