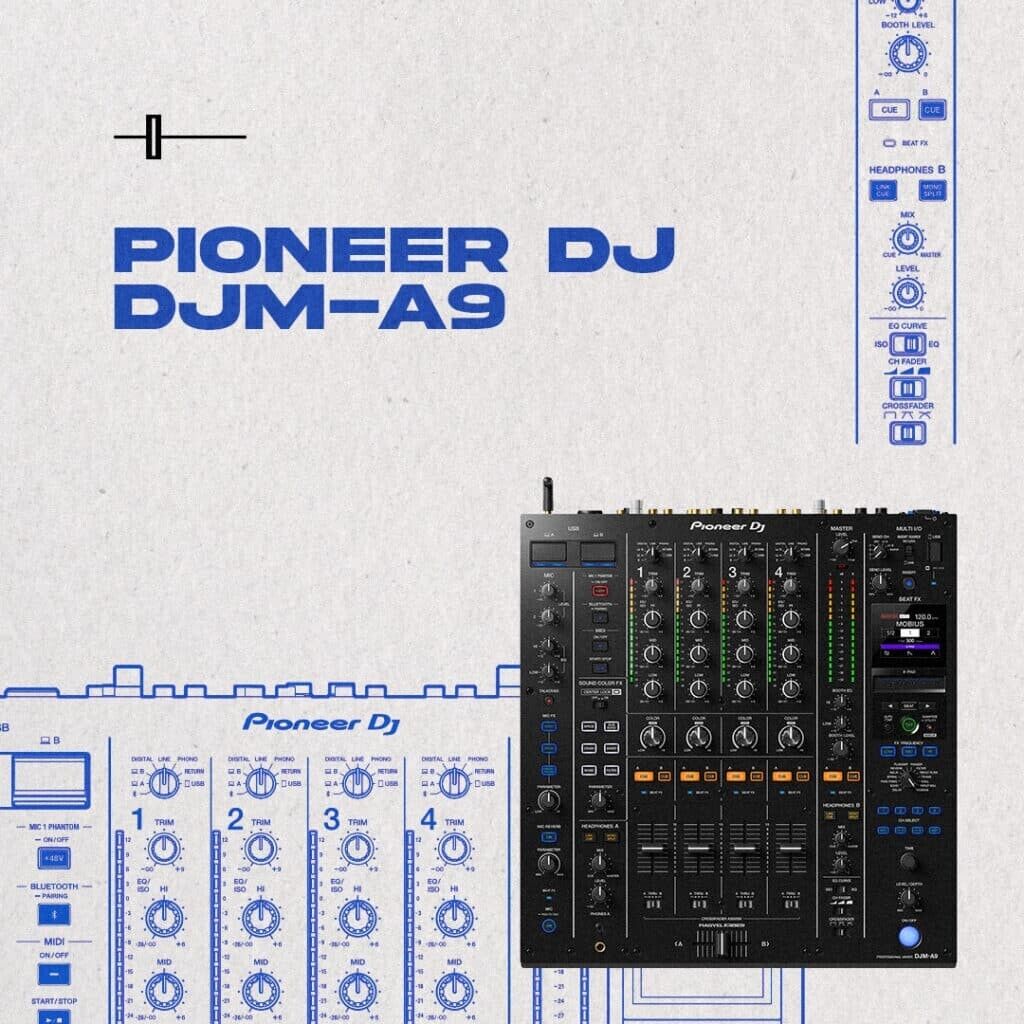

Pioneer DJ DJM-A9 4ch Next-generation professional DJ mixer DJM-900NXS2 100V Pre

Every aspect of its predecessor, the DJM-900NXS2, has been redesigned, resulting in an overwhelmingly clear, crisp and toned sound quality, significantly improved playability, and connectivity with a wide variety of devices, completely breaking the industry standard. It is a new model that raises to the next dimension.

With the DJM-A9, we have made further improvements to the sound quality of the DJM-900NXS2, which has been well received by professionals. Equipped with ESS Technology's 32-bit high-performance A/D converter for the channel input, we have achieved natural and realistic sound quality that allows you to comfortably listen to music of all genres without excessive coloring. In addition, by using the same company's 32-bit high-performance D/A converters for the MASTER and BOOTH output sections, DJ performances can be performed while monitoring sound with the same high resolution as the audience in the booth. In the microphone input section and headphone output section as well, sound quality has been improved by reselecting components and performing optimal tuning.

We thoroughly pursued the playability as a musical instrument. By increasing the space between the EQ knobs, you can now operate them more comfortably. In addition, since the DJM-900NXS2 uses higher-quality channel faders and crossfaders, smoother and more detailed mixes and scratch performances are possible. Furthermore, SOUND COLOR FX is equipped with the world's first CENTER LOCK KNOB. A special mechanism that locks at the center position when the knob is turned allows you to add dynamic and precise effects.

The BEAT FX section has also undergone a major overhaul from previous models to improve the effect performance experience. Equipped with a color display that allows you to accurately grasp the effect status, and by arranging the X-PADs in a horizontal row, you can operate effects more intuitively than ever before.

In addition, you can now select the channel directly with the button, so you can quickly apply effects to the desired channel. A total of 14 types of BEAT FX are built-in, including three newly added types.

The microphone section has also evolved significantly to improve microphone performance during streaming and MC during DJing. This is the first DJ mixer equipped with phantom power, allowing a condenser microphone to be directly connected to this unit. In addition, since it is equipped with three types of microphone effects and REVERB, a wide range of sound processing is possible by combining them.

For connection with PC/Mac, the top panel has two USB terminals of both USB Type-B and Type-C. There is also a Bluetooth input that can be assigned to each channel, so you can add EQ and effect operations on the DJM-A9 to the sound source being played on your mobile device.

This unit can perform DJ performances using rekordbox and Serato DJ Pro. It also supports the DVS function of each software*.

In addition, this unit supports the industry's first PRO DJ LINK management application "Stagehand" for sound engineers. Since the DJM-A9 is equipped with Wi-Fi, you can connect it wirelessly with your iPad by combining it with a wireless LAN router (commercially available). Since the DJM-A9's level meter and operation information can be grasped on the iPad at hand, highly accurate sound settings and quick troubleshooting can be performed remotely.

■Specifications

・MIDI control: Fully assignable MIDI controller

・PRO DJ LINK

・Booth EQ

・P-LOCK FADER CAPS

・Auto standby

・DVS control

rekordbox

Serato DJ Pro (license or subscription required)

・Bluetooth audio input

Wireless method: Bluetooth Ver.5.0

Maximum communication distance: Approximately 10 m in good visibility (communication distance is an estimate.)

Frequency band used: 2.4 GHz band

Modulation method: FHSS (frequency hopping spread spectrum method)

Supported codecs: SBC, AAC

・Wireless LAN

Supported standards: IEEE 802.11 a/b/g/n/ac

Frequency band used: 2.4 GHz / 5 GHz band

·accessories

Power cord

warranty

Quick start guide

Precautions for use

◎ Main specifications

・Maximum external dimensions (W x D x H)

407.4 x 107.9 x 458.3mm

407.4 x 140.7 x 458.3 mm (with radio antenna upright)

・Sampling rate: 96 kHz

・Body mass: 10.2 kg

・CH input A/D converter: 32 bit

・MASTER, BOOTH, REC, SEND D/A converter: 32 bit

・S/N ratio: LINE: 105 dB

・S/N ratio: PHONO: 88 dB

・S/N ratio: MIC: 79 dB

・Total harmonic distortion: 0.005% or less (LINE)

◎Channel

・EQ/ISO: 3 bands

・EQ Range: Switchable 3-band EQ: -26 dB ~ +6 dB dB

◎Performance control

・Number of channels: 4

・MULTI I/O: USB (Type A)

・SOUND COLOR FX

Space

Dub Echo

Sweep

Noise

Crush

Filter

・BEAT FX

Delay

Echo

Ping Pong

Spiral

Helix

Reverb

Flanger

Phaser

Filter

Triplet Filter

Trans

roll

Triplet Roll

Mobius

・Color display

・X-PAD

・rekordbox QUANTIZE

◎CROSS FADER

・Cross fader structure: MAGVEL CROSS FADER

・CURVE adjustment

・Number of curve characteristics: 3

◎MIC

・Phantom power

・Microphone effect

Echo

Pitch

Megaphone

Reverb

・PUSH TO TALK function

・MIC connection

XLR / jack combined use

1/4-inch TRS JACK

・MIC EQ: 2 bands

・MIC EQ Range: -12dB ~ +12dB

・TALKOVER: Dedicated button

・TALKOVER ATT

◎Terminal

・Input terminal:

4 DIGITAL (Coaxial)

4 LINE (RCA)

4 PHONO (RCA)

・SEND/RETURN:

1 SEND (1/4 inch TS jack)

1 RETURN (1/4 inch TS jack)

・LAN: 1

・Output terminal:

1 MASTER (XLR, RCA)

1 BOOTH (1/4 inch TRS Jack)

2 HEADPHONE MONITOR (1/4 inch Jack, mini-jack)

1 REC OUT (RCA)

1 DIGITAL (Coaxial)

·USB:

1 USB A port

2 USB B connector

2 USB C port (PC/Mac connection and power supply x 1, power supply only x 1)

*Please check the manufacturer's website or manufacturer's support for the latest operating environment of the DJ software before purchasing.
