Roland Gaia 2 37-key Virtual Analog Wavetable Synthesizer NEW

●Keyboard

37 keys

●Sound source

GAIA-2 sound source

Pre-installed model expansion SH-101

Other model expansions (Roland Cloud sold separately)

●Maximum polyphony

22 sounds (1 sound includes 3 oscillators)

*The maximum polyphony varies depending on the tone settings and model expansion used.

●Number of tones

Preset tone: 256

User tone: 512

●Oscillator

Oscillator 1 (wavetable): 63 waveforms

Modulation method: Wave position, phase modulation (P-MOD), shaping modulation (S-MOD)

Oscillator 2/3 (classic waveform): sine wave, triangle wave, sawtooth wave, pulse wave, supersaw, and 5 noise waveforms

Modulation method: Shape, ring modulation, oscillator sync, cross modulation 1, cross modulation 2

Envelope: attack, decay

Envelope targets: pitch, oscillator 1 position, oscillator 2 shape, oscillator 3 shape, P-MOD X, P-MOD Y, S-MOD depth, S-MOD drive

●Filter

Filter type: LPF, BPF, HPF

Filter slope: -12dB/Oct, -18dB/Oct, -24dB/Oct

Envelope: attack, decay, sustain, release

filter drive

●Amplifier

Envelope: attack, decay, sustain, release

●LFO

2 systems, 5 waveforms + programmable step waveform

LFO assignment: Up to 4 knob or slider parameters can be assigned for each system (excluding click dial)

●Effect

Multi-effects: 53 types

Reverb/Delay: 7 types

Chorus: 3 types (total 9 modes)

*The connection order of the above effects can be changed.

master EQ

master compressor

●Other functions

portamento

unison

code memory

●Step sequencer

64 steps: 8 types of notes and 4 types of control information can be recorded per step

Recording method: Real time/Step/TR-REC

Probability

Random pattern generation function

●Arpeggiator

Modes: Up, Down, Up & Down, Random, Note Order

Scale: 16 types

●Motional pad

2D editing of P-MOD X/Y or S-MOD Depth/Drive

Parameters of knobs or sliders on the panel (excluding click dials) can be assigned to the X and Y axes.

Motion recording and playback function

Pointer operation function on menu screen

●Other controllers

pitch bend wheel

modulation wheel

●Display

Organic EL display 128 x 64 dots

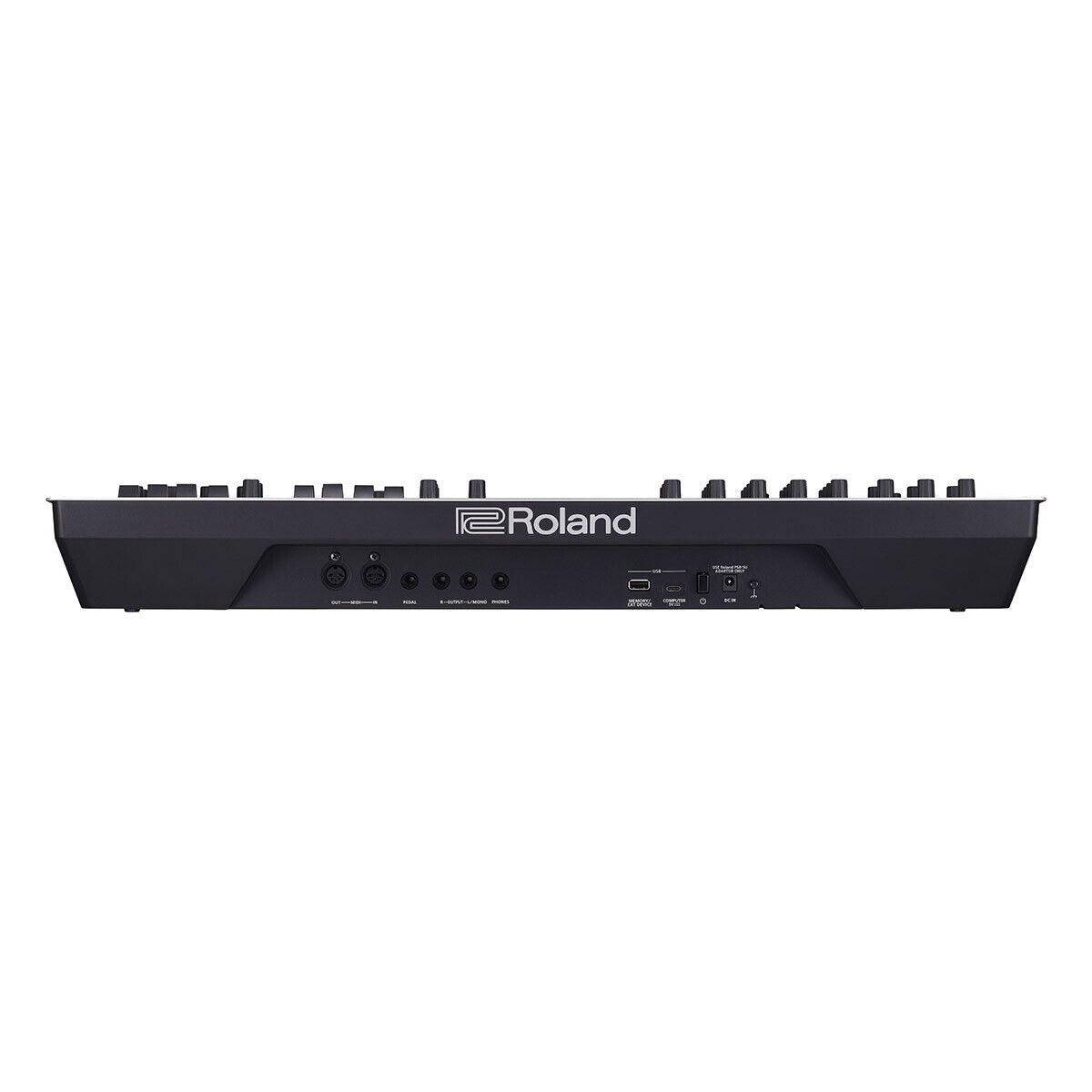

●Connection terminal

PHONES jack: Stereo mini type (front), stereo standard type (rear)

OUTPUT terminal (L/MONO, R): Standard type

PEDAL terminal: Stereo standard type (also used as hold pedal/control pedal)

MIDI (IN, OUT) terminal

USB COMPUTER terminal: USB Type-C (R) (class compliant audio, MIDI communication/Roland driver audio, MIDI communication)

USB MEMORY/EXT DEVICE terminal: Type-A (storage, MIDI)

●Power supply

AC adapter (DC IN terminal)

USB bus power supply (USB Type-C (R) terminal)

*Power supply from an external USB Type-A terminal is not supported.

●Current consumption

600mA (AC adapter)

1,800mA (USB bus power)

●Storage media

USB memory (commercially available)

●External dimensions

655 (W) x 336 (D) x 92 (H) mm

●Mass

4.4kg

●Accessories

Startup guide

"Safety Precautions" flyer

AC adapter (PSB-5U)

Power cord

●Sold separately

Pedal switch: DP series

Expression pedal: EV-5

Wireless adapter: WC-1

Keyboard bag: CB-B37
