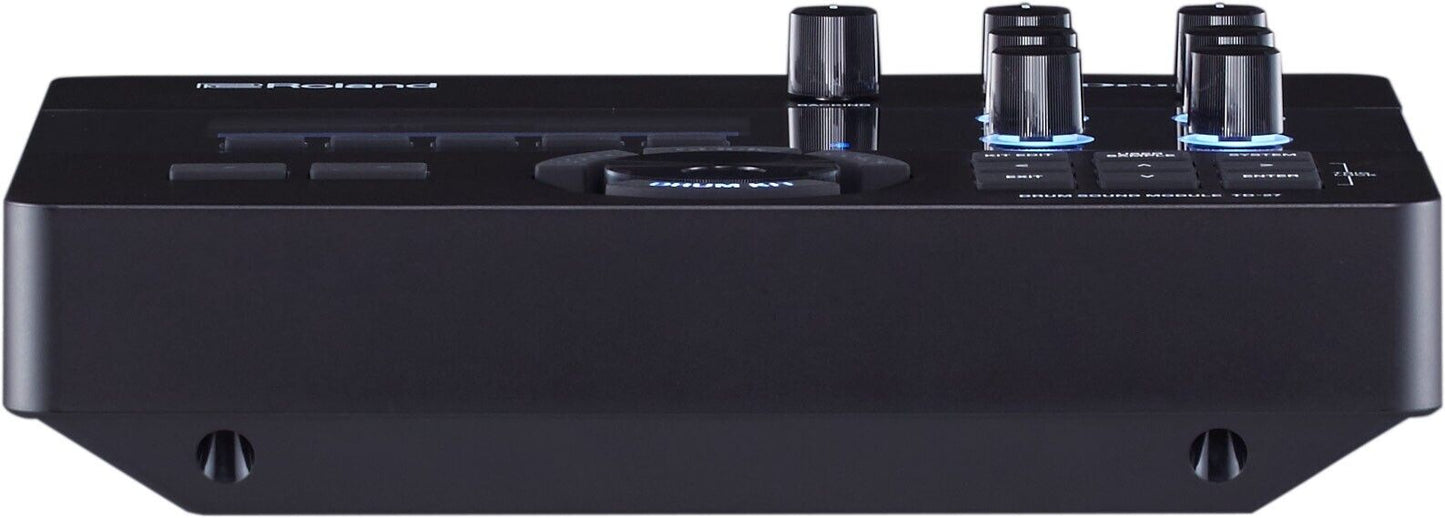

Roland TD-27 Drum Sound Module Prismatic Sound Modeling Technology NEW

■ Number of drum kits: 100 (preset: 55)

■ Number of tones: 728

■ User samples Number of user samples: maximum 500 (including user samples at product shipment), sound length (total): 24 minutes in monaural, 12 minutes in stereo, file formats that can be imported: WAV (44.1kHz, 16/24 bit)

Effects: Pad Compressor (for each pad), Pad Equalizer (for each pad), Overhead Mic Simulator, Room/Reverb, Multi Effects: 3 systems/30 types, Master Compressor, Master Equalizer

■ Bluetooth compatible standard = Bluetooth standard Ver 4.2, compatible profile = A2DP (audio) GATT (MIDI over Bluetooth Low Energy), compatible codec = SBC (supports content protection by SCMS-T method)

■ Song player (SD card): File format: WAV (44.1 kHz, 16/24 bit), MP3 * Audio files must be saved on the SD card.

■ Recorder: Recording method = real time, maximum recording time = 60 minutes (temporary recording: 3 minutes)

* An SD card is required for recording. If you don't have an SD card, you can temporarily record about 3 minutes, but you can't save it to the main unit.

　File format = WAV (44.1 kHz, 16 bits)

■ Display: Graphic LCD 256 x 80 dots ● External memory: SD card (SDHC compatible)

■ Connection terminal

TRIGGER INPUT jack x 1 (kick, snare, tom 1, tom 2, tom 3, hi-hat, crash 1, ride, ride bell, hi-hat control): 25-pin D-sub type * Exclusive use with pads that support digital connection .

　TRIGGER IN terminal x 4 (Crash 2, AUX 1, AUX 2, AUX 3): TRS standard type　*Exclusive use with pads that support digital connection.

　DIGITAL TRIGGER IN terminal x 3: USB A type, MASTER OUT terminal x 2 (L/MONO, R): standard type, DIRECT OUT terminal x 2: (MONO) standard type,

　PHONES terminal x 1: stereo standard type, MIX IN terminal x 1: stereo standard type, MIDI terminal (IN, OUT/THRU), USB COMPUTER terminal x 1: USB B type,

　FOOT SW terminal x 1: TRS standard type, DC IN terminal

■ USB COMPUTER terminal speed = Hi-speed USB, driver mode = generic/vendor, compatible communication = USB-MIDI/USB-Audio

* To use USB audio, it is necessary to change to vendor mode and use the vendor driver.

■ USB audio sampling frequency (original) = 44.1 kHz, sampling frequency (using sampling rate converter) = 96 kHz, 48 kHz, recording = 28 channels, playback = 4 channels

■Power supply: AC adapter (DC9V) ●Current consumption: 770mA　

Accessories: Quick start (including warranty card), AC adapter, dedicated connection cable, user registration card, "Safety Precautions" leaflet, sound source mounting plate, thumbscrew (M5 x 10) x 2 * SD card Not included in the product.

■ Separately sold products

　Pad: PD series, PDX series, BT series

　Cymbals: CY series

Kick: KD series, KT series

Hi-hat: VH-13, VH-11, VH-10

　Hi-hat control pedal: FD series

　Acoustic drum trigger: RT series

　Foot switch: BOSS FS-5U, FS-6

　Personal drum monitor: PM series

　Noise Eater: NE series

■ External dimensions: 238 (width) x 204 (depth) x 79 (height) mm　

■ Mass (excluding AC adapter): 1.1kg
