Main specifications 100 or more drum kits (preset: 50 or more) 900 or more tones Effect pad / compressor: per pad

Pad equalizer: For each pad

Overhead mic simulator

Room / reverb

Multi-effect: 3 systems, 38 types

Master compressor

Master equalizer user sample Number of user samples: Up to 500 (including user sample at the time of product shipment)

Sound length (total): monaural 24 minutes, stereo 12 minutes

Importable file format: WAV (44.1kHz, 16 / 24bit) Song player (SD card) Audio file: WAV (44.1kHz, 16 / 24bit), MP3 recorder Recording method: Real time

Maximum number of stored sounds: Approximately 40,000 sounds

Export file format: WAV (44.1kHz, 16-bit), SMF display graphic LCD 256 x 80 dots

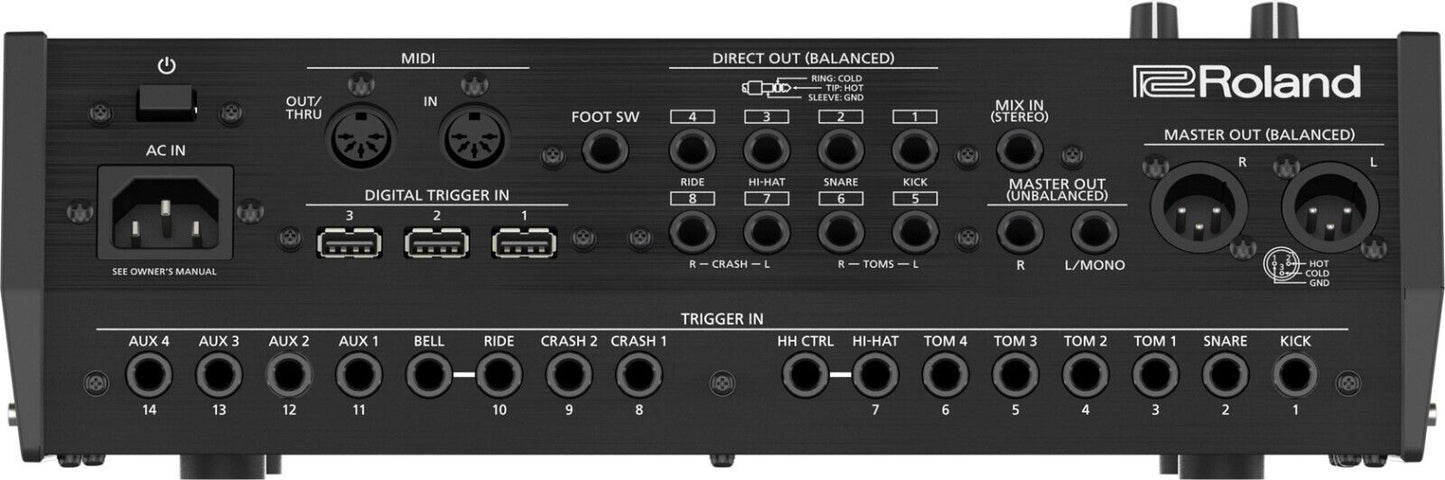

TRIGGER ACTIVITY indicator (LED) Fader 8 (KICK, SNARE, TOMS, HI-HAT, CRASH, RIDE, AUX, AMBIENCE) External memory SD card (SDHC compatible) Connection terminal TRIGGER IN terminal x 14: TRS standard type (digital connection compatible) Exclusive use with pad)

DIGITAL TRIGGER IN terminal x 3: USB A type

MASTER OUT (UNBALANCED) terminal (L / MONO, R): Standard type

MASTER OUT (BALANCED) terminal (L, R): XLR type (balanced)

DIRECT OUT (BALANCED) terminal x 8: TRS standard type (balanced)

PHONES terminal x 2: Stereo standard type, stereo mini type

MIX IN terminal x 2: Stereo standard type, stereo mini type

MIDI (IN, OUT / THRU) terminal

USB COMPUTER terminal: USB B type (USB Hi-Speed AUDIO / MIDI, mass storage)

FOOT SW terminal: TRS standard type

AC IN terminal Number of USB audio recording / playback channels Sampling frequency (original): 44.1kHz

Sampling frequency (using sampling rate converter): 96kHz, 48kHz

Recording: 32 channels

Playback: 32 channels

* To use USB audio, you need to change to vendor mode and use the vendor driver.

How to install a ferrite core Flyer

Power cord

Ferrite core (including mounting band) Optional pad: PD series, PDX series, BT-1

Cymbals: CY series

Kick: KD series, KT series

Hi-hat: VH series

Hi-hat control pedal: FD series

Acoustic Drum Trigger: RT Series

Foot switch: BOSS FS-5U, FS-6

Personal Drum Monitor: PM Series External Dimensions Width 330 mm Depth 255 mm Height 118 mm Mass 3.3 kg
