Roland TD-50X PD-140DS CY-18DR VH-14D 4 sets V-Drums Digital Pad Package Express

Roland TD-50X PD-140DS CY-18DR VH-14D 4 sets V-Drums Digital Pad Package Express

$3,900.00 USD
$3,900.00 USD
Sale Sold out
Shipping calculated at checkout.
Condition: New With Bag: No
Number of Pieces: N/A Custom Bundle: No
Input/Output Ports: MIDI (DIN) In,MIDI (DIN) Out,USB In,USB Out Items Included: V Pad for Snare, Ride Cymbal
Item Diameter: N/A Analog/Digital: Digital
Material: Metal MPN: N/A
California Prop 65 Warning: N/A Brand: Roland
Type: TD-50X PD-140DS CY-18DR VH-14D Model: N/A
Features: V-Drums Supernatural Sound Engine Number of Pads: N/A
Country/Region of Manufacture: Unknown Experience Level: N/A

Description

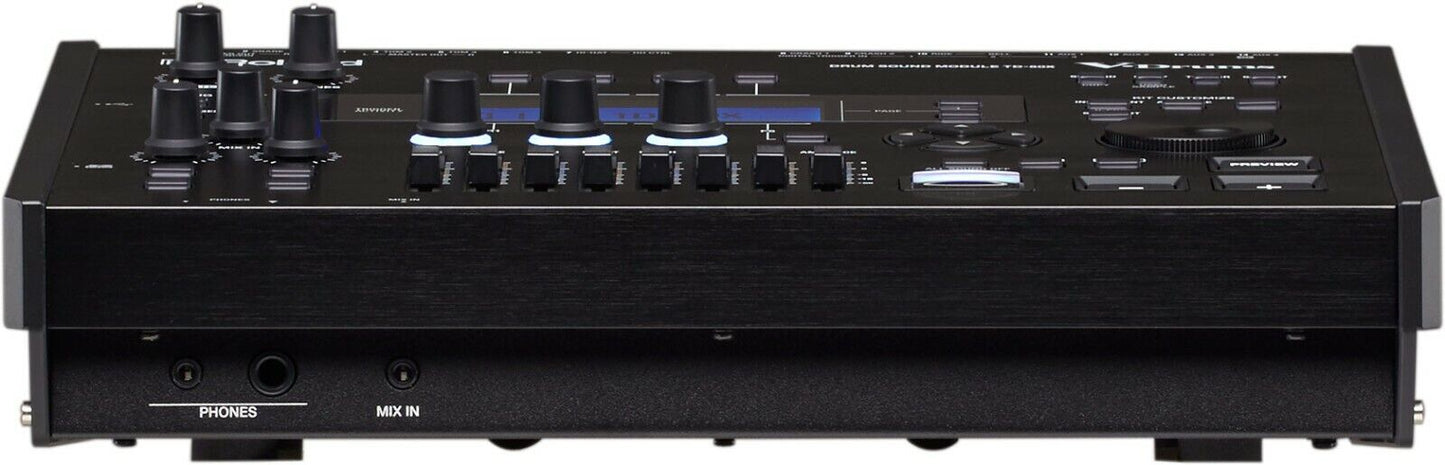

TD-50X
■ Number of drum kits: 100 (preset: 50 or more)
■ Number of tones: 900 or more
■ Effects
Pad compressor: For each pad
Pad equalizer: For each pad
Overhead microphone simulator
Room / reverb
Multi-effect: 3 systems, 38 types
Master compressor
Master equalizer
■ User sample
Number of user samples: Up to 500 (including user samples at the time of product shipment)
Sound length (total): monaural 24 minutes, stereo 12 minutes
File format that can be imported: WAV (44.1kHz, 16/24 bit)
■ Song player (SD card)
Audio file: WAV (44.1kHz, 16/24 bit), MP3
■ Recorder
Recording method: Real time
Maximum number of stored sounds: Approximately 40,000 sounds
Export file format: WAV (44.1kHz, 16 bits), SMF
■ Display
Graphic LCD 256 x 80 dots
TRIGGER ACTIVITY indicator (LED)
■ Fader: 8 (KICK, SNARE, TOMS, HI-HAT, CRASH, RIDE, AUX, AMBIENCE)
■ External memory: SD card (SDHC compatible)
■ Number of USB audio recording / playback channels
Sampling frequency (original): 44.1kHz
Sampling frequency (using sampling rate converter): 96kHz, 48kHz
Recording: 32 channels
Playback: 32 channels
* To use USB audio, you need to change to vendor mode and use the vendor driver.
* When using Windows, except for ASIO, there are 10 recording channels and 4 playback channels.

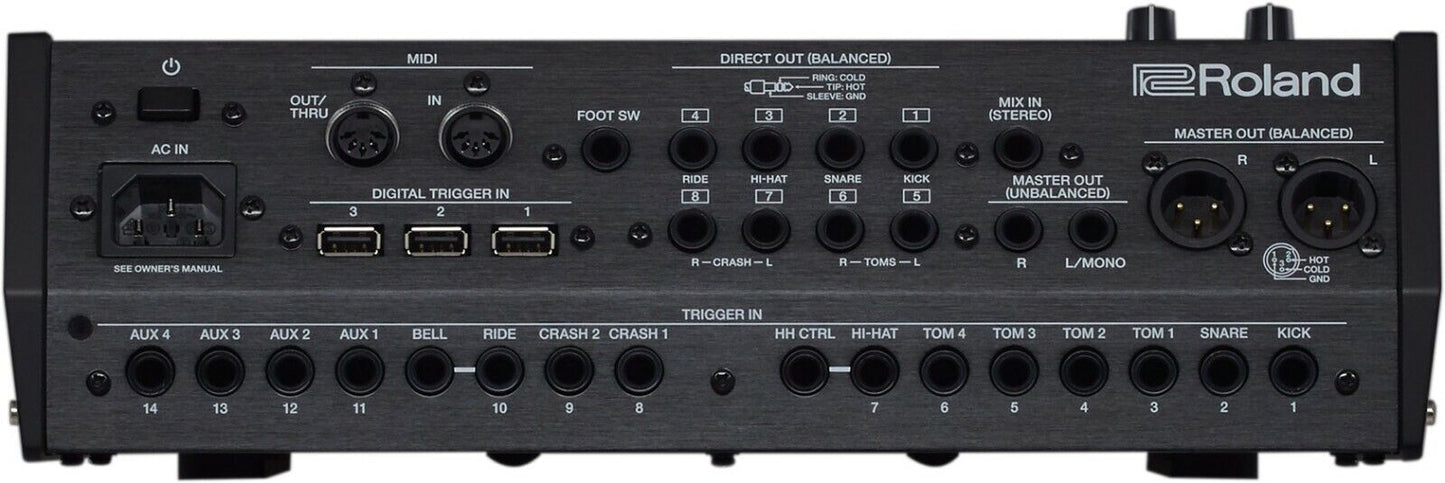

■ Connection terminal
TRIGGER IN terminal x 14: TRS standard type (exclusive use with digital connection compatible pad)
DIGITAL TRIGGER IN terminal x 3: USB A type
MASTER OUT (UNBALANCED) terminal (L / MONO, R): Standard type
MASTER OUT (BALANCED) terminal (L, R): XLR type (balanced)
DIRECT OUT (BALANCED) terminal x 8: TRS standard type (balanced)
PHONES terminal x 2: Stereo standard type, stereo mini type
MIX IN terminal x 2: Stereo standard type, stereo mini type
MIDI (IN, OUT / THRU) terminal
USB COMPUTER terminal: USB B type (USB Hi-Speed ​​AUDIO / MIDI, mass storage)
FOOT SW terminal: TRS standard type
AC IN terminal
■ Power supply: AC100V (50 / 60Hz)
■ Power consumption: 30W
■ External dimensions: 330 (width) x 255 (depth) x 118 (height) mm
■ Mass: 3.3kg
■ Accessories: Quick start (including warranty card), leaflet on how to install the ferrite core, power cord, ferrite core (including mounting band)

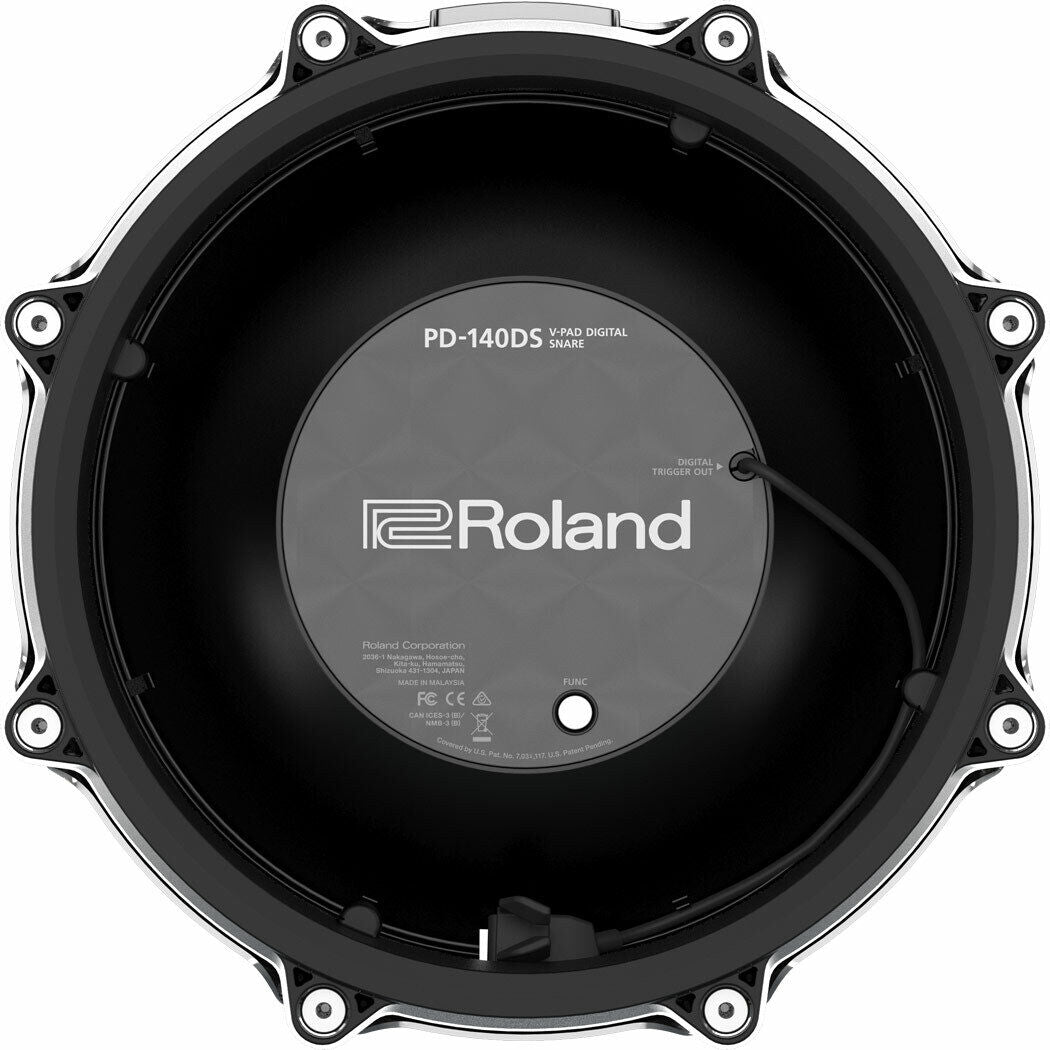

PD-140DS
◁EPad size: 14 inches
◁EShell depth: 4.3 inches
◁ENumber of tensions: 8
◁EHead: 3-ply mesh head (middle layer floating structure)
◁ECorresponding playing method (trigger)
Head shot (multi-step hitting position detection function, wide dynamic range)
Rim shot (depth detection function, wide dynamic range)
Cross stick (automatic switching)
Brush sweep
◁ESensor system
Multi-element sensor system
Head sensor
Position sensor x 3
Rim sensor
Cross stick sensor x 3
Built-in sensing processor
◁ECorresponding covering size
98 (width) x 1,060 (length) mm
Thickness: 1 mm or less
◁EConnection terminal: DIGITAL TRIGGER OUT terminal
(Compatible with Roland drum sound sources equipped with the DIGITAL TRIGGER IN terminal)
◁EPower supply: Supply from DIGITAL TRIGGER IN terminal (DC5V)
◁ECurrent consumption: 90mA
◁EAccessories
instruction manual
Connection cable
Drum key
Warranty
◁EExternal dimensions
Width 380 mm x Depth 380 mm x Height 160 mm
Mass: 4.9 kg

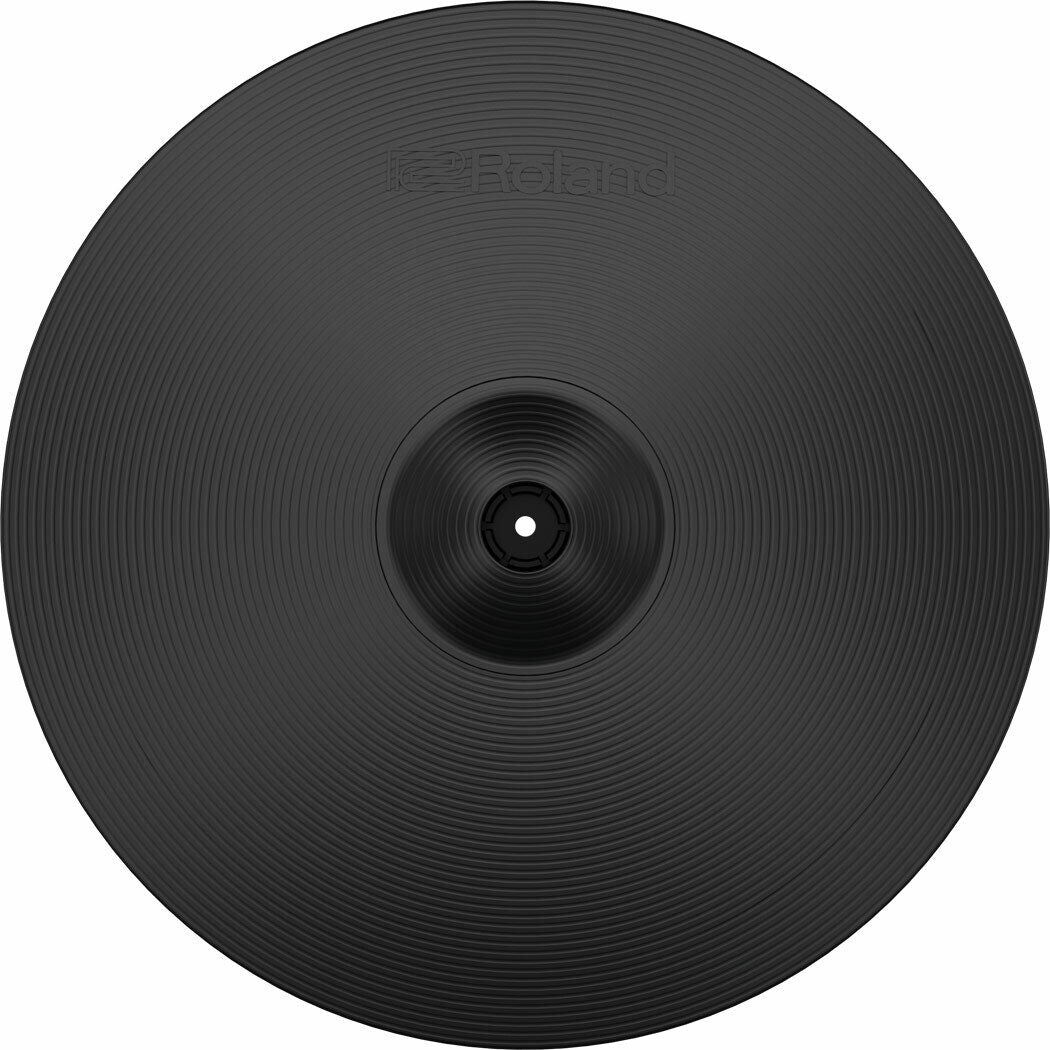

CY-18DR

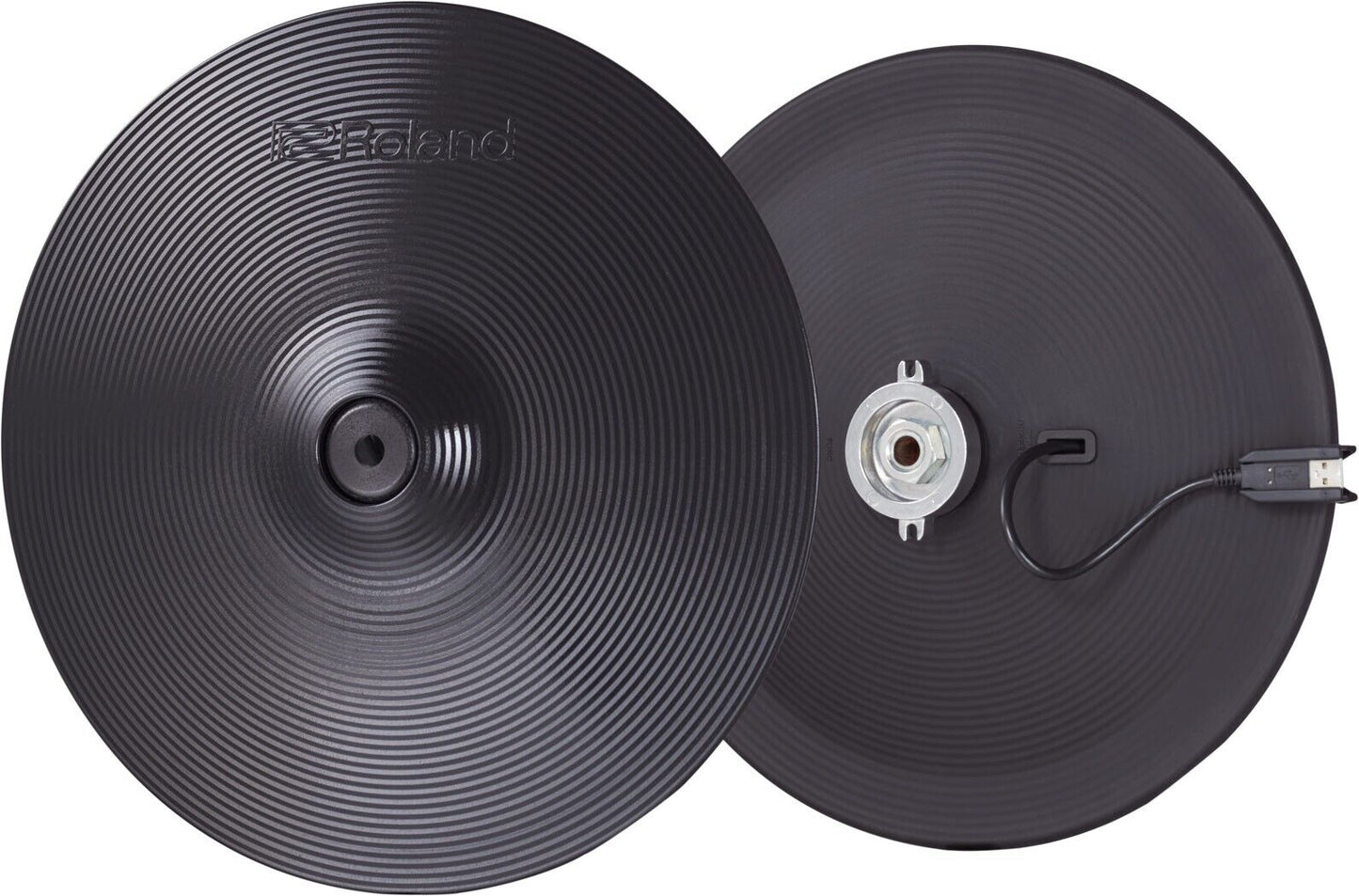

VH-14D
