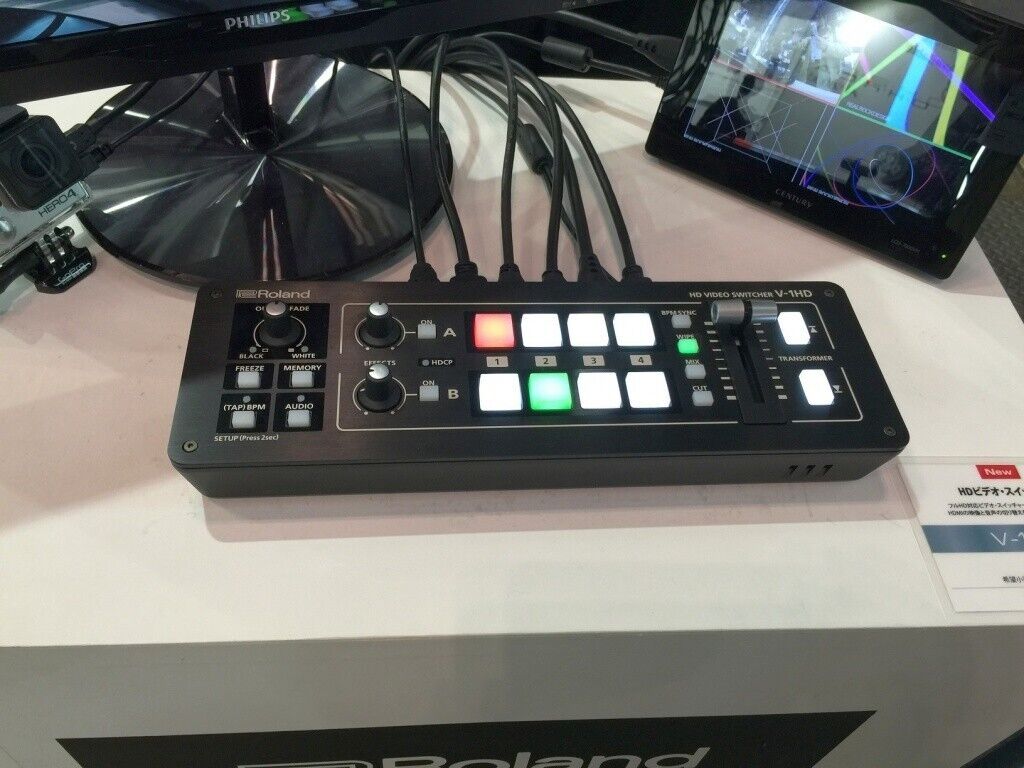

Roland V-1HD STR Video Switcher Web Streaming Bundle 4 HDMI In 2 HDMI Out NEW
Roland V-1HD STR Video Switcher Web Streaming Bundle 4 HDMI In 2 HDMI Out NEW
Regular price
$519.00 USD
Regular price
Sale price
$519.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
| Condition: New | Video Outputs:: 2 x HDMI |
| Audio Outputs:: 2 x 1/4" TRS | Effects:: Visual Effects, Transitions, Delay, Reverb, EQ |
| Height:: 2.56" | Headphones:: 1 x 1/8" (stereo) |
| Other I/O:: 2 x DB-9 (remote control, TALLY) | MPN: V-1HD STR |
| Weight:: 3.08 lbs. | Brand: Roland |
| USB:: 1 x Type B, 1 x Type A | Power Source:: External AC Adapter (included) |
| Type: HD Video Switcher with Encoder | Video Inputs:: 4 x HDMI |
| Channels:: 1/4/1900 12:00:00 AM | Width:: 12.5" |
| Model: V-1HD+ STR | Depth:: 4.81" |
| Country/Region of Manufacture: Unknown | Audio Inputs:: 1 x Dual RCA Stereo,2 x XLR,1 x 1/8" (stereo mic),1 x 1/8" (stereo encoder) |
| UPC: 761294224403 |
Description
■ Full HD compatible
■ Half A4 size
■HDMI 4 input 2 output
■Simple and intuitive operation
■ Various effects
■ Equipped with an audio mixer 12ch
■PC application V-1HD RCS
■ Video processing: 4:2:2 (Y/Pb/Pr), 8-bit
■ Input terminal: HDMI INPUT 1-4: Type A (19 pin) x 4 * HDCP compatible
■ Output terminal:
HDMI OUTPUT: Type A (19 pin)
HDMI PREVIEW: Type A (19 pin)
*HDCP compatible
■ Input video format:
HDMI: 720/59.94p, 720/50p (when the FORMAT selector switch is set to 720p)
HDMI: 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p (when the FORMAT switch is set to 1080i or 1080p)
*Interlaced video is converted to progressive by internal processing.
* Select the frame rate with the SETUP parameter. (59.94 or 50)
■ Output video format:
HDMI: 720/59.94p, 720/50p (when the FORMAT selector switch is set to 720p)
HDMI: 1080/59.94i, 1080/50i (when the FORMAT selector switch is set to 1080i)
HDMI: 1080/59.94p, 1080/50p (when the FORMAT selector switch is set to 1080p)
* Select the frame rate with the SETUP parameter. (59.94 or 50)
■ Video effects:
Switching: Cut, Mix (Dissolve/FAM/NAM/Mosaic), Wipe (30 types), Transformer (11 types)
Effects: Negative, Emboss, Colorize, Color Pass, Posterize, Silhouette, Monocolor, Find Edge, Flip, Luminance Key (WHITE) @, Luminance Key (BLACK) @, Chroma Key (GREEN) @, Chroma Key (BLUE) @, PinP (1/4) @, PinP (1/2) @, SPLIT (H-STRETCH) @, SPLIT (H-CENTER) @, SPLIT (V-STRETCH) @, SPLIT (V-CENTER) @
* The @ symbol applies a common effect to the A bus and B bus.
■ Audio processing Sampling rate: 24 bits/48 kHz
■ Input terminal
Digital: HDMI INPUT 1-4 (HDMI Type A 19 pin) x 4
Analog: AUDIO IN (RCA pin type)
MIC (stereo mini type, plug-in power compatible)
■ Output terminal:
Digital: HDMI OUTPUT (HDMI Type A 19 pin)
HDMI PREVIEW (HDMI Type A 19 pin)
Analog: AUDIO OUT (RCA pin type)
PHONES (stereo mini type)
■ Standard input level:
AUDIO IN: -10dBu (maximum input level: +8dBu)
MIC: -51 to -13dBu (maximum input level: -1dBu)
■ Input impedance:
AUDIO IN: 15kΩ,
MIC: 10kΩ
■ Standard output level
AUDIO OUT: -10dBu (maximum output level: +8dBu)
PHONES: 72mW + 72mW (at 32Ω load)
■ Output impedance
AUDIO OUT: 1kΩ
PHONES: 10Ω
■ Audio effects EQ, delay, compressor, HPF, gate, reverb, mastering effects
■Other terminals USB: B Type (for remote control by connecting to a PC), MIDI: IN terminal, OUT/THRU terminal
■Other functions: Memory (8), freeze (freeze input video), BPM SYNC (automatic switching synchronized with tempo)
Output fade (white/black)
Power supply: AC adapter
Current consumption: 1.5A Power consumption 18W
Accessories: Instruction manual, AC adapter, power cord, cord hook, warranty card, Roland user registration card
* 0dBu = 0.775Vrm
■ Size: Width (W) 313 mm Depth (D) 102 mm Height (H) 59 mm
■ Mass: 1.2 (body only) kg
