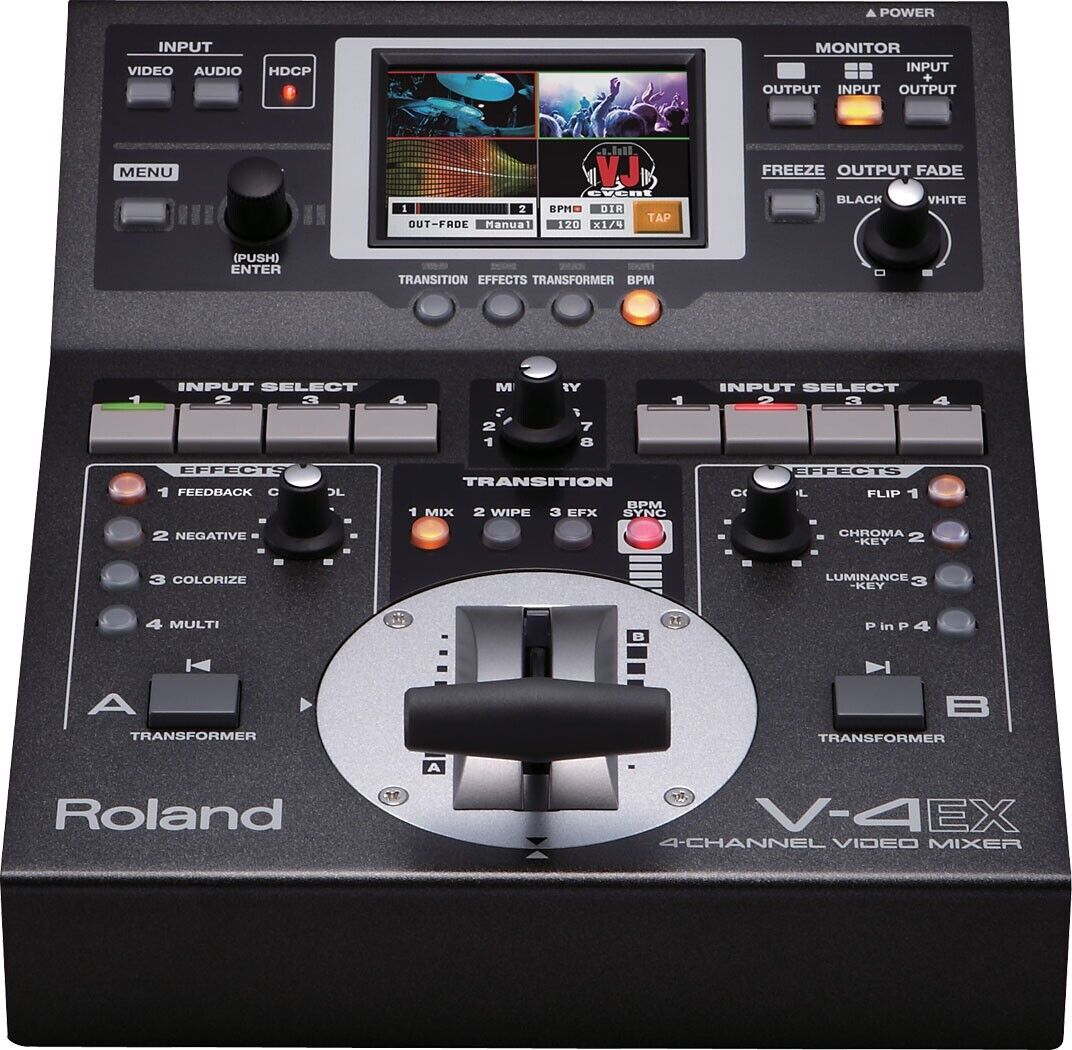

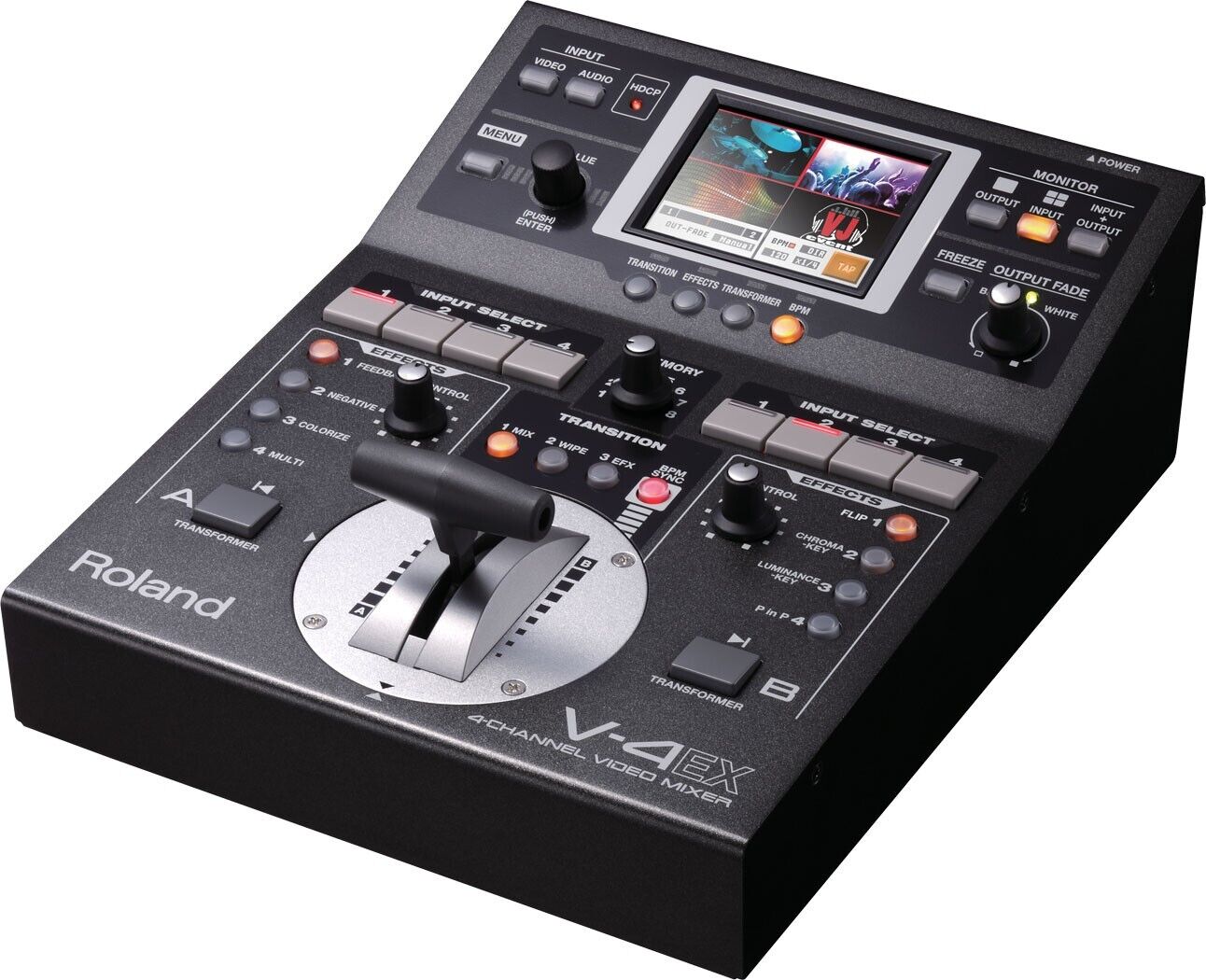

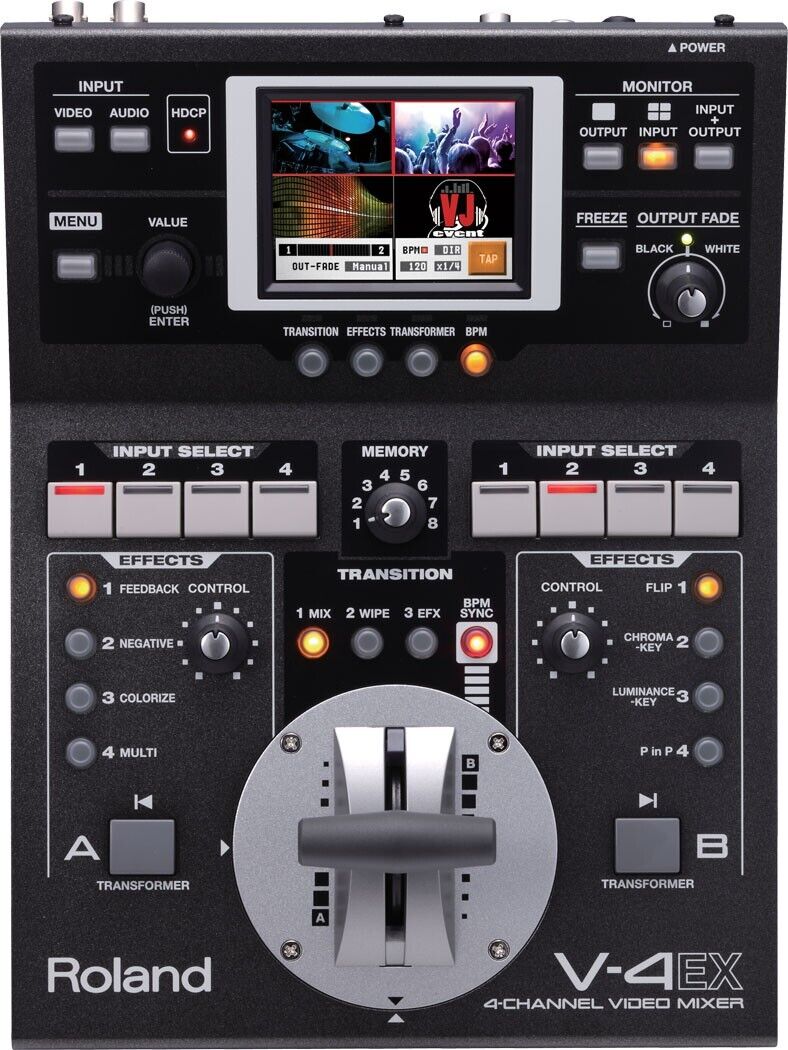

Roland V-4EX 4-Channel Digital Video Mixer Effects Touch Control OPEN BOX

Roland V-4EX 4-Channel Digital Video Mixer Effects Touch Control OPEN BOX

Regular price $1,250.00 USD
Regular price Sale price $1,250.00 USD
Sale Sold out
Shipping calculated at checkout.
Condition: Open box Unit Type: Unit
Manufacturer Warranty: 1 Month Country/Region of Manufacture: Japan
MPN: V4EX Number of Inputs: 1
Brand: Roland Special Effects: Chroma Key
Form Factor: Internal Board/Module Output Interfaces: Composite/RCA,HDMI Embedded,HDMI
Input Interfaces: HDMI Embedded,SDI,HDMI,S-Video Features: Multiviewer,T-Bar
Number of Outputs: 1 Type: Digital Video Mixer
Model: V-4EX

Description

video signal

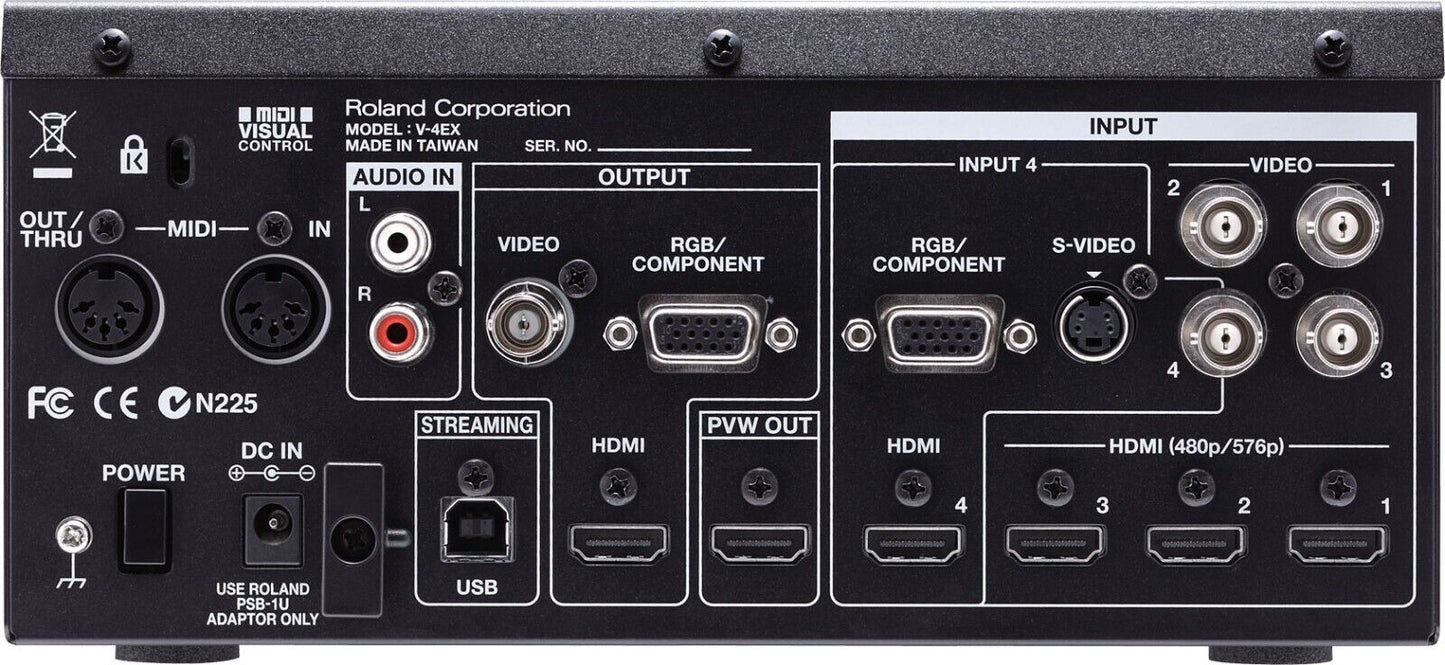

■ Input terminal
 HDMI: Type A (19 pins) x 4 (INPUT 1-4)
 RGB/component: 15-pin mini D-sub type x 1 (INPUT 4)
Composite: BNC type x 4 (INPUT 1-4)
 S-Video: 4-pin mini-DIN type x 1 (INPUT 4)
■ Output
 HDMI: Type A (19 pins) x 1 (OUTPUT)
 RGB/component: 15-pin mini D-sub type x 1 (OUTPUT)
 Composite: BNC type x 1 (OUTPUT)
Preview output
 HDMI: Type A (19 pin) x 1 (PVW OUT)
■ Video format
Input format
HDMI video input (INPUT 1-3): 480/59.94p (when set to NTSC), 576/50p (when set to PAL)
HDMI/component video input (INPUT 4): 480/59.94i, 480/59.94p, 720/59.94p, 1080/59.94i, 1080/59.94p (when set to NTSC), 576/50i, 576/50p, 720/ 50p, 1080/50i, 1080/50p (when PAL is set)
HDMI audio input (INPUT 1-4): Linear PCM, 24-bit/48kHz, 2ch
RGB video input (INPUT 4): 640 x 480/60Hz, 800 x 600/60Hz, 1024 x 768/60Hz, 1280 x 768/60Hz, 1280 x 1024/60Hz, 1366 x 768/60Hz, 1400 x 1050/60Hz, 1600×1200/60Hz, 1920×1200/60Hz
* The refresh rate is the maximum value for each resolution.
* VESA DMT Version 1.0 Revision 11 compliant
*1920×1200/60Hz: Reduced blanking
Composite video input (INPUT 1-4): NTSC, PAL
S-video video input (INPUT 4): NTSC, PAL

Output format
HDMI and RGB/component video output (OUTPUT): 480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94 p, 1080/50p
640×480, 800×600, 1024×768, 1280×768, 1280×1024, 1366×768, 1400×1050, 1600×1200, 1920×1200
* HDMI and RGB/Component are always the same format. If you select an interlace format, the component signal will be output from the RGB/Component connector. If you select anything other than interlaced, the RGB signal will be output from the RGB/Component connector.
* The refresh rate of RGB format is 60Hz when NTSC is set, 50Hz at 1600x1200 and 1920x1200 when PAL is set, and 75Hz otherwise.
* RGB format: VESA DMT Version 1.0 Revision 11 compliant
*1920×1200/60Hz: Reduced blanking
HDMI audio output (OUTPUT): Linear PCM, 24-bit/48kHz, 2ch
Composite video output: NTSC, PAL
Preview video output (PVW OUT): 480/59.94p (when set to NTSC), 576/50p (when set to PAL)
Preview audio output (PVW OUT): Linear PCM, 24bit/48kHz, 2ch
USB video output: 720 x 480 (when set to NTSC), 720 x 576 (when set to PAL) Motion JPEG
USB audio output: Linear PCM, 16-bit/48kHz, 2ch

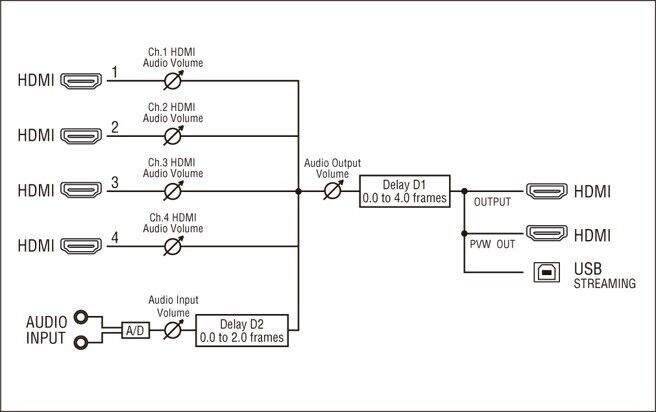

audio signal
■ Input terminal
 RCA pin type x 1 pair (AUDIO IN)
■Other terminals
MIDI: 5-pin DIN type x 2 (IN, OUT/THRU)
USB: B type x 1 (for streaming and remote control)

■ Accessories: AC adapter, power cord, RCA-BNC conversion plug x 2

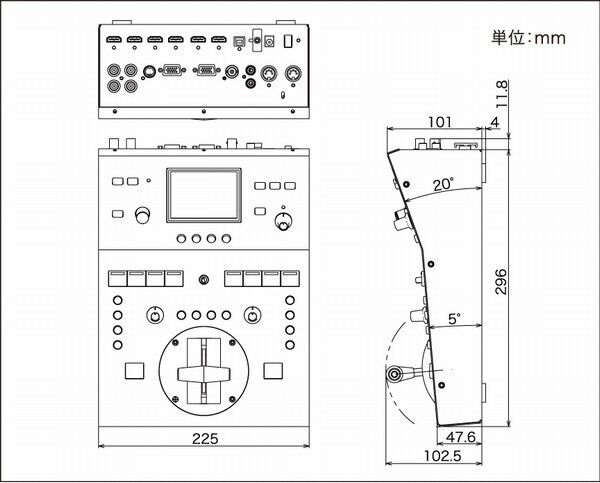

■ Dimensions and weight: 225Wmm x 296Dmm x 105Hmm, 2.6kg
