Roland V71 Sound Module V-Drums 7 Series NEW

The core of the V-Drums 7 series is the V71.

The V-Drums 7 series reconstructs Roland's leading electronic drum platform with all-new sounds, expanded instruments, and enhanced editing functions. The V71 sound module is the heart of the V-Drums 7 series drum kits, and its main features are a sound library created in collaboration with Drum Workshop and compatibility with PC-based DW Soundworks drum software. This sound module also maximizes the performance of the latest pads, including the digital snare PD-14DSX. In addition, wireless connection to the Roland Cloud Connect smartphone app allows you to easily change the sound by expanding your library with V-Drums instrument expansions and kit packs.

・New V-Drums born from an expandable sound engine and Roland's latest pad technology

・All-new multi-sampled sound library created in collaboration with DW

・Seamless transition to PC-based playing with DW Soundworks drum software (included with Roland Cloud Ultimate membership)

・Wireless connection with the Roland Cloud Connect smartphone app allows you to download V-Drums instrument expansions and kit packs

・Includes 6-month membership to Roland Cloud Ultimate

・Updated user interface with large color display, built-in wireless adapter

・Enhanced V-Edit and V71 Editor software (macOS / Compatible with Windows)

Powerful studio-class editing tools including EQ, COMP, reverb, and ambience effects

Sample import function allows you to add original sounds

Balance-enabled main/direct audio output, three digital trigger inputs, and 14 analog trigger inputs

Compatible with the latest V-Drums 7 series pads, including the digital snare PD-14DSX and V-Pad PD-10X/PD-12X

Multi-channel USB interface with 32 audio channels and MIDI

Bluetooth audio/MIDI support for wireless music playback and MIDI recording from smartphones

Stereo MIX for mixing with external devices such as SPD sampling pads IN

■Number of drum kits

200 (presets: 70 or more)

■Number of tones

1000 or more

■Effects

Layer transient: per layer

Layer equalizer: per layer

Pad equalizer: per pad (separate for Head and Rim)

Pad compressor: per pad (common for Head and Rim)

Overhead mic simulator

Room/reverb/kit resonance

Bus effects: 4 systems (2 can be used simultaneously per system/with side chain function), 94 types

Bus reverb

Master compressor

Master equalizer

■User samples

Number of user samples: up to 500 (factory default) (including user samples)

Sound length (total): 24 minutes in mono, 12 minutes in stereo

Importable file format: WAV (44.1kHz, 16/24-bit)

■Song player (SD card)

Audio file: WAV (44.1kHz, 16/24-bit), MP3

■Recorder

Recording method: Real-time

Maximum number of notes stored: Approximately 40,000

Export file format: WAV (44.1kHz, 16-bit), SMF

or

Recording method = Real-time, Maximum recording time = 60 minutes (Temporary recording: 1 minute) (*1)

File format = WAV (44.1kHz, 16-bit)

■Display

Graphic color LCD 4.3 inches

TRIGGER ACTIVITY indicator (LED)

■Faders

8 (KICK, SNARE, TOMS, HI-HAT, CRASH, RIDE, AUX, AMBIENCE)

■External memory

SD card (SDHC compatible)

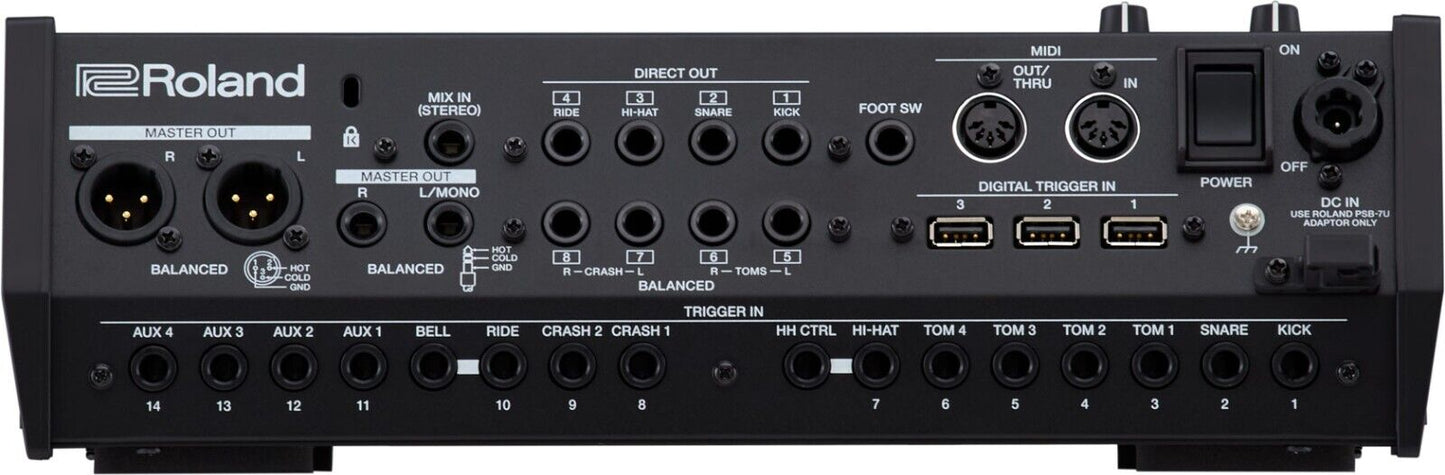

■Connection terminals

TRIGGER IN terminals x 14: Standard TRS type (exclusive use with digital connection compatible pads)

DIGITAL TRIGGER IN terminals x 3: USB A type

MASTER OUT (BALANCED) terminals (L/MONO, R): Standard TRS type (balanced)

MASTER OUT (BALANCED) terminals (L, R): XLR type (balanced)

DIRECT OUT (BALANCED) terminals x 8: Standard TRS type (balanced)

PHONES terminals x 2: Stereo standard type, stereo mini type

MIX IN (STEREO) terminal x 1: Stereo standard type

MIDI (IN, OUT/THRU) terminals

USB COMPUTER terminal: USB Type-C (R) (Class-compliant audio and MIDI communication/Roland driver audio and MIDI communication)

FOOT SW terminal: Standard TRS type

DC IN terminal

■Number of USB audio recording and playback channels

＜Vendor mode＞

Sampling frequency (original): 44.1kHz

Sampling frequency (using sampling rate converter): 96kHz, 48kHz

Recording: 32 channels

Playback: 32 channels

＜Generic mode Sampling frequency (original): 44.1kHz＞

Recording: 2 channels

Playback: 2 channels

■Power supply

DC 12V (AC adapter)

■Current consumption

2,400mA

■Power consumption in off mode (power automatically turned off)

0.2W

■Accessories

Quick start

Roland Cloud Connect Setup Guide

Roland Cloud Activation Card

AC adapter

■External dimensions/weight

Width (W): 330 mm

Depth (D): 308 mm

Height (H): 110 mm

Weight: 4.2 kg
