As the culmination of the current SOULNOTE fully balanced non-return technology, all technologies are generously put into use. It is an integrated amplifier equipped with various monaural modes and power amplifier modes such as the new BTL/bi-amp.
●Complete non-feedback discrete circuit
●Relay switching type balanced attenuator

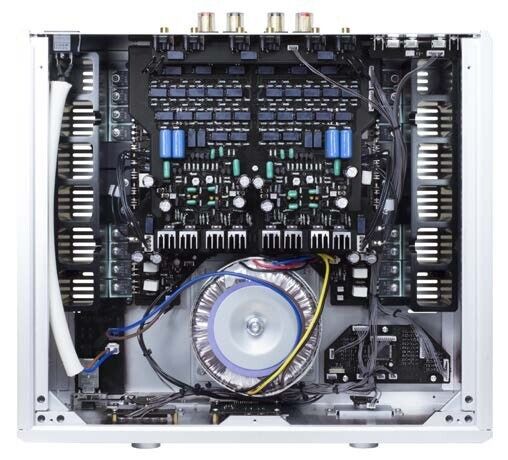

●Ideal construction
- Adopts 4-layer board with copper foil thickness of 70 microns
●No-contact wiring
●Powerful power supply
●4 parallel high speed output transistors
●Output transistor selection
●4-stage Darlington circuit
●Case design with top priority on sound quality
●Single non-feedback differential BTL circuit
●Two types of monaural modes
●Power amplifier mode
SOULNOTE A-2 specifications
Output 100W×2 (8Ω), 200W×2 (4Ω), 400W (BTL MONO 8Ω)
Total harmonic distortion rate 0.03% (50W 8Ω)
Frequency characteristics Speaker (8Ω 1W): 3Hz - 240kHz (±1.0dB)
Input sensitivity/impedance LINE1,2,3 (balanced): 700mV/16kΩ, LINE4,5,6:700mV/8kΩ
S/N ratio 110dB (IHF A network)
Power supply voltage AC100V 50/60Hz
Power consumption 355W (J60065), 125W (when idling)
Maximum external dimensions Main body: 430(W)×160(H)×423(D)mm
Mass approx. 20kg
Accessories Remote control, spikes, power cable
