SOULNOTE E-2 Silver World's first all-in-one phono equalizer MADE IN JAPAN NEW

In addition to conventional MC/MM cartridges, it also supports Digital Stream's DS Audio photoelectric cartridge.

This is an all-in-one phono equalizer that can play all types of cartridges. ( world's first)

■Features

1. Non-feedback phono equalizer circuit exclusively for photoelectric cartridges

Differential emitter bypass of equalizer element

circuit to increase circuit impedance.

Adopts a new circuit that lowers the width. Phase compensation and band

Electrically stress-free with no need for restrictions

SOULNOTE Original perfect balance

The non-feedback circuit is the same as the weight of the coil and magnetic circuit.

A photoelectric cart that escapes the curse of induced resistance

Take full advantage of the benefits of the ridge. Excellent transient response

Shockingly hot due to the combination of photoelectric type and non-return

A lively musical space expands.

*Photoelectric cartridges were available in Toshiba and Trio cars in the past.

It is not compatible with triges.

2. Widely compatible with old equalizer curves before RIAA (when MC/MM)

Roll Off (high range attenuation frequency) 6 types, Turn Over (low range amplification frequency) 4 types, Low Limit (ultra low range

(amplification limit), each of which can be changed independently. Decca and COLUMBIA

A total of 144 types of curves are obtained from the initial SP record (FLAT). listen to the sound

You can also use it to find the optimal equalizer curve by operating each knob.

You can also create your desired equalizer curve directly from the included equalizer curve table.

is also possible. The equalizer curve is switched using a mechanical relay, giving top priority to sound quality.

3. Fully balanced non-feedback phono equalizer circuit (at MC/MM)

By using a balanced load circuit, the gain itself of the differential amplifier has precise RIAA characteristics.

Adopts SOULNOTE's original fully balanced non-feedback circuit, which eliminates the drawbacks of the NF and CR types.

for. Furthermore, the left and right channels are made independent with one board per channel, resulting in a twin mono configuration.

This makes it possible to depict precise and expansive spaces.

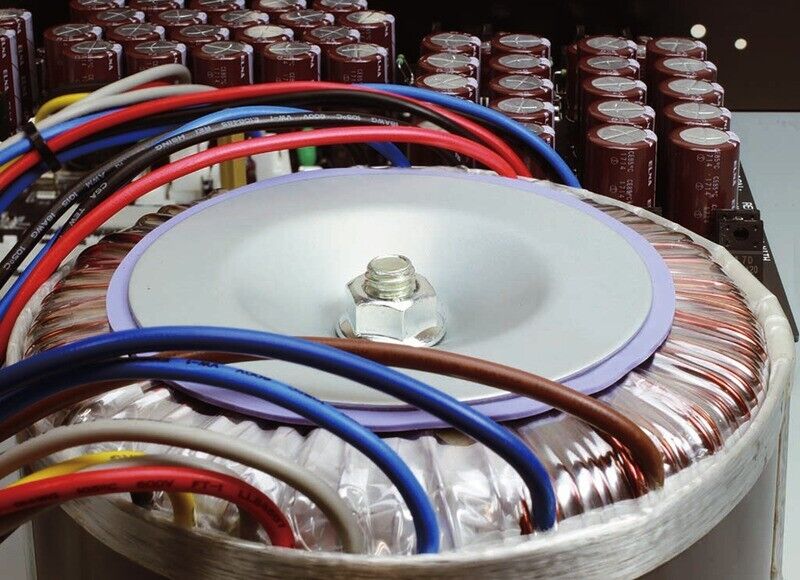

4. Equipped with 400VA super-dreadnought toroidal transformer & high-speed non-return power supply

By intentionally using a single extremely powerful 400VA biphasic transformer, GND and

We are working to clarify the power potential. Parallel connection of many small capacity capacitors and high speed

In combination with a non-feedback regulator, the air seems to rise up from the stage.

It creates an accurate sound image while easily reproducing even the movements of the sound.

5. MC LOAD switching function

Equipped with 6 types of load impedance switching functions to maximize the performance of the MC cartridge being used.

6. Inputs that can be connected to 4 systems

"MC balanced input", "MC/MM unbalanced input (2 lines)" and "photoelectric cartridge dedicated input".

You can connect 4 inputs at the same time and switch between them.

7. MONO function

Equipped with a function that combines the left and right channels and outputs them as monaural.

8. MM load capacity switching function

Equipped with three types of load capacity switching to fully demonstrate the performance of MM cartridges.

9. Invert function

Equipped with an invert function that eliminates changes in sound quality caused by the circuit by swapping the HOT and COLD balanced outputs.

10. Gain low function

It is equipped with a gain low function that lowers the output level in consideration of the headroom of the connected preamplifier, etc.

11. Degaussing function (at MC/MM)

This function shorts the input. Playing a record in this state will have the effect of degaussing the cartridge.

It can also be used as a MUTE function at the moment the needle is dropped.

12. Balanced output

A fully balanced non-feedback buffer amplifier that can even drive speakers provides a powerful balanced output.

Input sensitivity MC:0.4mV, MM:4mV, OPT:50mV

Gain MC:72dB, MM:52dB, OPT:30dB

Rated output voltage BALANCE:2.8V, UNBALANCE:1.4V

RIAA deviation ± 0.2dB

MC load resistance 3 Ω, 6 Ω, 12 Ω, 24 Ω, 40 Ω, 100 Ω

MM load capacity 100P, 200P, 350P

MM Load resistance 47KΩ

Equalizer frequency ROLL-OFF [KHz]: 1.59, 2.12(RIAA), 2.59, 3.18, 6.89, FLAT

TURNOVER [Hz]:250, 390, 500(RIAA), 630

LOW LIMIT [Hz]:50(RIAA), 71, 100, 125, 150, FLAT

Power supply voltage AC100V 50/60Hz

Power consumption 50W (J60065)

Maximum external dimensions: 430(W) × 160(H) × 410(D)mm

Mass approximately 20kg

Accessories spikes, power cable
