Soundcraft Mini-Stagebox 16i 16 Preamp 8 XLR Output RJ45/Cat5 Fast Shipping!

Soundcraft Mini-Stagebox 16i 16 Preamp 8 XLR Output RJ45/Cat5 Fast Shipping!

Regular price $1,200.00 USD
Regular price Sale price $1,200.00 USD
Sale Sold out
Shipping calculated at checkout.
Condition: New Unit Type: Unit
Analog/Digital: Digital Country/Region of Manufacture: Unknown
MPN: 5074417 Suitable For: Stage/Live Sound,Recording & Live Sound
Number of Channels: 16 Item Height: 16.7 in
Item Width: 9.7 in Number of Line Inputs: 16
Item Depth: 21.2 in Brand: Soundcraft
Input/Output Ports: Analog XLR Out,Analog XLR In Number of Phono Inputs: 16
Form Factor: Rack Mountable Type: Digital Mixer
Model: MINI STAGEBOX 16i Item Weight: 13.3 lb

Description

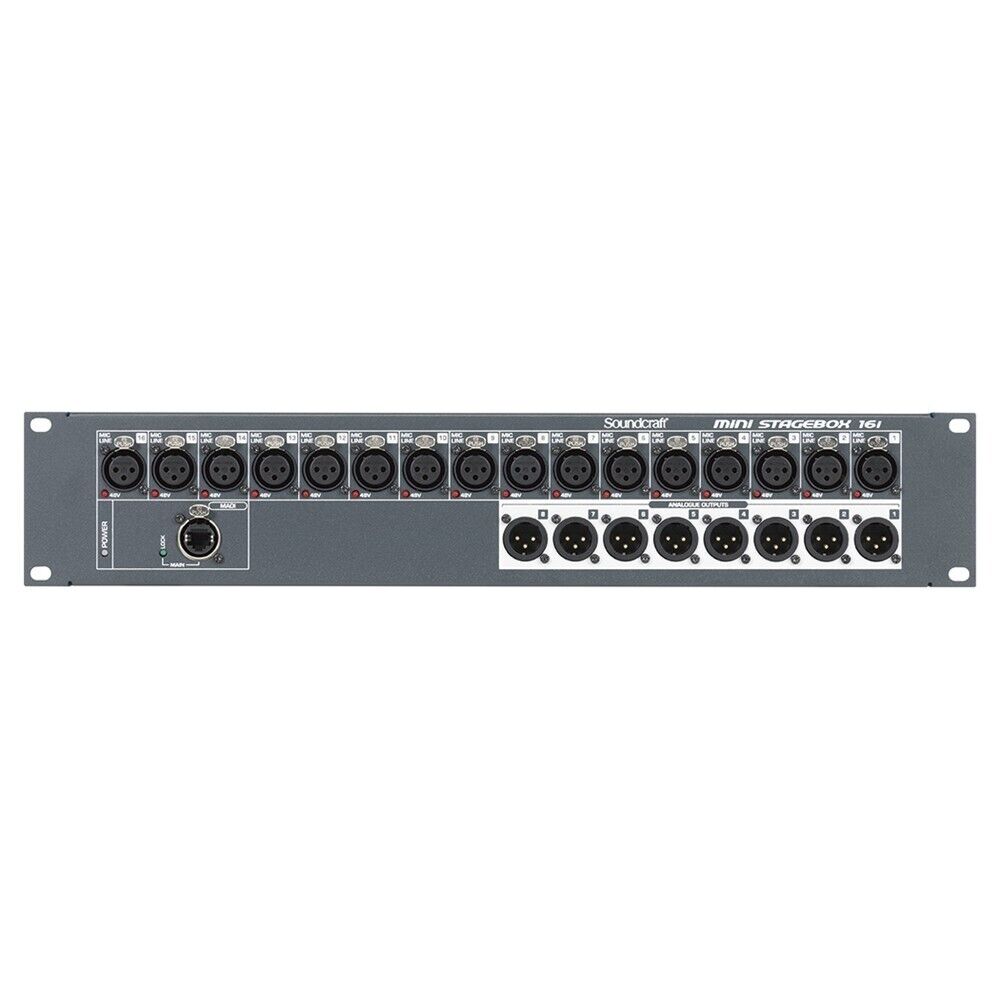

The Soundcraft Mini Stagebox 16i combines high-quality components and a streamlined design to create a stagebox compatible with Si Series mixing consoles. 32ch remote controllable I/O can be easily added.
■Stage box

Studer-designed mic preamps provide exceptional sound quality. The compact housing is highly portable and allows for quick setup. Replace heavy and expensive analog snake cables with a single RJ45 Cat5 Ethernet cable.

Equipped with a legendary Studer-designed preamp for professional performance
・Dedicated remote control XLR microphone input
・16 mic preamps, 8 analog outputs and dual MADI connections

■High quality components
Soundcraft mini stage boxes offer the industry-leading performance that Soundcraft live solutions are known for, at a great value for money. Classic Studer-designed mic preamps provide warm, rich sound for live performances and event recordings.

■ Comprehensive I/O
It provides multi-channel MADI I/O with standard Cat5 cable connectivity, eliminating the need for expensive and heavy analog snakes from stage to FOH. A dedicated XLR mic pre-input allows for 32 or 16 channels of external analog input. Mini Stagebox 16i provides 8 analog outputs for live performance, stage monitoring, broadcast and more.

■Stream design
Equipped with RJ45 connector as standard for MADI connection. No hardware or option card installation required. Connects to your Soundcraft Si console for input selection and remote control.

■Full integration with Si series mixers
Mini Stagebox combines with Soundcraft Si series mixers to provide intuitive, remote-controllable expansion I/O. Si Impact allows you to use the mixer's console input while using the stagebox as an additional input. Add a second MADI option card to your console and connect a second stagebox to choose from 80 mixing channels.

■Technical specifications
RJ45/Cat5 connection: 100M connection possible from mixing console to stage box
32 remote controllable mic preamps and AD converters
12 XLR analog line outputs
3U rackmount design
Featuring a legendary Studer-designed preamp for professional performance
Dedicated remote control XLR microphone input
16 mic preamps, 8 analog outputs and dual MADI connections
