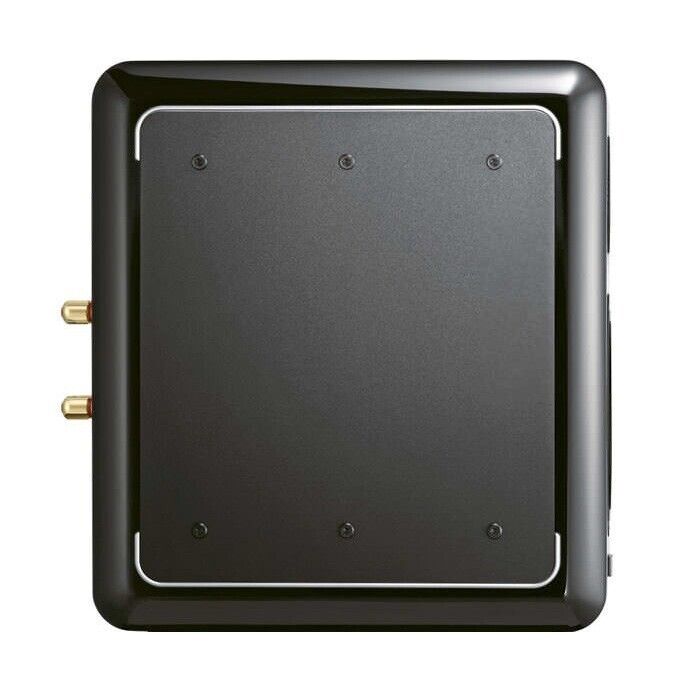

TAD TAD-ME1-K piano-black 3-way bass reflex speaker pair NEW

Adopts the original "CST driver" created by TAD to reproduce natural sound. We have made the proven 14cm CST driver smaller and pursued a point sound source concept.

A 16cm woofer that uses a newly developed MACC diaphragm with increased strength and internal loss to obtain ideal vibration characteristics as a woofer diaphragm, and a magnetic circuit that achieves outstanding drive linearity.

Equipped with a "Bi-Directional ADS port" that aims for the ideal sound with an innovative approach. Slit-shaped ports are placed on both side panels of the enclosure, with the openings facing forward and backward. The introduction part is shaped like a horn to spread the sound smoothly.

spec

●Model: 3-way bass reflex bookshelf type

●Drive unit

Woofer: 16 cm cone type x 1

Mid/Tweeter: Coaxial 9 cm cone type/2.5 cm dome type

●Performance data

Playback frequency band: 36 Hz to 60 kHz

Crossover frequency: 420Hz, 2.5kHz

Maximum input: 150W

Output sound pressure level: 85 dB (2.83 V, 1 m)

Rated impedance: 4 Ω

●Mass: 20 kg (1 unit)

●External dimensions: 251 mm (W) x 411 mm (H) x 402 mm (D)

●Accessories: Short cable x 2, cleaning cloth

Instruction manual, non-slip pad x 4
