TASCAM CD-9010 Broadcast business specification CD player NEW
TASCAM CD-9010 Broadcast business specification CD player NEW
Regular price
$5,700.00 USD
Regular price
Sale price
$5,700.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
| Condition: New | Brand: TASCAM |
| Type: Single CD Player | Color: Black |
| Model: CD-9010 | Features: Built-in CD Player |
| Country/Region of Manufacture: Unknown | Audio Outputs: RCA/Phono Female |
| UPC: Does not apply |
Description
Balanced durability, operational efficiency, operability, and high sound quality. A next-generation standard CD player system for broadcasting operations
Based on the TEAC CD-5010B, the CD-9010CF/CD-9010 is equipped with a tray-type drive that has been specially tuned. Based on long-term interviews with broadcast station operators, we have further tuned the highly durable CD-5010B drive. For the OPEN/CLOSE operation of the CD tray and the DISC LOADING from inserting the disc until it becomes ready to play, we investigated the waiting time allowed at the site and speeded up each operation. The unit of adjustment is actually 0.1 seconds, realizing both durability and operation speed that cannot be achieved with other drives. In addition, it is equipped with a manual eject lever so that it can be switched to a backup system even in an emergency such as a power cutoff. The disc can be ejected manually even when power is not supplied.
[Rating]
Used media CD-DA (12/8cm), CD-ROM (12cm), CD-R [CD]
Supported disc format CD-DA, CD-ROM ISO9660 Level1/2/ROMEO/JOIELT
Playable formats Audio CD (CD-DA), WAV
CD-DA
Sampling frequency 44.1kHz
Number of quantization bits: 16 bits, WAV
Sampling frequency 44.1/48kHz
Quantization bit number 16/24 bit MP3
Sampling frequency -
MP3 bitrate - [CF]
File system -
Playable formats -
Number of channels 2 channels [analog output]
LINE OUTPUTS (unbalanced) -
Output impedance -
Nominal output level -
Maximum output level -

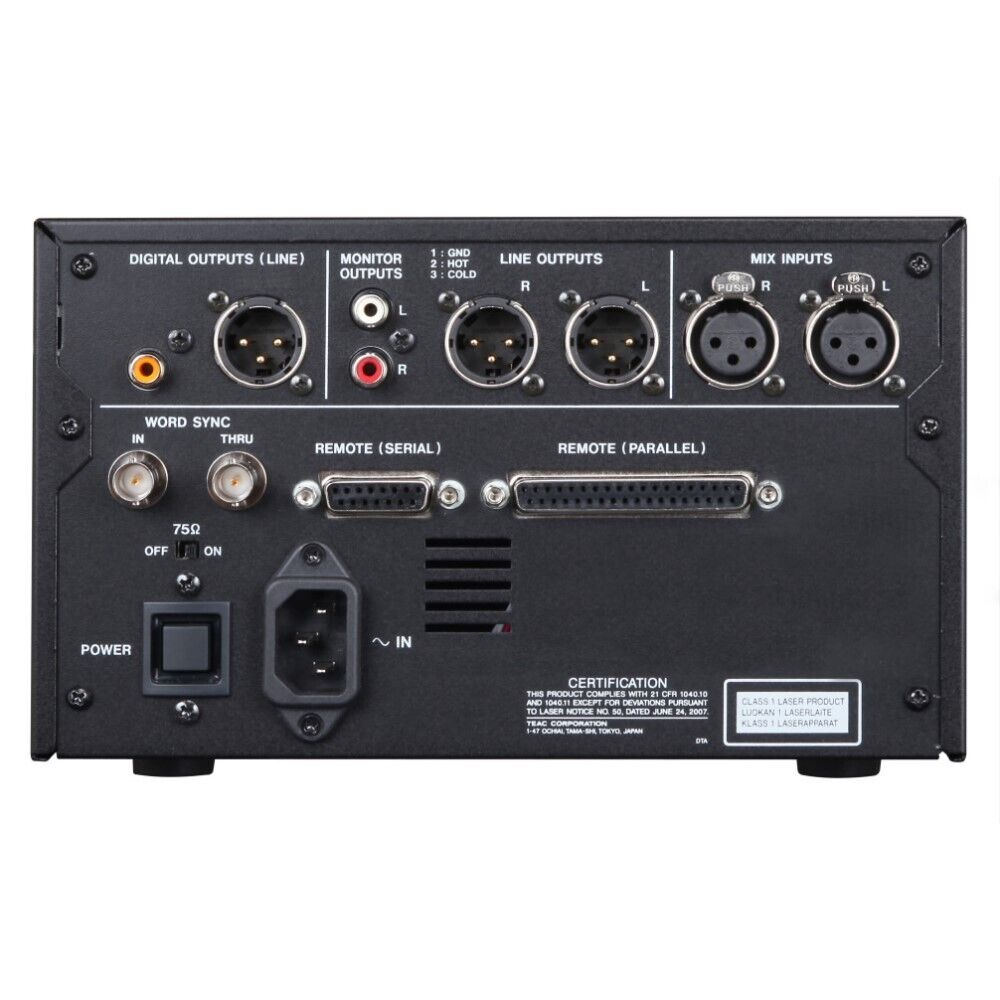

LINE OUTPUTS (balanced) XLR-3-32 (1: GND, 2: HOT, 3: COLD)
Output impedance 200Ω
Nominal output level +4dBu
Maximum output level +4dBu/-20dBu selectable
Reference level -9dBFs/-14dBFs/-16dBFs/-18dBFs/-20dBFs
MONITOR OUTPUTS (balanced) RCA pin jacks
Output impedance 100Ω
Nominal output level -10dBv
Maximum output level +6dBv
Reference level -
PHONES Standard stereo jack
Maximum output 45mW + 45mW (32Ω load) [digital output]
AES-3id-
format -
Output impedance -
COAXIAL RCA pin jack
Format IEC60958-3(S/PDIF) / AES3-2003 /IEC60958-4(AES/EBU) selectable
Output impedance 75Ω
XLR XLR-3-32 (1: GND, 2: HOT, 3: COLD)
Format IEC60958-3(S/PDIF) / AES3-2003 /IEC60958-4(AES/EBU) selectable
Output impedance 110Ω [MIX INPUTS (balanced)]
Input impedance 10kΩ
Nominal input level +4dBu
Maximum input level +24dBu [WORD SYNC]
IN (Balance) BNC
Input voltage 5V TTL
Input impedance 75Ω (ON/OFF selectable)
Synchronization frequency range ±100p
THRU BNC [KEYBOARD]
USB USB-A
Type US/JAPANESE
USB -
type -
CONTROL I/O 2.5mm TRS jack (REMOTE), D-sub 9-pin (SERIAL), D-sub 25-pin (PARALLEL)
Power AC100-240V, 50-60Hz
Power consumption 12.5W
External dimensions 483 (width) x 94 (height) x 303 (depth) mm
Mass 4.9kg
Performance
Frequency response 20Hz-20kHz, ±0.5dB (JEITA)
S/N ratio 95dB or more (JEITA)
Distortion 0.005% or less (JEITA)
Channel separation 95dB or more (1kHz, JEITA)
