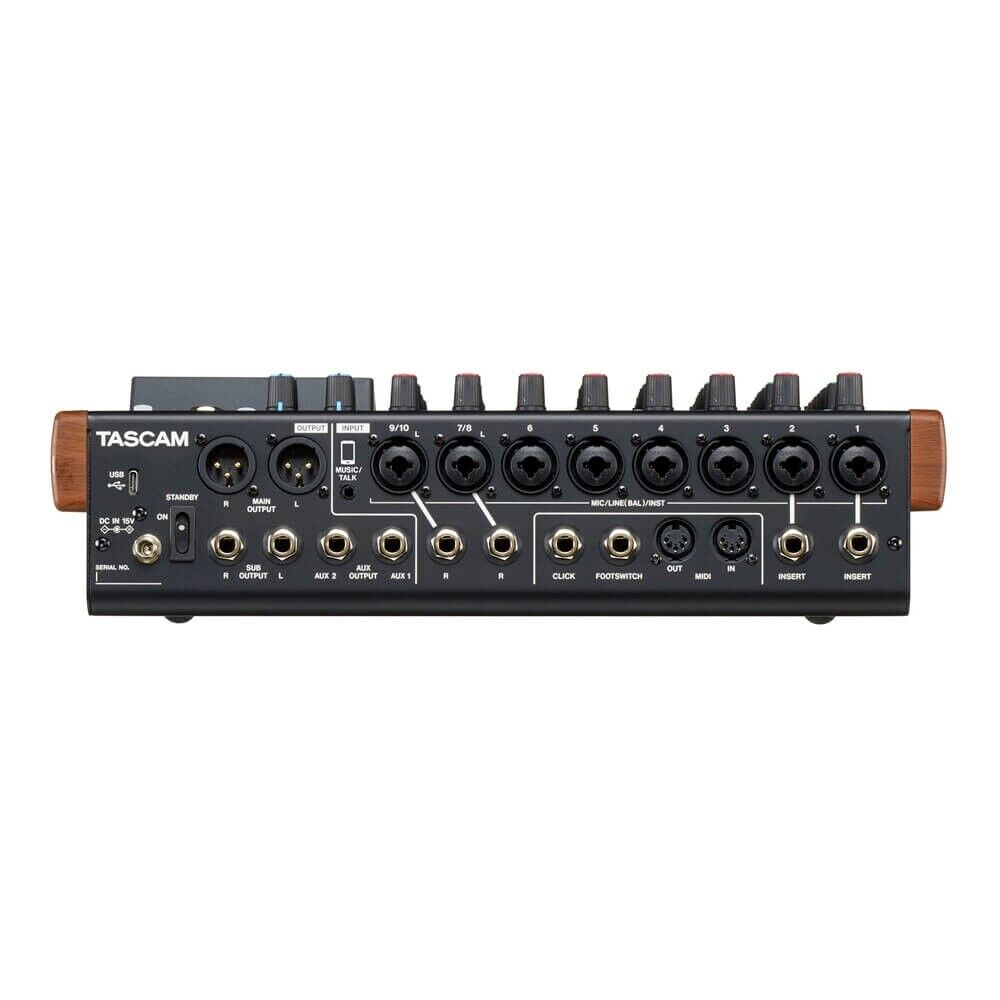

TASCAM Model 12 12-Track Multitrack Recorder USB Audio Interface NEW

<Recorder section>

■Supported media: SD (512MB to 2GB), SDHC (4GB to 32GB), SDXC (64GB to 512GB) *Class 10 or higher

■File system: SD card: FAT16, SDHC card: FAT32, SDXC card: exFAT

■Recording format: WAV(BWF)

■Playback format: WAV, BWF

■Sampling frequency: 44.1k / 48k Hz

■Bit length: 16 / 24 bit

■Number of recordable channels: Up to 12 channels (10 channels + 2 stereo mix)

<Audio input>

□MIC IN: CH1~6, 7, 9

■Terminal: XLR 3-31 (1: GND, 2: HOT, 3: COLD, balanced)

■Maximum input level: +10dBu

■Nominal input level: -8dBu

■Minimum input level: -58dBu

■Gain adjustment range: 0 to 50dB

■Input impedance: 1.8kΩ

■Phantom power: +48V

□LINE IN CH: 1~6, 7/8, 9/10

■Terminal: 1/4" (6.3mm) TRS standard jack (T: HOT, R: COLD, S: GND, balanced)

■Maximum input level: +22dBu

■Nominal input level: +4dBu

■Gain adjustment range: -10 to +40 dB (CH 1 to 6), -20 to +30 dB (CH 7/8, 9/10)

■Input impedance: 22kΩ

□INST IN: CH1~6, 7, 9

■Terminal: 1/4" (6.3mm) TS standard jack (T: HOT, S: GND, unbalanced)

■Maximum input level: +13.8dBV

■Nominal input level: -4.2dBV

■Gain adjustment range: -10 to +40 dB (CH 1 to 6), -20 to +30 dB (CH 7/8, 9/10)

■Input impedance: 1MΩ

□INSERT: CH 1, 2

■Terminal: 1/4" (6.3mm) TRS standard jack (T: Send, R: Return, S: GND)

■Return (Ring)

■Maximum input level: +18dBu

■Nominal input level: 0dBu

■Input impedance 5kΩ

■Send (Tip)

■Maximum output level: +18dBu

■Nominal output level: 0dBu

■Output impedance: 100Ω

□MUSIC/TALK: CH 9/10

■Terminal: 1/8" (3.5mm) 4-pole mini jack (for smartphone, unbalanced, TRRS: CTIA standard)

■Maximum input level: +8dBV

■Nominal input level: -10dBV

■Input impedance: 10kΩ

<Output>

□MAIN OUTPUT

■Terminal: XLR 3-32 (1: GND, 2: HOT, 3: COLD, balanced)

■Maximum output level: +22dBu

■Nominal output level: +4dBu

■Output impedance: 200Ω

□SUB OUT, AUX OUT

■Terminal: 1/4" (6.3mm) TRS standard jack (T: HOT, R: COLD, S: GND, balanced)

■Maximum output level: +16dBu

■Nominal output level: -2dBu

■Output impedance: 200Ω

□PHONES OUT: PHONES 1, 2

■Terminal: 1/4" (6.3mm) standard jack

■Maximum output level: 45mW + 45mW (at 32Ω load)

■FOOTSWITCH: Compatible with TASCAM RC-1F

■Terminal: 1/4" (6.3mm) TRS standard jack

■CLICK: Metronome click output

■Terminal: 1/4" (6.3mm) TRS standard jack

<USB Audio>

■Terminal: USB Type-C

■Format: USB2.0 High-Speed, Mass Storage Class / USB Audio Class

■Sampling frequency: 44.1k / 48k Hz

■Bit length: 16 / 24 bit

■Maximum number of inputs: 12 channels

■Maximum number of outputs: 10 channels

<Bluetooth®>

■Version: 5.0

■Output class: Class 2

■Line-of-sight communication distance: Approximately 10m

*Communication distance is a guideline. Communication distance may vary depending on the surrounding environment and radio wave conditions.

■Supported profile: A2DP

■Supported A2DP codec: SBC, AAC

■A2DP content protection method: SCMS-T

<Channel EQ>

■Low-Cut: 100Hz, -18dB / Octave

■Hi-Shelving: +15dB / -15dB, cutoff frequency = 10kHz

■Mid-Peaking: +15dB / -15dB, 100Hz to 8kHz (variable), MID band Q fixed, 0.5

■Low-Shelving: +15dB / -15dB, cutoff frequency = 80Hz

<Master section EQ>

■Hi-Shelving: +15dB / -15dB, cutoff frequency = 10kHz

■MID-Peaking: +15dB / -15dB, 100Hz to 8kHz (variable), Q: 0.5/5

■Low-Shelving: +15dB / -15dB, cutoff frequency = 60Hz

<Internal Effects>

■Type: HALL 1, HALL 2, ROOM 1, ROOM 2, PLATE, STUDIO, LIVE, DELAY 1, DELAY 2, PING PONG, CHORUS, FLANGER, DELAY + HALL 1, DELAY + HALL 2, CHORUS + HALL 1, CHORUS + HALL 2

*You can edit the selected type and register it in the library.

<Others>

■Power supply: AC 100-240V, 50/60Hz

■Power consumption: 16W

■External dimensions: 343(W) x 360(H) x 98.8(D)mm (including side panels and protrusions)

■Mass: 4.3kg

■Operating temperature: 5~35 °C

■Accessories: Power cord, instruction manual (with warranty)

*Compatible with RoHS.

*Specifications and appearance are subject to change without notice for improvement.

<Operating environment>

Windows

■Compatible computer: Windows computer with USB2.0

■Compatible OS: Windows 10 (November 2019 Update), Windows 8.1, Windows 7

■CPU: Dual core (x86) 2GH or higher

■Memory: 2GB or more

■Driver: USB Audio Class 2.0, ASIO ASIO2.0, WDM (MME)

■Screen resolution: 1280 x 800 dots or more

Macintosh

■Compatible computer: Macintosh computer equipped with USB2.0

■Compatible OS: macOS Catalina, macOS Mojave, macOS Sierra (10.12)

■CPU: Dual core, 2GHz or higher

■Memory: 2GB or more

■Driver: Core Audio

■Screen resolution: 1280 x 800 dots or more

iOS/iPadOS device

■Supported OS: iOS 13, iOS 12, iOS 11

■Driver: Core Audio

*When connecting a device equipped with a Lightning connector, an Apple genuine Lightning to USB camera adapter (sold separately) is required.
