TEAC AD-850-SE/S Cassette CD Player USB Memory Recording 100V NEW

・Can record from CD/cassette tape/microphone/external input device to USB memory (MP3 file)

・Can record to cassette tape from CD/USB memory/microphone/external input device

・Equipped with microphone input terminal

・Mixing of microphone input and CD/USB/cassette/external input is possible

- Microphone mixing audio can be recorded to cassette/USB (Audio mixed from CD and microphone input cannot be recorded via USB)

・Echo function to microphone input

・MP3 file playback (USB memory, CD-R/RW)

・Can display ID3 tags and file names of MP3 files (USB memory, CD-R/RW)

・Timer playback function (CD/TAPE/USB memory)

・Timer recording function (available only for TAPE)

・Recording level can be adjusted when dubbing (*only available from CD to USB memory)

・Various playback modes such as "continuous playback", "shuffle playback", and "program playback" (CD/USB memory)

・Displays the elapsed time and remaining time of the song being played, the total elapsed time and total remaining time of the disc (CD cassette tape counter function)

・Cassette tape pitch control (+/-10%) function (only during playback)

・Equipped with a peak level meter that is effective during recording and playback

・Dedicated remote control included

・RoHS compliant

cassette tape

Track format: 4 tracks, 2 channels, stereo

Head configuration: Recording/playback head x 1, erase head x 1

Tape type Cassette tape C-46/C-60/C-90

Tape speed 4.76cm/sec

Motor DC servo motor x 1

Pitch control approximately +/-10% (playback only)

Wow/Flutter 0.25% (W.RMS)

Frequency characteristics (overall) Chrome: 50-12,000Hz +/-3dB

Normal: 50-12,000Hz +/-3dB

SN ratio (total) 59dB (3%THD level WTD)

Early winding time: Approx. 120 seconds (C-60 tape)

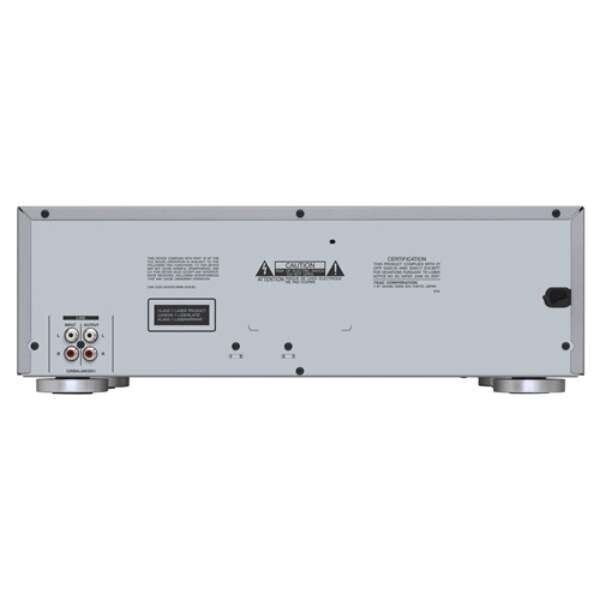

Line input (RCA) 462mV (input impedance 50kΩ or more)

Line output (RCA) 462mV (Load impedance 50kΩ or more)

CD PLAYER

Pickup 3 beam, semiconductor laser

Digital filter 8x oversampling digital filter

Frequency response 20Hz~20kHz +/-2dB

Total harmonic distortion rate 0.02% or less (1kHz)

SN ratio 87dB or more (IHF-A)

Analog output (RCA) 2.0V

USB recorder/player

Interface USB 1.1 FULL SPEED (12Mbps)

Playback format: MP3

Frequency characteristics: 20Hz to 20,000Hz (+/-2dB)

SN ratio: 85dB or more

Bitrate: 8k to 320k bps

Recording format: MP3

Frequency characteristic

CD → USB: 20Hz to 15,000Hz (+/-3dB) *Only compatible with music CD format (CD-DA)

LINE IN → USB: 100Hz to 15,000Hz (+/-3dB)

SN ratio: 85dB or more

Bitrate: 128kbps

Maximum recording time: 240 minutes *Automatically stops after 240 minutes.

microphone input

Connector 6.3mm (1/4") monaural standard jack

Reference input level 0.78mV(-60dBm)

Input impedance 47kΩ or more

Power supply function: None

general

Power supply 100V AC, 50/60Hz

Power consumption 13W

External dimensions 435 (W) x 145 (H) x 288 (D) mm (including protrusions)

Mass 4.8kg

Operating temperature 5~35?C

Operating humidity 5-85% (non-condensing)

Storage temperature -20~55?C

Accessories: Remote control (RC-1329), remote control batteries (AAA) x 2, RCA audio cable x 2, instruction manual (Japanese), easy recording guide
