TEAC LP-R550USB-B CD recorder turntable cassette player NEW

● You will be able to dub valuable sound sources such as nostalgic analog records that you keep carefully and tapes of live performances recorded with air check to CD-R / RW for music.

●Cassette tapes and hard-to-store records, which are susceptible to magnetic transfer, demagnetization, and quality deterioration during long-term storage, can be stored for a longer period of time by converting them to CD-R.

●The record section is compatible with 33/45/78 rpm, and by using the replacement stylus for SP discs (sold separately), more faithful SP disc playback is possible. The radio tuner supports AM and FM reception.

●It boasts excellent playback capabilities as a playback device, and the speaker uses a full-fledged bass reflex type speaker to reproduce powerful bass. The amplifier section achieves 3.5W+3.5W and a frequency response of 50-20kHz.

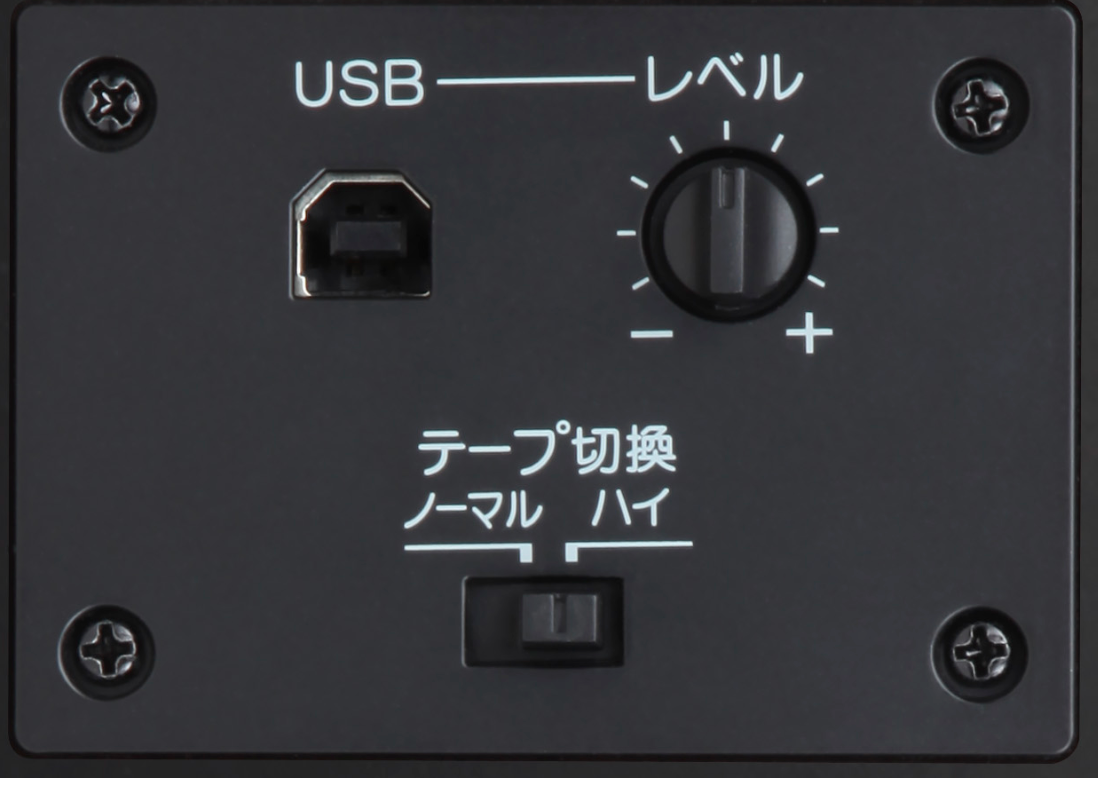

●A USB terminal that can be connected to a personal computer is provided on the top panel of the main unit. By using the separately sold computer software, you can record audio from analog records, cassette tapes, and AM/FM radio on your computer.

Specifications of [TEAC CD Recorder with Cassette Player LP-R550USB]

● Amplifier output: 3.5W + 3.5W

- Amplifier frequency characteristics: 50Hz - 20kHz

● Amplifier input sensitivity: 500mV / 20kΩ

●Speaker enclosure type: Bass reflex (rear)

●Speaker unit: 76mm x 2

●Speaker impedance: 4Ω

●Tuner part FM reception frequency: 76.0MHz to 90.0MHz

●Tuner part AM reception frequency: 522kHz to 1629kHz

Input terminal: Analog (RCA) x 1

Output terminal: Analog (RCA) x 1

Headphone output terminal: 3.5mm stereo minijack x 1

Power supply: 100V AC 50-60Hz

Power consumption: 25W

-Maximum outline: W47 x H23 x D39cm (including protrusions)

●Mass: 11kg

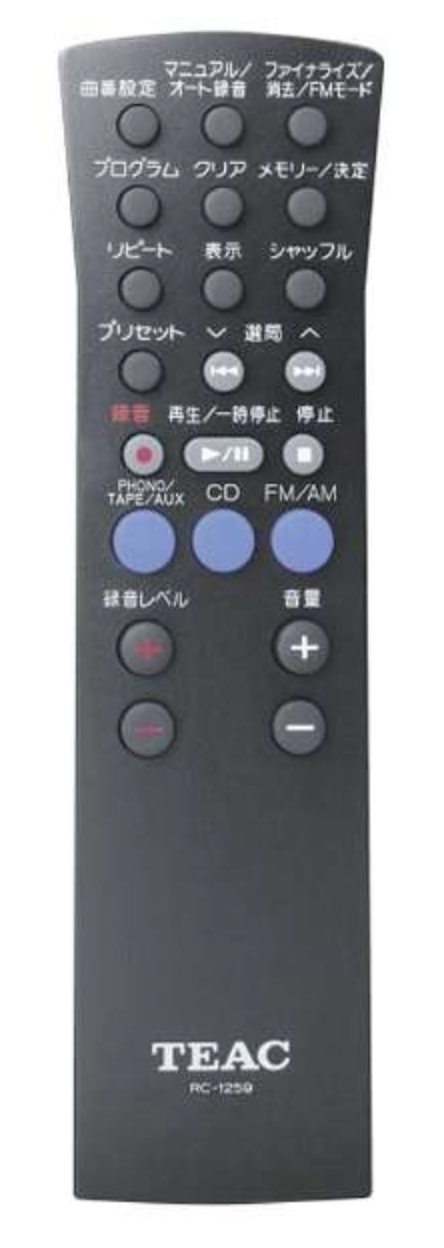

Accessories: Instruction manual, adapter for donut board, RCA audio cable, turntable cover, remote control (RC-1259), hinge x 2, easy recording guide, PC easy recording guide, AA batteries x 2, AM antenna

[CD recorder part]

- Playable disc: CD-DACD-RCD-RW

Recordable disc: CD-R for music, CD-RW for music

●Recording sampling frequency: 44.1kHz

●Frequency characteristics: 20Hz to 20kHz (+/-3dB)

S/N ratio: playback/85dB or more, recording/75dB or more

[Cassette player part]

●Track format: 4-track 2-channel stereo

- Head configuration: playback head x 1

- Tape used: Cassette tape of C-90 or less

- Tape speed: 4.8cm/s

- Wow and flutter: 0.30%

●Frequency characteristics: 125-10kHz

●S/N ratio: 45dB

[Record player part]

- Motor: DC servo motor

A drive system: Belt drive

● Turntable speed: 33 1/3, 45, 78 rpm

-Wow and flutter: 0.25% (JIS WTD)

●S/N ratio: 50 dB (IHF-A)

Cartridge: Ceramic stereo type

●Record needle: STL-103 (sapphire), for EP/LP discs

●Replacement stylus: STL-103 (sapphire), for EP/LP board, SPL-102 (diamond), for SP board
