TEAC MD-70CD-S CD Player/MD Recorder Silver Mini Disc/CD Combination Deck 100V

Combination model of MD deck and CD player

The MD deck section and CD player section each have their own dedicated input/output system and can operate independently.

Since the CD player section can play and output CDs while the MD deck section is recording external input, even if an MD deck and CD player are required, this one unit can handle it.

MD deck section compatible with SP (stereo), MONO, LP2, LP4

Up to 320 minutes of MD recording (when using an 80 minute disc) is possible, and recording/playback can be performed in different modes within one MD disc.

CD player section compatible with CD/CD-TEXT/CD-R/CD-RW discs

Equipped with a CD player that can play CDs containing WAV and MP3 files.

Furthermore, it supports CD-TEXT playback, and in addition to displaying song information, it is also possible to copy track names and album names when recording to MD.

Equipped with dedicated output terminals for the MD deck section and CD player section.

The MD deck is equipped with dedicated analog/digital input/output terminals, and the CD player section is equipped with dedicated analog/digital output terminals. Each can be output as an independent source.

Furthermore, it is equipped with an analog output terminal (COMMON) that outputs the audio signal being played on an MD or CD, and it is also possible to set the source to be output preferentially when playing an MD and CD at the same time.

Program playback settings can be saved

Program playback settings can be saved for up to 100 discs including MD and CD. Once you insert a disc (MD, CD) that has been programmed, you can load the previously set program playback order.

(Discs containing WAV and MP3 files use storage space for two tracks, so the number of discs that can be saved will be reduced.)

Product specifications of TEAC MD-70CD-S

Others ●MD deck section

・Format: MD (Mini Disc) recorder

・Compatible disc: MD (mini disc)

・Number of channels: 2 channels (STEREO), 1 channel (MONO)

・Recording mode: STEREO, MONO, LP2, LP4

・Recording method: Magnetic Field Modulation Overwrite

・Recording time

60 minute disc: 60 minutes (standard), 120 minutes (MONO), 120 minutes (LP2), 240 minutes (LP4)

74 minute disc: 74 minutes (standard), 148 minutes (MONO), 148 minutes (LP2), 296 minutes (LP4)

80 minute disc: 80 minutes (standard), 160 minutes (MONO), 160 minutes (LP2), 320 minutes (LP4)

・Sampling frequency: 44.1kHz

・Compression method: ATRAC (Adaptive TRansform Acoustic Coding)

・Frequency characteristics: 20-20kHz (recording/playback, ±0.5dB, JEITA)

・S/N ratio: 98dB or more (playback, JEITA), 95dB or more (recording/playback, JEITA)

・Distortion rate: 0.004% or less (playback, JEITA), 0.006% or less (recording/playback, JEITA)

・Dynamic range: 98dB or more (playback, JEITA), 95dB or more (recording/playback, JEITA)

・Channel separation: 90dB or more (playback, JEITA), 83dB or more (recording/playback, JEITA)

●CD player section

- Compatible discs: CD-DA, CD-TEXT, CD-ROM, CD-R, CD-RW, 12cm, 8cm

・CD-DA: 44.1kHz, 16 bit, stereo

・WAV: 44.1kHz, 16 bit

・MP3: 44.1kHz, 32k~320kbps, VBR compatible

・Frequency characteristics: 20-20kHz (±0.5dB, JEITA)

・S/N ratio: 100dB or more (JEITA)

・Distortion rate: 0.004% or less (JEITA)

・Dynamic range: 100dB or more (JEITA)

・Channel separation: 90dB or more (JEITA)

●Power supply: AC100V, 50/60Hz

●Power consumption: 22W

●External dimensions: 435 (W) x 100 (H) x 308 (D) mm

●Mass: 4.8kg

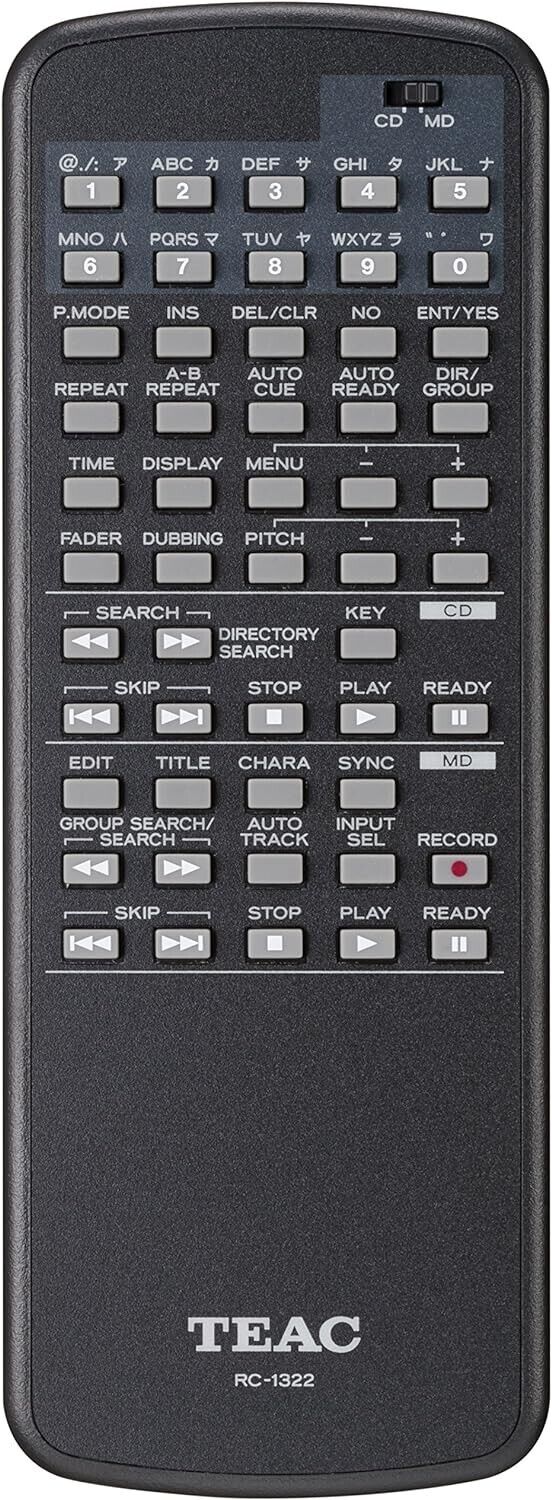

●Accessories: Power cord, remote control (RC-1322), AA batteries for remote control x 2, instruction manual
