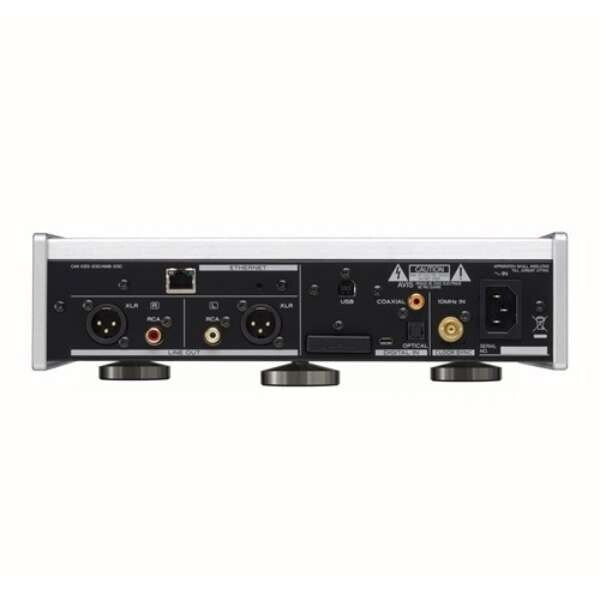

TEAC NT-505-X/S USB-DAC Dual Network Player Silver 100V NEW

●Audio input

・USB (rear): USB B terminal USB2.0, asynchronous mode transfer/bulk transfer

・Dedicated playback software: TEAC HR Audio Player (Windows, Macintosh)

・Coaxial digital (rear): RCA pin terminal x 1 (gold plated)

・Input level: 0.5Vp-p

・Input impedance: 75Ω

・Optical digital (rear): Square optical digital terminal (TOS) x 1

・Input level: -24.0 to -14.5dBm peak

・Coaxial digital (front): 3.5mm mini terminal x 1 * Also used as optical digital input, automatic detection

・Input level: 0.5Vp-p

・Input impedance: 75Ω *Can be connected to regular coaxial digital output (RCA pin terminal) by using the included RCA-mini plug conversion cable

・Optical digital (front): Optical mini terminal x 1 * Also used as coaxial digital input, automatic detection

・Input level: -24.0 to -14.5dBm peak

・USB (front): USB A terminal

・Supported media: USB flash memory

・Bluetooth version: 4

・Output class: Class2 (reaching distance approximately 10m)

・Supported profiles: A2DP, AVRCP

・A2DP content protection: SCMS-T

・Supported codecs: LDAC, Qualcomm aptX HD, aptX, AAC, SBC

・Number of pairing memory devices: Up to 8 devices

●Audio output

・XLR balance: XLR terminal x 1 system (gold plated)

・Output level setting: fixed (0dB), fixed (+6dB), variable, output off can be selected

・Maximum output level: 2.0Vrms (1kHz, full scale, 10kΩ load, fixed 0dB setting), 4.0Vrms (1kHz, full scale, 10kΩ load, fixed +6dB setting), 12.0Vrms (1kHz, full scale, 10kΩ (at load, variable setting)

・Output impedance: 188Ω

・RCA unbalanced: RCA pin terminal x 1 system (gold plated)

・Output level setting: fixed (0dB), fixed (+6dB), variable, output off can be selected

・Maximum output level: 2.0Vrms (1kHz, full scale, 10kΩ load, fixed 0dB setting), 4.0Vrms (1kHz, full scale, 10kΩ load, fixed +6dB setting), 6.0Vrms (1kHz, full scale, 10kΩ (at load, variable setting)

・Output impedance: 150Ω

●Headphone output

・Terminal: 3.5mm 4-pole mini jack x 1 (gold plated)

・Terminal polarity: Tip: L+, Ring1: R+, Ring3: L-, Sleeve: R-

・Maximum output: 500mW + 500mW (at 32Ω load)

・Supported impedance: 16-600Ω

●Supported formats

[USB input (rear)]

・PCM: (16/24/32bit) 44.1k/48k/88.2k/96k/176.4k/192k/352.8k/384k/705.6k/768kHz

・DSD: 2.8M/5.6M/11.2M/22.5MHz

[LAN input/USB input (front)]

・PCM: (16/24/32bit) 32k/44.1k/48k/88.2k/96k/176.4k/192kHz/352.8k/384kHz

・PCM compatible file formats: (PCM lossless) FLAC, Apple Lossless (ALAC), WAV, AIFF, MQA / (compressed audio) MP3, AAC (m4a container)

*384kHz/32bit will be down-converted to 192kHz/24bit, and 352.8kHz/32bit will be down-converted to 176.4kHz/24bit.

・DSD: 2.8M/5.6MHz

・DSD compatible file formats: DSD lossless/DSF, DSDIFF (DFF), DoP

[Coaxial digital input]

・PCM: (16/24bit) 32k/44.1k/48k/88.2k/96k/176.4k/192kHz

・DSD: 2.8MHz (176.4kHz/24bit DoP transmission supported)

[Optical digital input]

・PCM: (16/24bit) 32k/44.1k/48k/88.2k/96k/176.4k/192kHz

・DSD: 2.8MHz (176.4kHz/24bit DoP transmission supported)

●DAC section

・USB DAC: ES9038Q2M×2 manufactured by ESS Technology

・Upconversion (maximum): PCM384kHz/32bit or DSD 24.5MHz

●LAN section

・Terminal: RJ-45 x 1 (1000Base-T)

・MQA decoder: installed

●Clock part

[Internal clock]

・Format: Crystal oscillator

・Number of clocks installed: 2 (44.1kHz system, 48kHz system)

[External clock input]

・Terminal: BNC terminal (gold plated)

・Input frequency: 10MHz

・Input impedance: 50Ω

・Input level: Square wave: equivalent to TTL level, sine wave: 0.5 to 1.0Vrms

●Audio performance

・Frequency characteristics: 10Hz to 80,000Hz (+1/-3dB, PCM 192kHz input, RCA output, DF=off)

・Total harmonic distortion rate: 0.003% or less (PCM 192kHz input, RCA output, DF=off)

・S/N ratio: 110dB or more (PCM 192kHz input, RCA output, DF=off)

●General

・Power supply: AC 100V, 50/60Hz

・Power consumption: 20 W (0.4W during standby)

・Maximum external dimensions (W x H x D): 290 x 84.5 x 248.7 mm (including protrusions)

・Mass: 4.1 kg

・Accessories: Power cord, RCA-mini plug conversion cable, remote control (RC-1330), AAA batteries for remote control x 2, instruction manual (Japanese)
