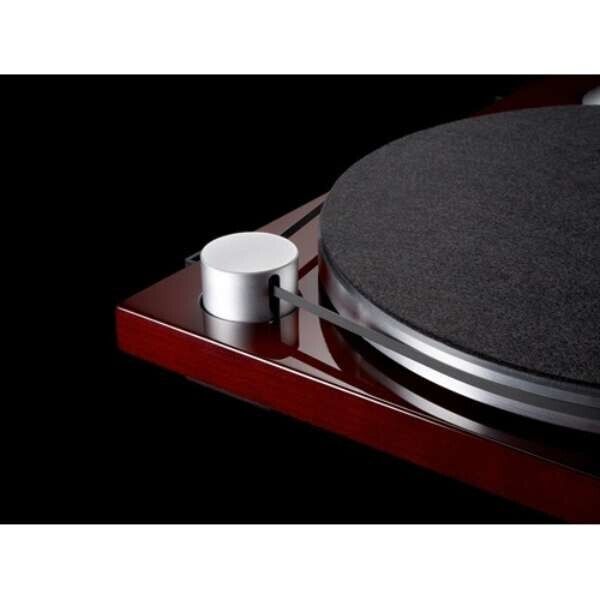

TEAC TN-3B-SE/CH Belt Drive Analog Turntable Cherry NEW

[Turntable section]

●Turntable drive method: Belt drive

●Motor: DC motor

●Rotation speed: 33 1/3rpm, 45rpm

● Wow and flutter: 0.1% or less

●SN ratio: 67dB (A-weighted, 20KHz LPF)

-Turntable: Aluminum die-casting, diameter 30cm

●[Tone arm section]

●Arm type: Static balance type S-shaped tone arm

●Effective arm length: 223mm

●Stylus pressure variable range: 0 to 5g

●Applicable cartridge mass: 3.0g to 12g

●※When using a head shell other than the included one, it weighs between 14g and 23g including the headshell.

[Cartridge part]

●Format: VM type

●Output voltage: 4.0mV (1kHz, 5cm/sec.)

●Stylus pressure: 1.8g to 2.2g (2.0g recommended)

●Cartridge mass: 6.1g

●Attachment head shell mass: 11g (including screws, nuts, and wires)

●*Recommended needle replacement approximately 300 hours (depending on usage environment)

[Output voltage]

●PHONO EQ THRU: 4.0mV (1kHz, 5cm/sec

●PHONO EQ ON: 224mV (-13dBV)

●Output terminal: RCA jack

[General]

●AC adapter power input: AC100V to AC240V 50-60Hz

●Output: DC12V 500mA

●Power consumption standby: 0.5W or less

●On (START): 1.5W or less

●Mass: Approximately 5.0Kg

●Guaranteed operating temperature: 5℃ to 35℃

- External dimensions (WxHxD): 420 x 117 x 356mm (when dust cover is installed)

[accessories]

-Felt mat x 1

-Donut board adapter x 1

●Counterweight x 1

-Head shell x 1 AT-VM95E installed

●Turntable x 1

●Turntable cover x 1 Hinge x 2

●Audio cable x 1

●AC adapter (GPE053A-V120050) x 1

●Instruction manual (Japanese) x 1
