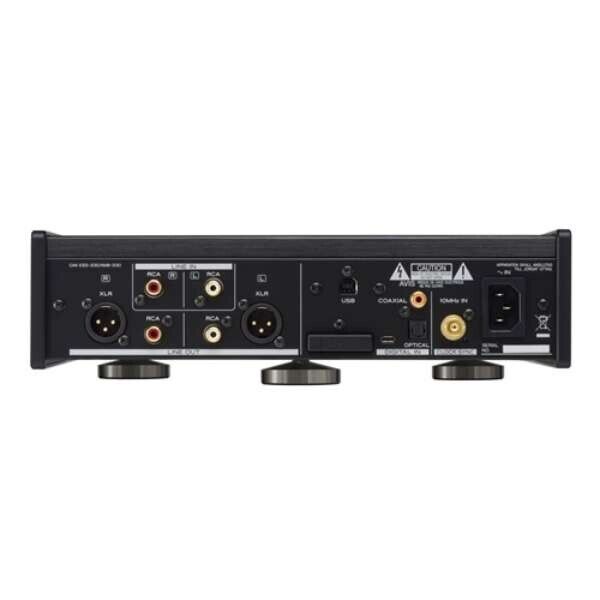

TEAC UD-505-X Black USB DAC Compact Headphone Amplifier 100V NEW
TEAC UD-505-X Black USB DAC Compact Headphone Amplifier 100V NEW
Regular price
$1,189.00 USD
Regular price
Sale price
$1,189.00 USD
Unit price
/
per
Condition: New | Size: 290 x 84.5 x 248.7 mm |
Custom Bundle: No | Color: Black |
Weight: 4.1 kg | Brand: TEAC |
Personalize: No | Form Factor: Headband |
Type: Ear-Cup (Over the Ear) | Unit Type: Unit |
Wireless Technology: Bluetooth | Model: UD-505-X |
Connectivity: USB | Country/Region of Manufacture: Japan |
Unit Quantity: 1 | UPC: Does not apply |
TEAC UD-505-X Black USB DAC Compact Headphone Amplifier 100V
NEW
Description
●Audio input
・USB: USB B terminal USB2.0, asynchronous mode transfer/bulk transfer
・Dedicated playback software: TEAC HR Audio Player (Windows, Macintosh)
・Coaxial digital (rear): RCA pin terminal x 1 (gold plated)
・Input level: 0.5Vp-p
・Input impedance: 75Ω
・Optical digital (rear): Square optical digital terminal (TOS) x 1
・Input level: -24.0 to -14.5dBm peak
・Coaxial digital (front): 3.5mm mini terminal *1 (also used as optical digital input, automatic detection)
・Input level: 0.5Vp-p
・Input impedance: 75Ω *Can be connected to regular coaxial digital output (RCA pin terminal) by using the included RCA-mini plug conversion cable
・Optical digital (front): Optical mini terminal x 1 (also used as coaxial digital input, automatic detection)
・Input level: -24.0 to -14.5dBm peak
・Analog (rear): RCA pin terminal x 1 system (gold plated)
・Input impedance: 24kΩ
・Input sensitivity: 130mV
●Audio output
[XLR Balance]: XLR terminal x 1 system (gold plated)
・Output level setting: fixed (0dB), fixed (+6dB), variable, output off can be selected
・Maximum output level: 2.0Vrms (1kHz, full scale, 10kΩ load, fixed 0dB setting), 4.0Vrms (1kHz, full scale, 10kΩ load, fixed +6dB setting), 12.0Vrms (1kHz, full scale, 10kΩ (at load, variable setting)
・Output impedance: 188Ω
[RCA unbalanced]: RCA pin terminal x 1 system (gold plated)
・Output level setting: fixed (0dB), fixed (+6dB), variable, output off can be selected
・Maximum output level: 2.0Vrms (1kHz, full scale, 10kΩ load, fixed 0dB setting), 4.0Vrms (1kHz, full scale, 10kΩ load, fixed +6dB setting), 6.0Vrms (1kHz, full scale, 10kΩ (at load, variable setting)
・Output impedance: 150Ω
●Headphone output
[Terminal 1]: 6.3mm stereo standard jack x 2 (gold plated)
・Terminal polarity (balanced): Tip: HOT, Ring: COLD, Sleeve: NC (GND)
・Terminal polarity (unbalanced): Tip: L, Ring: R, Sleeve: GND
[Terminal 2]: 4.4mm 5-pole jack "pentaconn" x 1 (gold plated)
・Terminal polarity (balanced): Tip: L+, Ring1: L-, Ring2: R+, Ring3: R-, Sleeve: GND
【Maximum output】:
・Balanced connection: 700mW + 700mW (at 32Ω load)
・Unbalanced connection: 500mW + 500mW (at 32Ω x 1 load), 350mW + 350mW (at 32Ω x 2 loads)
・When connected to active GND: 500mW + 500mW (at 32Ω load)
・Supported impedance: 16-600Ω
Product specifications of TEAC UD-505-X/S
Others ●Supported formats
[USB input]
・PCM: (16/24/32bit) 44.1k/48k/88.2k/96k/176.4k/192k/352.8k/384k/705.6k/768kHz
・DSD: 2.8M/5.6M/11.2M/22.5MHz
[Coaxial digital input]
・PCM: (16/24bit) 32k/44.1k/48k/88.2k/96k/176.4k/192kHz
・DSD: 2.8MHz (176.4kHz/24bit DoP transmission supported)
[Optical digital input]
・PCM: (16/24bit) 32k/44.1k/48k/88.2k/96k/176.4k/192kHz
・DSD: 2.8MHz (176.4kHz/24bit DoP transmission supported)
●DAC section
・USB DAC: ES9038Q2M×2 manufactured by ESS Technology
・Upconversion (maximum): PCM384kHz/32bit or DSD 24.5MHz
●Bluetooth
・Bluetooth version: 4
・Output class: Class2 (reaching distance approximately 10m)
・Supported profiles: A2DP, AVRCP
・A2DP content protection: SCMS-T
・Supported codecs: LDAC, QualcommR aptX HD, aptX, AAC, SBC
・Number of pairing memory devices: Up to 8 devices
●Clock part
[Internal clock]:
・Format: Crystal oscillator
・Number of clocks installed: 2 (44.1kHz system, 48kHz system)
[External clock input]:
・Terminal: BNC terminal (gold plated)
・Input frequency: 10MHz
・Input impedance: 50Ω
・Input level: Square wave: equivalent to TTL level, sine wave: 0.5 to 1.0Vrms
●Audio performance
・Frequency characteristics: 10Hz to 80,000Hz (+1/-3dB, PCM 192kHz input, RCA output, DF=off)
・Total harmonic distortion rate: 0.002% or less (PCM 192kHz input, RCA output, DF=off)
・S/N ratio: 110dB or more (PCM 192kHz input, RCA output, DF=off)
●General
・Power supply: AC 100V, 50/60Hz
・Power consumption: 18 W (0.4W during standby)
・Maximum external dimensions (W x H x D): 290 x 84.5 x 248.7 mm (including protrusions)
・Mass: 4.1 kg
・Accessories: Power cord, RCA-mini plug conversion cable, remote control (RC-1330), AAA batteries for remote control x 2, foot cushion x 3, instruction manual (Japanese)
