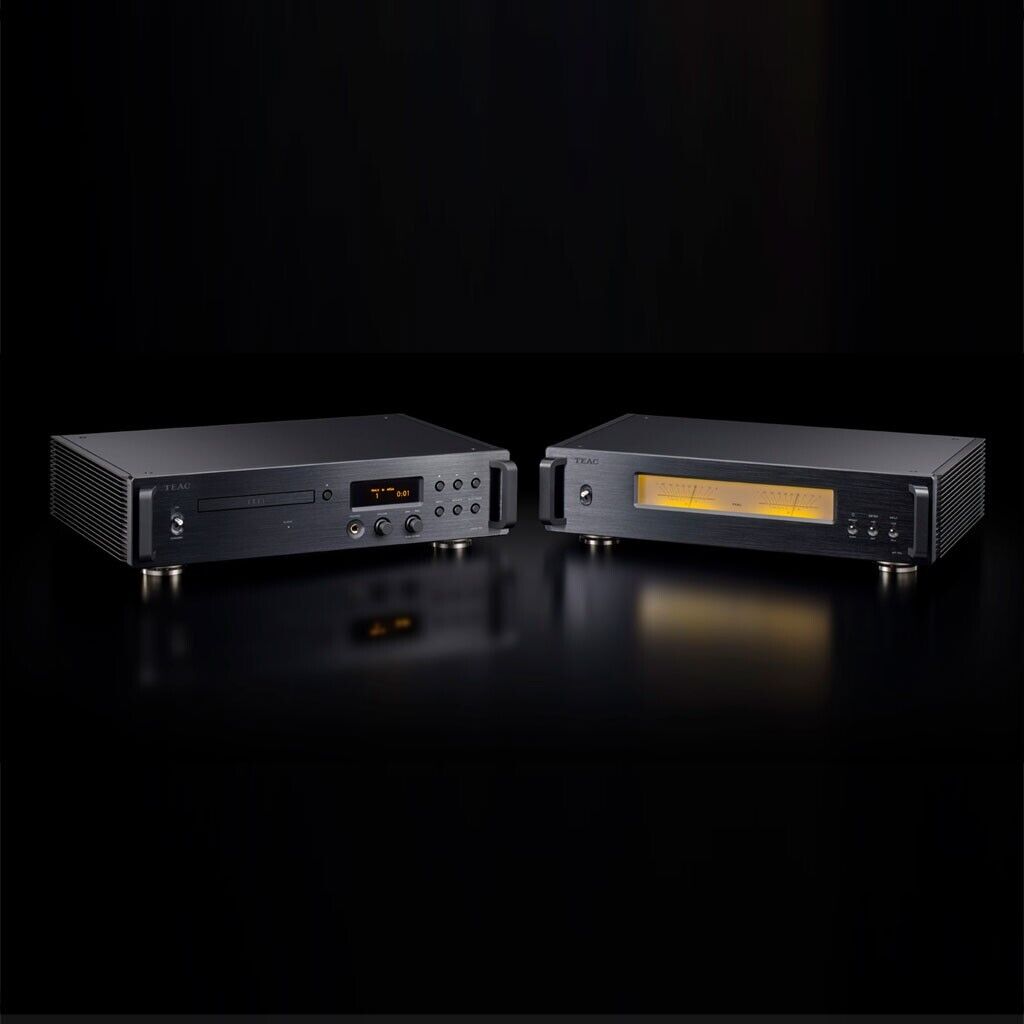

TEAC VRDS-701T-B Transpoter black 70th anniversary model Digital Audio 100V NEW

CD player section

・Playable discs Audio CDs, CDs (CD-R/CD-RW compatible) *8cm CDs cannot be played.

〇 Frequency characteristics 5Hz to 80kHz (+1dB, –6dB)

〇 S/N ratio 108dB (A-weight, 1kHz)

〇 Total harmonic distortion rate 0.002% (1kHz, LPF: 20Hz to 20kHz)

[Analog audio output]

■ Balance

〇 Terminal XLR terminal x 1 system

〇 Maximum output level

・2.0Vrms (1kHz, full scale, 10kΩ load, fixed 0dB setting)

・4.0Vrms (1kHz, full scale, 10kΩ load, fixed +6dB setting)

・12Vrms (1kHz, full scale, 10kΩ load, variable settings)

〇 Output impedance 220Ω

■ Unbalanced

〇 Terminal RCA pin terminal x 1 system

〇 Maximum output level

・2.0Vrms (1kHz, full scale, 10kΩ load, fixed 0dB setting)

・4.0Vrms (1kHz, full scale, 10kΩ load, fixed +6dB setting)

・6Vrms (1kHz, full scale, 10kΩ load, variable settings)

〇 Output impedance 180Ω

[Digital audio input]

〇 USB

・Terminal: USB C terminal x 1 (USB2.0 or higher)

・Supported formats

PCM 16/24/32bit 44.1k/48k/88.2k/96k/176.4k/192k/352.8k/384kHz

DSD 2.8M/5.6M/11.2M/22.5MHz

〇 Coaxial digital

・Terminal RCA pin terminal (gold plated) x 1 system

・Input level 0.5Vp-p

・Input impedance 75Ω

・Supported formats

PCM 16/24bit 32k/44.1k/48k/88.2k/96k/176.4k/192kHz

DSD 2.8MHz

〇 Optical digital

・Terminal Square optical digital terminal (TOS) x 1 system

・Input level –24.0 to –14.5dBm peak

・Supported formats

PCM 16/24bit 32k/44.1k/48k/88.2k/96k/176.4k/192kHz

DSD 2.8MHz

[Digital audio output]

〇 Coaxial digital

・Terminal RCA pin terminal (gold plated) x 1 system

・Output level 0.5Vp-p

・Output impedance 75Ω

〇 Optical digital

・Terminal Square optical digital terminal (TOS, JEITA RC5720C) x 1 system

[Headphone output]

・Terminal 6.3mm stereo standard jack (gold plated) x 1

〇 Maximum practical output 500mW + 500mW (at 32Ω load)

[Clock sync input]

〇 Terminal BNC terminal (gold plated) x 1

〇 Input frequency 10MHz

〇 Input impedance 50Ω

〇 Input level

・Equivalent to square wave TTL level

・Sine wave 0.5 to 1.0Vrms

[External control]

〇 Trigger input (12V TRIGGER IN)

・Terminal 3.5mm monaural mini jack x 1

・Input level 12V, 1mA

〇 Trigger output (12V TRIGGER THRU)

・Terminal 3.5mm monaural mini jack x 1

・Output level 12V

・Maximum supply current 100mA

〇 Power supply AC100V, 50/60Hz

〇 Power consumption 20W

〇 Standby power consumption 0.4W

〇 External dimensions 444 (W) x 111 (H) x 333 (D) mm (including protrusions)

〇 Mass 11.1kg

〇 Accessories Power cord, remote control (RC-1338), AAA batteries for remote control x 2, foot cushion x 3, instruction manual (Japanese)
