◁ERotation speed: 33 1/3rpm, 45rpm, 78rpm
◁EStarting torque: 0.18 N ・ m (1.8 kg ・ cm)
◁EStarting characteristics: 0.7s (at 33 1/3 rpm)
◁EWow and flutter: 0.025% W.R.M.S.
◁ETone arm type: Universal S-shaped tone arm Static balance type
◁EEffective arm length: 230mm
◁EOverhang: 15mm
◁ETracking error angle: + 2 ° 32'(30cm record outer circumference) / + 0 ° 32' (30cm record inner circumference)
◁EApplicable cartridge mass
・ When the auxiliary weight is not used: 5.6 to 12.0 g, 14.3 to 20.7 g (including head shell)
・ When using auxiliary weights: 10.0 to 16.4 g, 18.7 to 25.1 g (including head shell)
◁EOutput terminal: PHONO terminal x 1, PHONO ground terminal x 1, LINE output terminal x 1

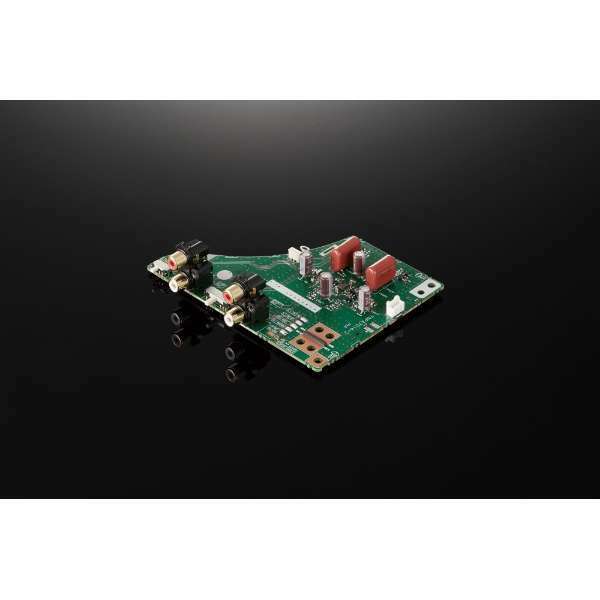

[Phono equalizer part]
◁EGain: 37dB
[Cartridge part] (ortofon 2M Red)
◁EFormat: MM type
◁EAppropriate stylus pressure: 1.8g
◁EPower supply: AC100V, 50 / 60Hz
◁EPower consumption: 8.0W (when power is on) / approx. 0.2W (when power is off)
◁EExternal dimensions (width x height x depth): 453 x 169 x 372 mm
◁EMass: Approximately 9.9kg
◁EAccessories: Turntable sheet x 1, Dust cover x 1, EP record adapter x 1, Balance weight x 1, Auxiliary weight x 1, Shell with cartridge x 1, PHONO cable x 1, PHONO ground wire x 1, Power supply Code x 1
