TRIODE TRV-88XR Vacuum tube integrated amplifier Silver NEW

The TRV-88XR is an evolved model that makes the popular TRV-88SER even easier to use.

The chassis is now equipped with a bias meter on the top, making it easy to adjust the bias. You can also enjoy the difference in sound by flipping a switch and replacing the output tube from KT88 to EL34. The power supply is a powerful power supply that combines a large toroidal power transformer and SiC Schottky barrier diodes, firmly supporting a high output of 35W + 35W.

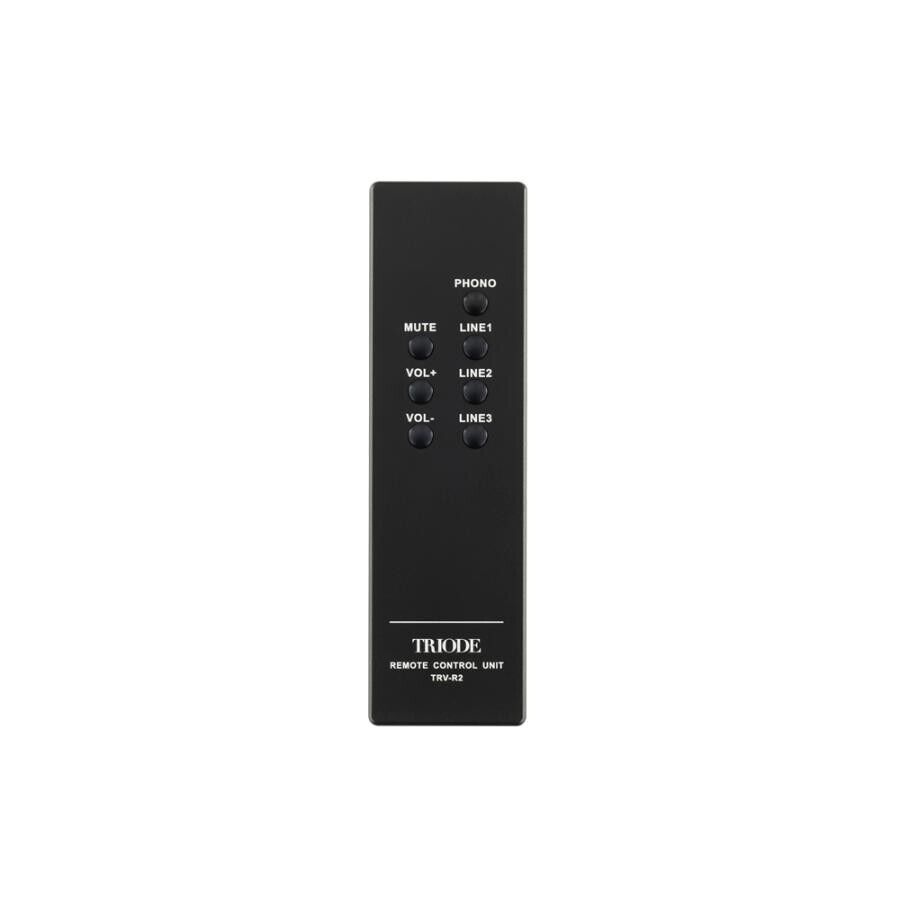

The newly designed remote control, which is heavy and luxurious and machined from aluminum, allows you to adjust the volume, mute, and switch inputs. In addition to the three LINE inputs, it also has a PHONO (MM type compatible) input equipped with a phono equalizer.

—

Circuit type: Class AB push-pull

Vacuum tubes used: KT88 x 4, 12AX7 x 1, 12AU7 x 2

Bias method: Fixed bias

Rated output: 35W+35W (8Ω)

Frequency response: 10Hz to 90kHz (-4dB)

Signal-to-noise ratio: 90dB

Input terminals: MM x 1, LINE x 3

Input sensitivity: MM 2.5mV/LINE 340mV

Input impedance: MM 47kΩ/LINE 100kΩ

Speaker output terminals: 1 (4 to 8Ω)

Headphone output terminal: 6.3mm standard jack

Headphone circuit: Vacuum tube

Remote control functions: Volume, mute, input switching

Power consumption: 280W, 120W when no signal is present

Size: Width 345 x Depth 320 x Height 185mm

Weight: 17kg

Accessories: Remote control, vacuum tube bonnet, power cable
