Description
FM stereo tuner
Model: T-110
IHF practical sensitivity 1.7μV
SN ratio 50db-RF input sensitivity mono:2.8μV
stereo:36μV
Ultimate SN ratio mono:77dB
stereo:72dB
2 signal selectivity 70dB
Amplitude modulation suppression degree 53dB
Capture ratio 1.3dB
Image ratio 110dB
IF interference rejection ratio 110dB
Frequency characteristics 20Hz to 15kHz
Total harmonic distortion rate mono: 0.06% (1kHz)
stereo:0.08%(1kHz)
Output voltage 1V
Dimensions Width 485x Height 114x Depth 243mm
Weight 7.6kg
Integrated amplifier

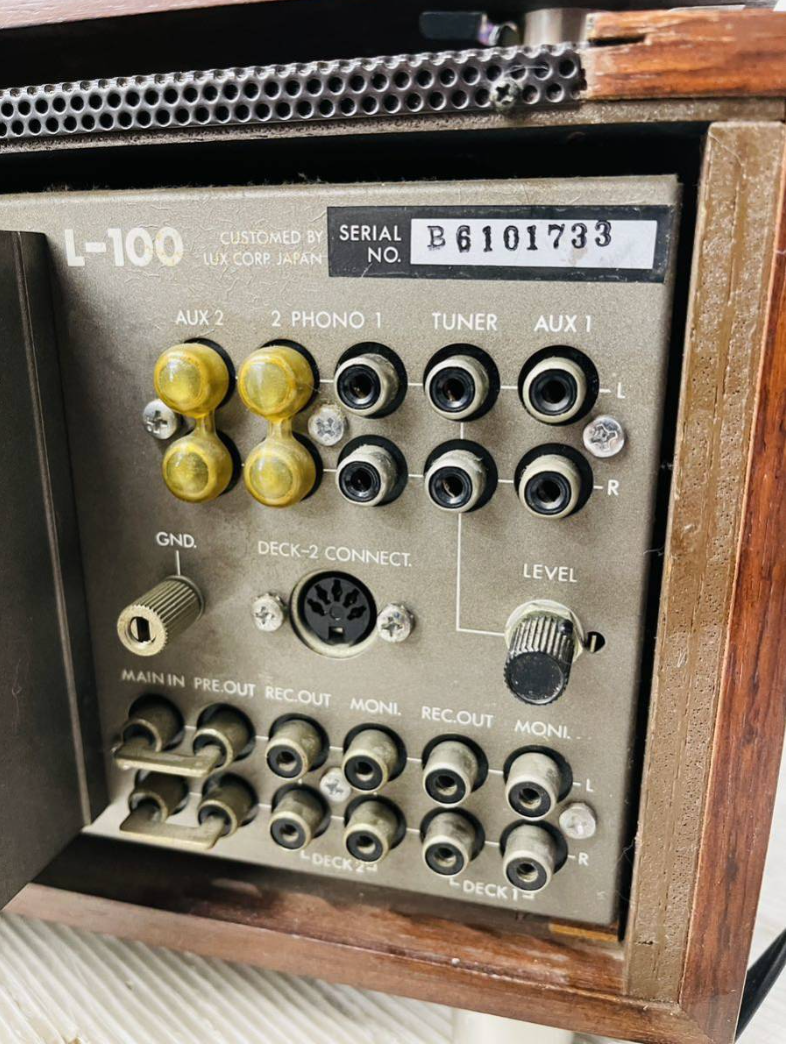

Model: L-100
Continuous effective output 110W + 110W (8Ω, both channel operation)
Total harmonic distortion rate 0.03% or less (8Ω, 110W)
Cross-modulation distortion rate 0.03% or less (8Ω, 110W, 70Hz:7kHz=4:1)
Output bandwidth 5Hz~40kHz -1dB
Input sensitivity Phono1, 2:3mV (±5dB variable)
Tuner: 180mV (variable)
Aux1, 2: 180mV
SN ratio Phono:65dB or more
Tuner, Aux: 80dB or more
Tone control LUX method NF type with curved point switching
Attachment electronic touch mute circuit
linear equalizer
High and low filters
low boost circuit
Input sensitivity adjustment function
Semiconductor transistors used: 107 pieces
Diode: 24 pieces
Zener diode: 6 pieces
Barista: 13 pieces
LED: 1 piece
Dimensions Width 480x Height 175x Depth 350mm
Weight 19kg
