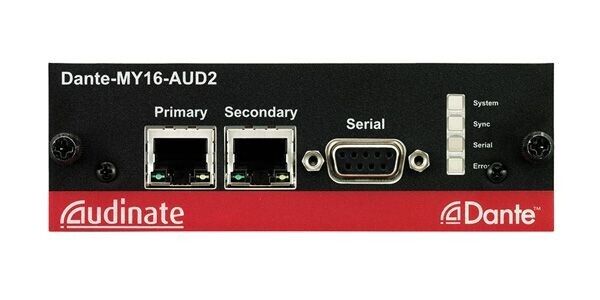

YAMAHA Audinate Dante-MY16-AUD 2 Mini-YGDAI Network Audio Interface Card NEW

Dante-MY16-AUD2 enables connection to a Dante audio network by attaching it to Yamaha/digital mixers, processors, and power amplifiers equipped with a Mini-YGDAI card slot. It supports 16ch audio transmission and reception (8 channels at 88.2/96kHz), and also supports redundant connections and daisy chain connections.

<Specifications>

■Sampling frequency: 44.1kHz, 48kHz, 88.2kHz and 96kHz

■Pull up/down width: +4.1667, +0.1, -0.1, and - 4.0 %

■Number of channels: 16IN / 16OUT(44.1kHz and 48kHz) or 8IN / 8OUT(88.2kHz and 96kHz)

■Bit length: 16, 24 or 32-bit PCM

■Network ports: 2 x Gigabit (1000Mbps) Ethernet RJ45 connectors

■Redundancy: Seamless switching is possible with redundant connections using Primary/Secondary ports.

■Daisy chain connection: Realize multiple connections by daisy chain

■HA remote: Supports HA remote function, allowing control from Yamaha digital mixing console

■Expansibility: Expandable up to 64in/64out using 4 Dante-MY16-AUD2

<Compatible Yamaha products>

■Digital mixer: CS-R10, DSP-R10, RPio622, CL5/3/1, QL5/1, PM5D, DSP5D, M7CL, LS9, DM2000, DM1000, 02R96, 01V96, 01V96i

■Interface: RSio64-D

■Processor: MRX7-D, MTX5-D, DME24N, DME64N

■Power amplifier: TX4n, TX5n, TX6n
