■Main Features

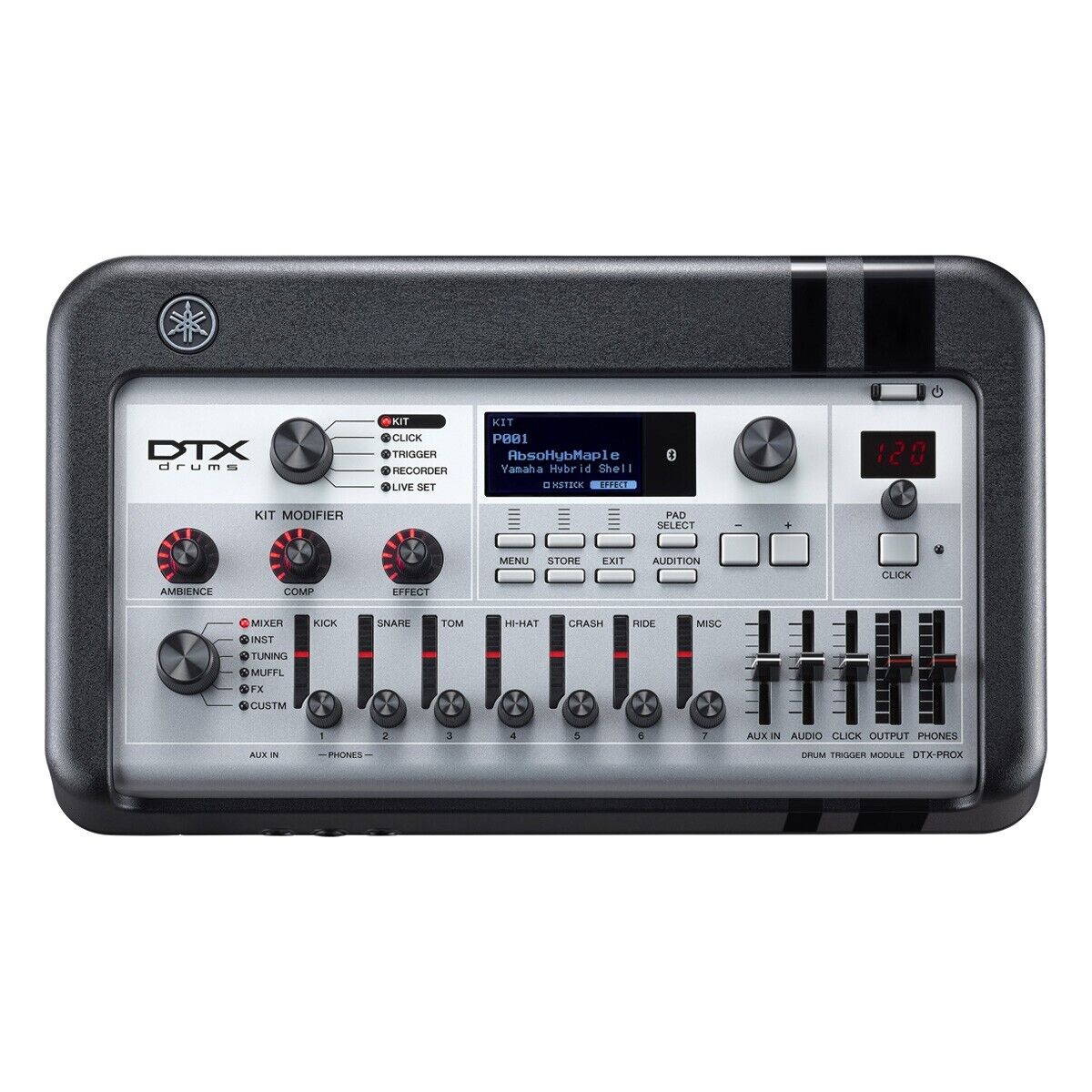

The DTX-PROX is a completely new flagship sound source that allows any drummer to intuitively customize and express the highest quality sound according to their own creativity.

◎ Faithfully reproduces the authentic sounds and ambiences recorded in famous studios

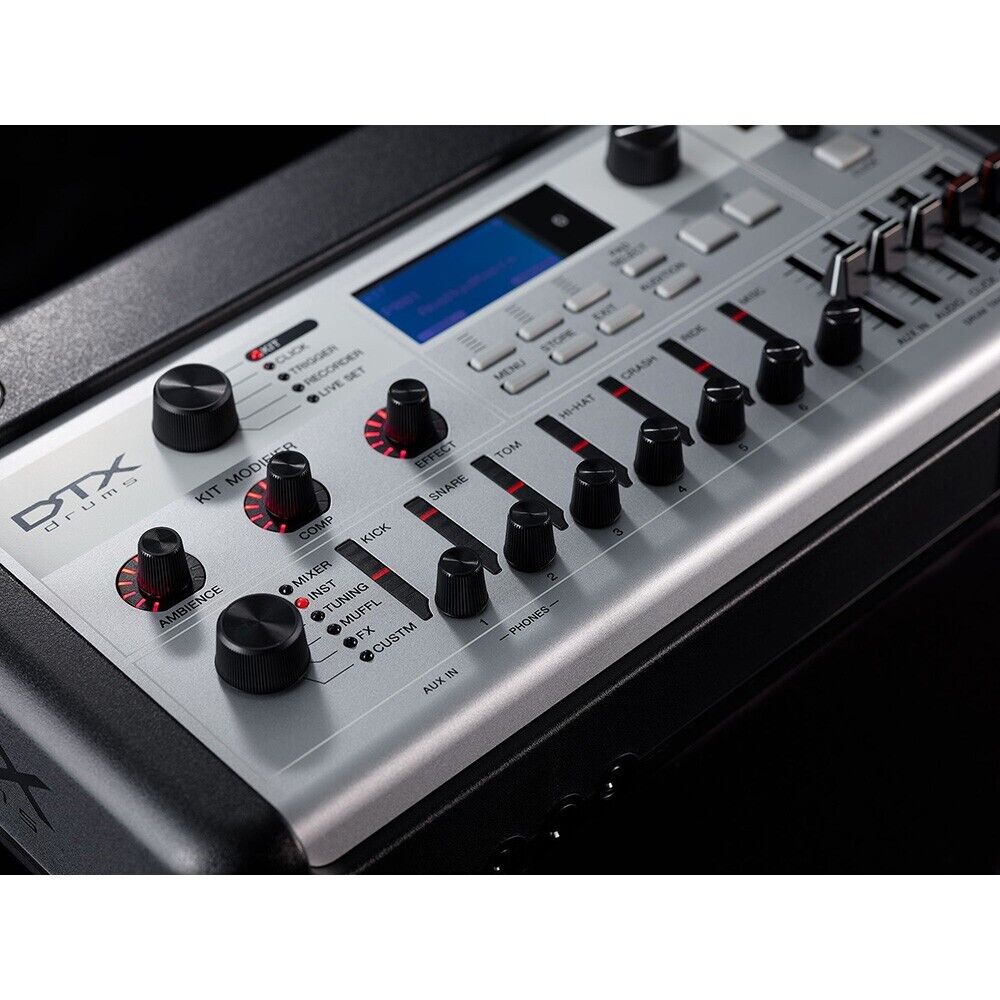

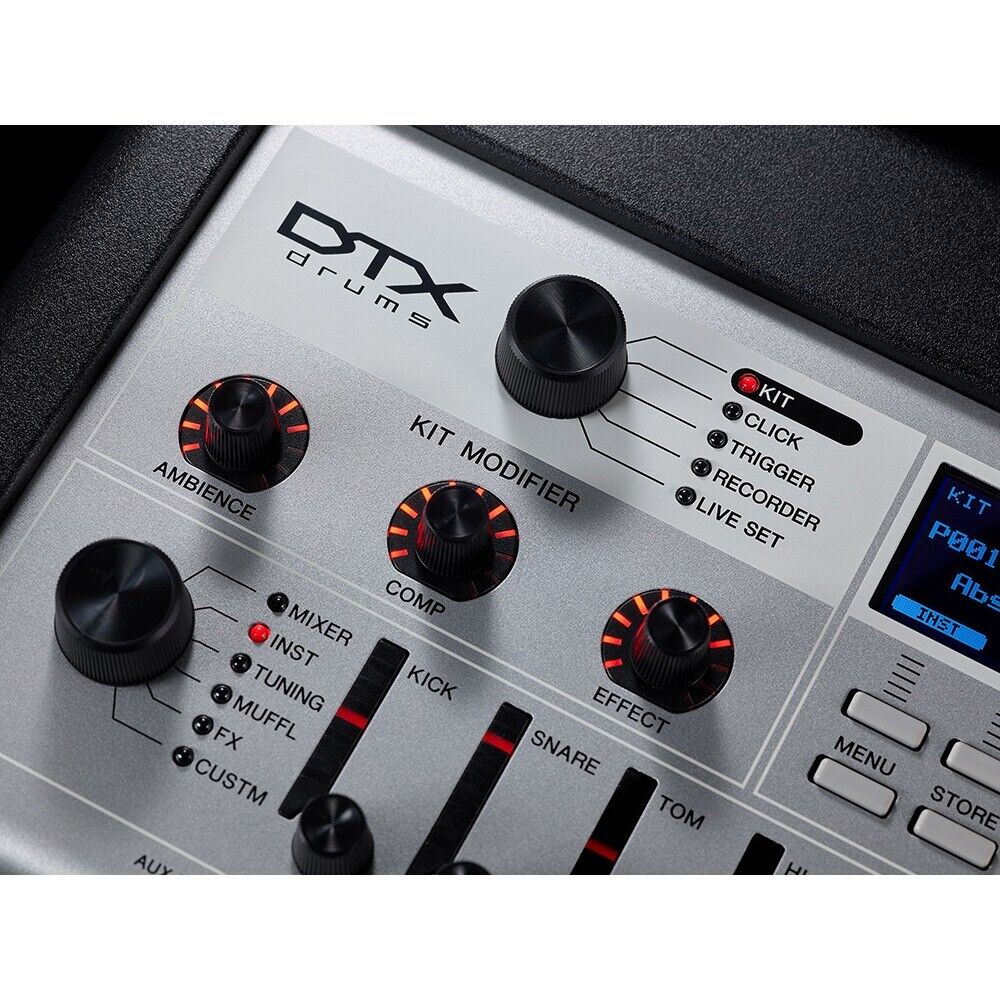

◎ AMBIENCE, COMP, and EFFECT KIT MODIFIER knobs allow you to create your own unique sound

◎ LED rotary fader allows you to intuitively and quickly change various settings

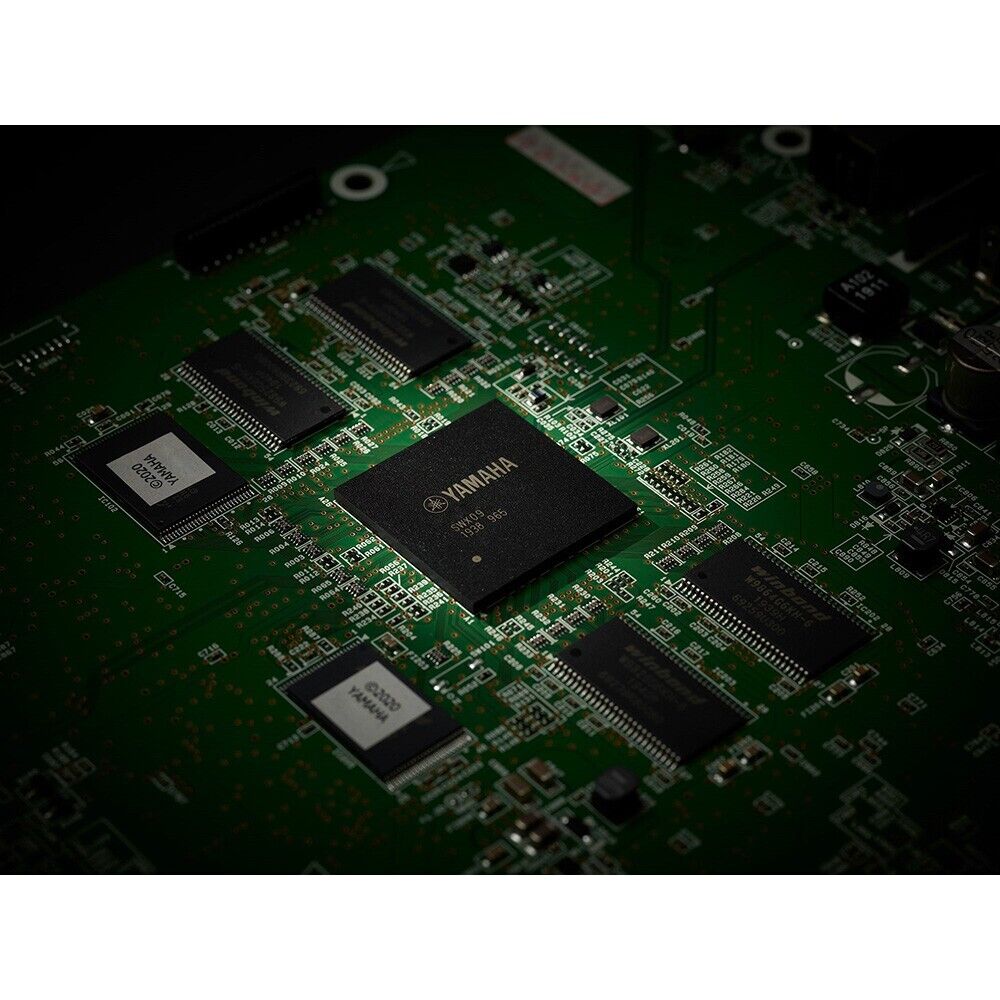

◎ High-performance headphone amplifier circuit that uses many electrical components dedicated to audio in various places

◎ INDIVIDUAL OUT terminals that can output up to 8 sounds individually

◎ Rear AUX IN terminal that can input monitor sounds from a PA system and other instrument sounds

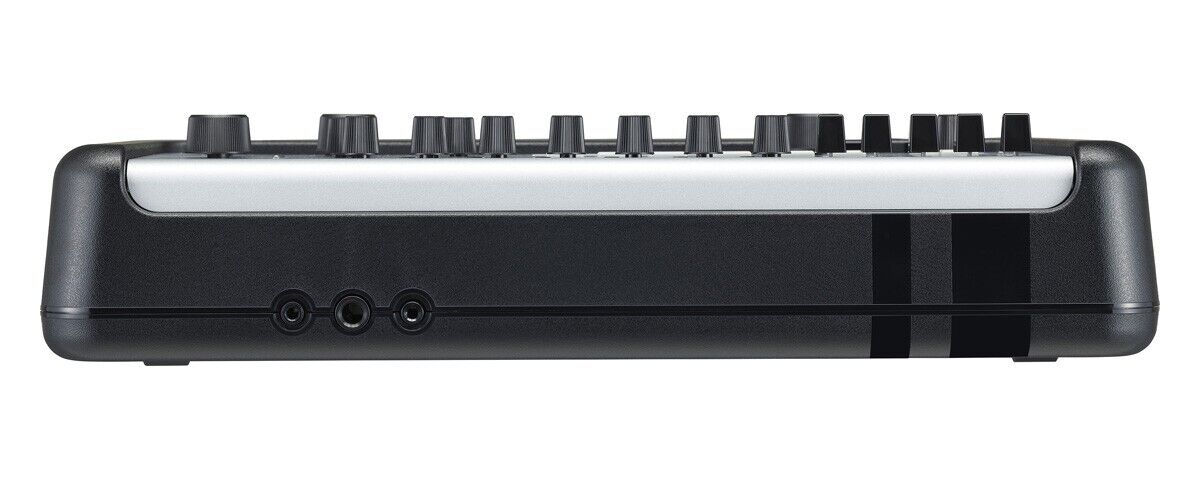

◎ Front AUX IN terminal optimized for connecting music playback devices such as smart devices

◎ Highly flexible routing, such as outputting click and AUX IN sounds only to headphones

◎ USB Class Compliant, can be directly connected to a PC or smart device to send and receive audio data

◎ Using the Bluetooth function, you can wirelessly connect to a smart device, portable music player, or PC and enjoy playing drums along with the audio. ◎By using a USB memory stick (sold separately), you can play and record audio data from devices connected via Bluetooth, AUX cable, or USB cable, and record your own performance over the song being played.

＜Sound source＞

■Sound source method: AWM2

■Maximum polyphony: 256 voices

■Number of effect types:

・Per instrument: EQ / Comp / Transient / Insertion (*1)

・Per kit: Ambience / Effect 1 / Effect 2 / Master Comp / Master Effect

・Overall: Master EQ / Phones EQ

(*1)Insertion only for specific instruments

<Kit>

■Number of kits: Preset: 70 kits, User: 200 kits

■Number of tones: 733 tones

<Click>

■Number of user clicks: 30

■Tempo: 30-300/min, tap tempo function

■Beat: 1/4-16/4, 1/8-16/8, 1/16-16/16

■Timing: Accent, quarter note, eighth note, 16th note, eighth note triplet

■Other: Independent volume adjustment, waveform import, timer

<Training>

■Number of training: 10 types

■Number of training songs: Preset: 37 songs, User: 1 song

<Wave>

■Number of loadable waves: 1,000

■Number of loadable waves/maximum possible sample time: 50 minutes 40 seconds (44.1 kHz, 16 bit, mono), 25 minutes 20 seconds (44.1 kHz, 16 bit, stereo)

■Sample format: WAV

＜Recorder＞

■Recording time

・Built-in memory: Maximum 90 seconds

・USB flash memory: Maximum 90 minutes per file

■Format: Recording/playback: WAV (44.1 kHz, 16 bit, stereo)

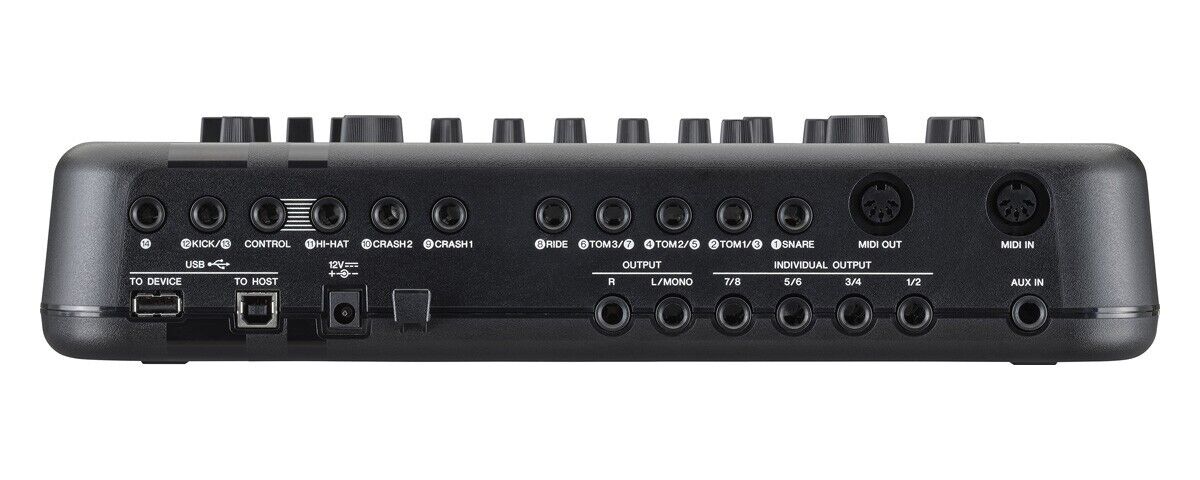

＜Connection terminal＞

・Power supply: DC IN (+12V)

・Headphones: Headphones (1 standard stereo phone jack, 1 stereo mini jack)

・External input: AUX IN (1 stereo mini jack, 1 stereo standard phone jack)

・External output: OUTPUT L / MONO, R (1 standard phone jack each), INDIVIDUAL OUTPUT 1/2, 3/4, 5/6, 7/8 (1 stereo standard phone jack each)

・USB: USB TO DEVICE, USB TO HOST

・MIDI: MIDI OUT ×1, MIDI IN ×1

・Trigger input: 10 (standard stereo phone jack, HI-HAT CONTROL excluding), Maximum number of pads that can be connected: 14 (when connected with Y-shaped cable)

＜Other＞

■Bluetooth®: Audio

■Display: Full-dot LCD (128 x 64 dots)

■Power consumption: 13W

■Dimensions: 342 (W) x 196 (D) x 66 (H) mm *Not including protrusions

■Weight: 2.0 kg

■Accessories: Power adapter (PA-150 or equivalent Yamaha recommended product (output: DC 12V, 1.5 A)), warranty card, instruction manual, module holder, module holder fixing screws: 4 pieces, Cubase AI Download Information
