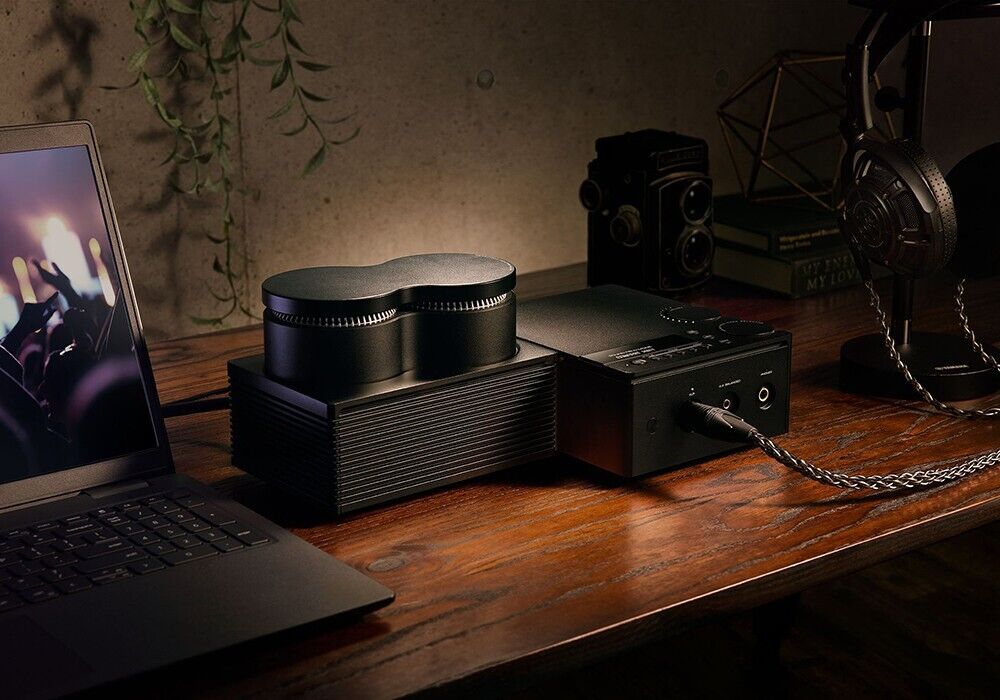

YAMAHA HA-L7A(B) High end Headphone Amplifier DAC NEW

Aiming for the ultimate TRUE SOUND in headphone listening, Yamaha has created a headphone amplifier that delivers true audiophile performance. Our passion for constant creation and innovation has led us to aim for the height of sound for over 30 years by combining superior HiFi audio technology with advances in sound field creation using AV receivers. Now, use this unique headphone amplifier ``HA-L7A'' to fully experience the emotion and excitement of all kinds of entertainment.

・Yamaha's unique floating and balanced power amplifier technology optimized for sound experience with headphones

・Uses ESS D/A converter ES9038PRO, which enables high-quality audio output.

・Two toroidal transformers realize low-frequency expression with a sense of scale.

・SOUND FIELD mode increases immersion in any content

・Pure direct mode that allows you to enjoy even the subtlest nuances of music

・Both elegant design and high rigidity

・5 floating metal legs for excellent stability and vibration suppression

・Highly visible organic EL display

・Color/Finish (B) Black

■Main specifications

Rated output (1kHz, 0.01%THD,32Ω)

Balanced: 1000mW+1000mW

Unbalanced: 1000mW+1000mW

Frequency characteristics HP OUTPUT: 4Hz to 80KHz, -3dB

Total harmonic distortion rate 0.003% or less (Digital IN 1 kHz, 300mW, 32Ω)

SN ratio 120dB or more

Input sensitivity (Analog IN) HP OUT: 1.4V, PRE OUT: 0.2V, LINE OUT: 2.0V

Impedance RCA: 50kΩ

■Input terminal

Analog audio RCA1

Digital audio Optical 1 (PCM 2 channels: 32/44.1/48/88.2/96kHz, 16/24 bit), Coaxial 1 (PCM 2 channels: 32/44.1/48/88.2/96/176.4/192kHz, 16/24 bit )

USB port 1 (Type-B) (PCM 2 channels: 44.1/48/88.2/96/176.4/192/352.8/384 kHz, 16/24/32 bit, DSD 2 channels: 2.8MHz(DSD64)/5.6MHz( DSD128)/11.2MHz(DSD256): ASIO Native and DoP compatible)

■Output terminal

Pre-out/line out Analog L/R (RCA) 1, Analog XLR 3-pole 1

Headphones standard 6.3mm 1, balanced 4.4mm 1, XLR4 pole 1

■Amplifier

Method Discrete floating & balanced

Impedance 8~600Ω

Gain switching High: 12dB, Low: 0dB

■Audio function

Pure Direct DSP Circuit Bypass

L/R balance -10.0dB to +10.0dB (0.5dB step)

DAC LOCK RANGE LEVEL 1/2/3

DAC Filter FAST LINEAR/SLOW LINEAR/FAST MINIMUM/SLOW MINIMUM/APODIZING FAST/HYBRID FAST/ BRICKWALL/SHORT LATENCY

Volume -80.0dB to 0.0dB (0.5dB steps), Mute

INITIAL Volume OFF (Volume when the power was last turned off)/MUTE/-70dB/-60dB/-50dB/-40dB

LIMIT volume -20dB (when HP GAIN setting is LO), -35dB (when HP GAIN setting is HI)

[PRE/LINE OUT] switch [PRE OUT] or [LINE OUT] can be selected

■Audio playback mode

Sound field mode STRAIGHT/CINEMA/DRAMA/MUSIC VIDEO/CONCERT HALL/OUTDOOR LIVE/BGM

Pure Direct ON/OFF

■Main body

User interface Supported language (menu display language): English

Power consumption 19W

Standby power consumption 0.2W

External dimensions (width x height x depth) 333W x 133H x 189Dmm (including legs and protrusions)

Mass 5.3kg

Accessories: Remote control, 2 AA batteries, power cord, USB cable (TypeA-TypeB, 1.5m)
