YAMAHA MGP24X MGP24X Series 24-Channel Premium Mixing Console Analog Mixer NEW

A 24-channel analog mixer that combines high-quality analog circuits with the latest digital technology. Equipped with a ClassA mic pre, "X-pressive EQ" that reproduces vintage EQ, and SPX effects, it enables high-dimensional mixing, as well as iPhone playback and USB memory recording. In the digital domain, it's a true hybrid mixer that allows editing from a PC or iPhone.

■Type: Analog mixer

■ Number of monaural channels: 16

■ Number of stereo channels: 4

■ EQ: 3 bands

■AUX: 4 + built-in FXx2

■ Group (bus): 4

■ Digital effects: 2

■ Dimensions (W x H x D): 819 x 169 x 565mm

■Weight: 15.5kg

■ Details:

~From the manufacturer site~

Newly tuned Discrete Class A mic preamp "D-PRE" that uses an inverted Darlington circuit to achieve unprecedented fatness and luster, and "X-pressive EQ" that reproduces the characteristics of a famous vintage EQ with high precision Powered by Behind the analog controls, a powerful DSP made in-house performs complete digital processing, realizing sound creation while maintaining high-quality sound quality, and intuitive sound control is also possible by connecting an iPhone or iPod.

Equipped with a newly tuned Discrete Class A mic preamp "D-PRE" that uses an inverted Darlington circuit.

・Equipped with "X-pressive EQ" that reproduces the characteristics of vintage EQ, which is said to be a masterpiece, with high precision.

・Equipped with a further evolved 1-knob comp equipped with an LED indicator.

・Equipped with high-quality REV-X and standard SPX dual effects.

Equipped with a variety of functions with a stereo hybrid channel equipped with DSP.

・"MGP Editor" is available to enable intuitive settings using an iPhone/iPod.

・A newly designed metal chassis that achieves robustness and low noise is adopted.

・Dual Digital Effects - Equipped with high-quality reverb "REV-X" and multi-effect "SPX" boasting a high track record.

・Equipped with graphic EQ as standard for STEREO OUT.

・Equipped with a "USB device recorder" function that enables recording and playback with simple operations. USB memory can be connected directly to the mixer.

・16 Mic inputs (48 V phantom power and HPF on each channel)

・24Line input (16 mono + 4 stereo)

・Equipped with a dedicated input terminal that supports iPhone/iPod digital connection.

・4 AUX Sends & 2 FX Sends - STEREO OUT with graphic EQ as standard.

・4 Group Bus, MONO & Stereo Bus

■ Input terminal

MIC: 16

LINE: 16 mono + 4 stereo

CH INSERT IN: 16

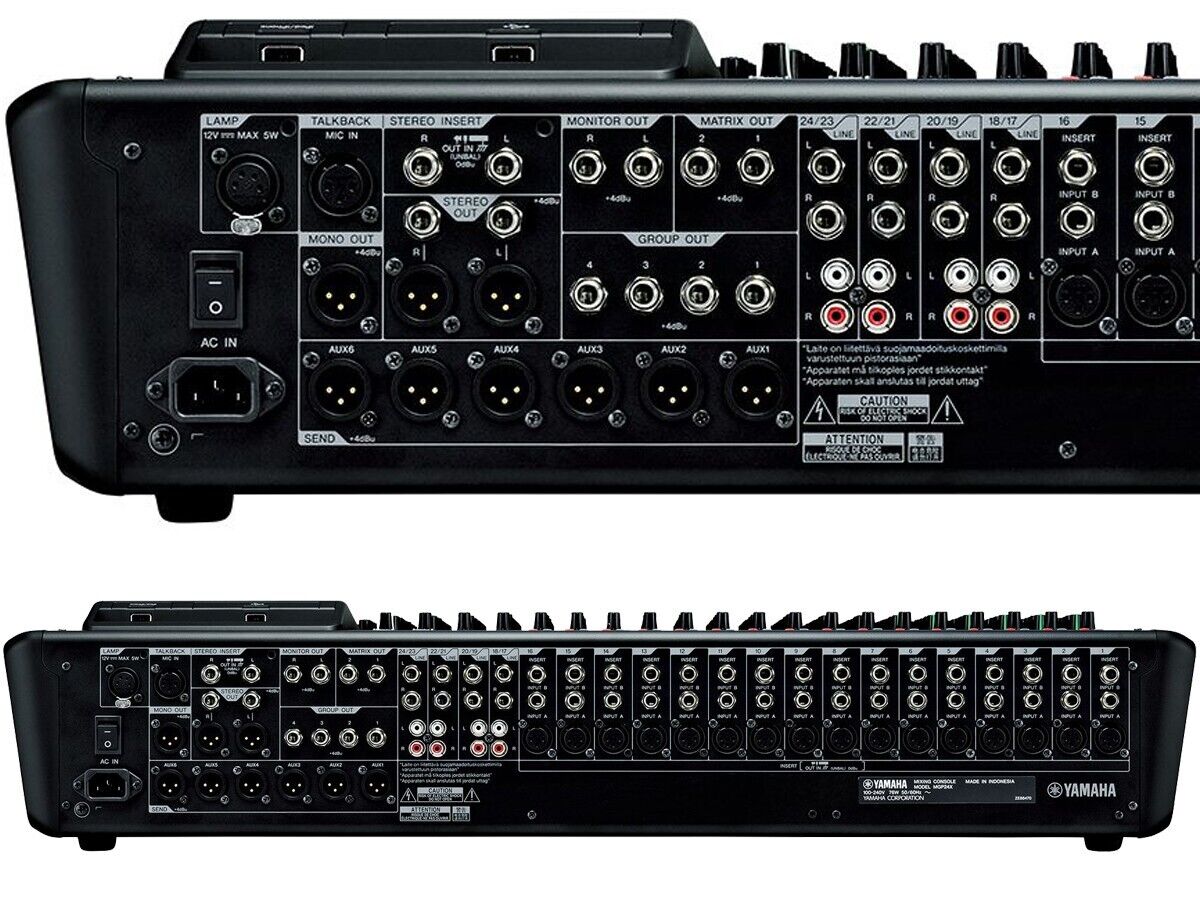

■ Output terminal

STEREO OUT: 1

AUX SEND: 6

CH INSERT OUT: 16

MONITOR OUT: 1

GROUP OUT: 4

PHONES: 1

ST CH INSERT: 1

MATRIX OUT: 2

MONO OUT: 1

■ Built-in digital effector

FX1:REV-X:8 program parameter control

FX2:SPX:16 program parameter control
