YAMAHA Montage M7 76-key Synthesizer NEW

For synthesizers, keyboardists, and pianists who skillfully manipulate the overflowing unknown sounds to create new music

Three sound sources, "AN-X" that reproduces warm vintage analog synth sounds, "FM-X" cutting-edge FM synth, and "AWM2" that reproduces ultra-realistic instruments, deliver amazing sound.

The addition of "Motion Control" makes it possible to incorporate even more unique expression into music production.

Unlike conventional hardware synthesizers, the MONTAGE M7 seamlessly connects stage and studio workflows by connecting and integrating with a computer.

The MONTAGE M7 is a 76-key model that is easy to use for professional keyboardists who make heavy use of splits and layers.

The MONTAGE M7 brings a new era of sound, control, and workflow to musical expression.

[Specifications]

■ Keyboard

Number of keys: 76 keys FSX keyboard (with initial touch/aftertouch)

■ Sound source section

Sound source method: Motion Control Synthesis Engine AMW2: Maximum 128 elements FM-X: 8 operators, 88 algorithms AN-X: 3 oscillators, 1 noise

Maximum polyphony: AWM2: 256 voices (both stereo/mono waveforms), FM-X: 128 voices, AN-X: 16 voices

Number of multitimbres: 16 built-in sound source parts, audio input part (A/D*1, USB*1) *1 stereo part

Waveform memory presets: Equivalent to 10GB (16-bit linear conversion), User: 3.7GB

Number of performances: 3,369

Filters: 18 types

Effects: Reverb x 12 types, Variation x 88 types, Insertion A x 88 types * 2, Insertion B x 89 types * 3, A/D part insertion 83 types, Master effect x 26 types, * 2 A/D part insertion is 83 types <Each effect type has a preset program> Master EQ (5 bands), 1st part EQ (3 bands), 2nd part EQ (2 bands), * 3 Parts 2 to 16 are 88 types

■ Sequencer section

[Capacity]

1 pattern/song: Approximately 130,000 notes

Store area: Approximately 520,000 notes (pattern), approximately 520,000 notes (song)

Note resolution: Quarter note/480

[Pattern]

Number of patterns: 128 patterns

Tracks: 16 sequencer tracks, tempo track, scene track

Recording method: Real-time replace, real-time overdub, real-time punch

Playback: MONTAGE original format, SMF format 0,1

[Arpeggiator]

Parts: Up to 8 parts can be on simultaneously

Preset: 10,922 types or more

User: 256 types

Tempo (BPM) 5 to 300

Other

Number of live sets Preset: 128 or more, User: 2,048

Main controls: Master volume, A/D input gain knob, pitch bend wheel, modulation wheel, ribbon controller, control slider x8, knob x8, super knob, display knob x6, portamento knob, data dial, assignable switch x2, MSEQ trigger switch, portamento switch, keyboard hold switch, ribbon controller hold switch, Main screen display 7-inch wide VGA TFT color LCD (with touch panel), sub screen display 512 x 64 full dot LCD

Connection terminals: USB TO DEVICE [1]/[2], [USB TO HOST], MIDI [IN]/[OUT]/[THRU], FOOT CONTROLLER [1]/[2], FOOT SWITCH [SUSTAIN]/[ASSIGNABLE], OUTPUT (BALANCED) [L/MONO]/[R] (TRS balanced output terminal), ASSIGNABLE OUTPUT (BALANCED) [L]/[R] (TRS balanced output terminal), [PHONES] (stereo standard phone jack), A/D INPUT [L/MONO]/[R] (standard phone jack)

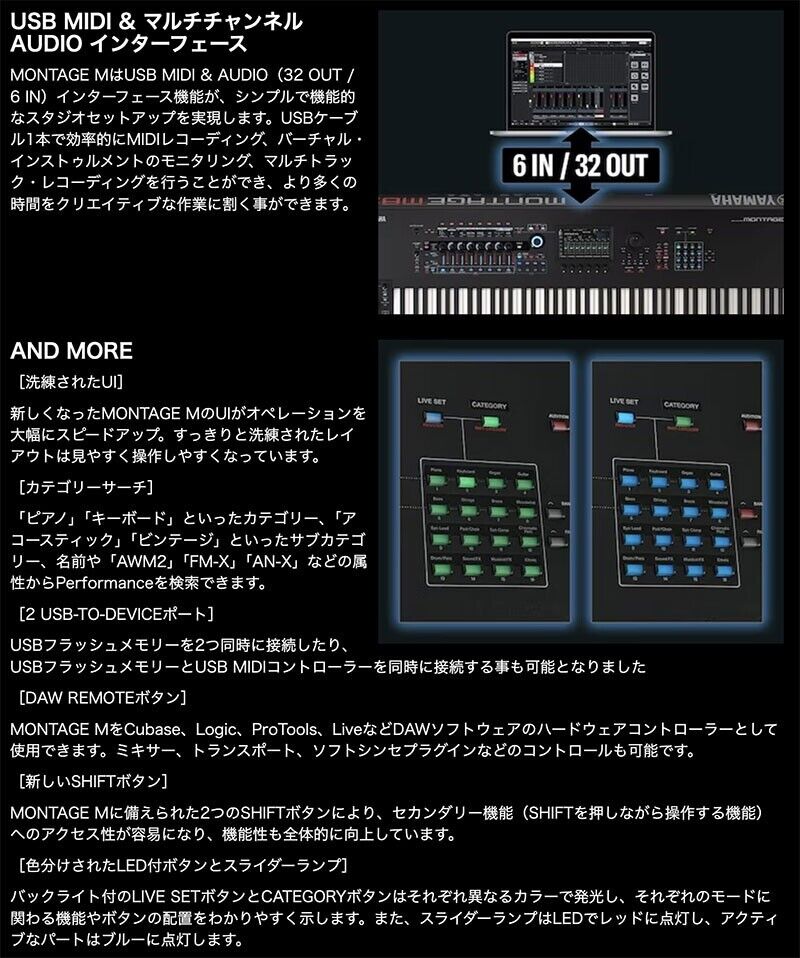

[USB audio interface]

Sampling frequency: 44.1kHz to 192kHz

Number of input/output channels: Sampling frequency = 44.1kHz: Input: Maximum 6 channels (3 stereo channels) Output: Maximum 32 channels (16 stereo channels), Sampling frequency = 44.1kHz-192kHz: Input: Maximum 6 channels (3 stereo channels) Output: Maximum 8 channels (4 stereo channels)

Power consumption: 36W

Accessories: Power cord, 2P-3P converter, quick guide, Cubase AI Download Information (About Cubase AI Download) Expanded Softsynth Plugin for MONTAGE M Download Information

■ Size

Width: 1,244mm

Depth: 396mm

Height: 131mm

Weight: 17.6kg
