Rated output 70W + 70W (20Hz~20kHz, 6Ω, 0.07%THD)

Practical maximum output (JEITA) 110W + 110W (1kHz, 6Ω, 10%THD)

Frequency characteristic

CD etc.(20Hz~20kHz) 0±0.5dB

CD and others (10Hz~100kHz, when pure direct ON) 0±1.0dB

Total harmonic distortion rate (when pure direct is ON)

CD etc. → SP OUT 0.015% or less (20Hz-20kHz, 40W/8Ω)

PHONO(MM)→LINE OUT 0.025% or less (20Hz~20kHz, 3V)

SN ratio (IHF-A, when pure direct ON)

CD etc. 100dB (input short, 200mV)

PHONO(MM) 87dB (input short, 5mV)

Residual noise (IHF-A, when pure direct ON) 30μVrms

Input/output terminal

Audio input analog 5 (CD 1, PHONO 1 LINE 3),

Digital 4 (2 optical, 2 coaxial),

USB 1(Type A)

Audio output Analog 2 (LINE out 2), subwoofer 1, headphones 1, speaker terminal (screw type A/B output)

Others Network (wired) 1 (100Base-TX/10Base-T), Network (wireless) 1 (IEEE 802.11 a/b/g/n/ac), AM/FM antenna input

network

Supported formats MP3, WMA, MPEG4, AAC, WAV*1*4, FLAC*2*4, AIFF*1*4, ALAC*3*4, DSD*4*5

Others radiko, Amazon Music, Spotify, Deezer, AirPlay compatible, Internet radio

wireless network

Wireless LAN standard

IEEE 802.11 a/b/g/n/ac

Frequency band used: 2.4 / 5 GHz

Wireless connection settings WPS (Wi-Fi Protected Serup) compatible, sharing wireless settings with iOS devices

Supported security WEP, WPA2-PSK(AES), Mixed Mode

Bluetooth

Version Ver. 4.2

Supported profiles A2DP v1.3, AVRCP v1

Compatible codec When receiving: SBC/AAC, When sending: SBC

Wireless output Bluetooth Class 2

Content protection SCMS-T

USB(Type-A)

Supported formats Same as network

Compatible devices USB mass storage class

tuner

FM tuner receiving frequency range 76.0~94.9MHz

AM tuner receiving frequency range 531~1611kHz

Power consumption 190W

Standby power consumption

Network standby OFF 0.2W

When network standby is ON: wired 1.8W, wireless (Wi-Fi) 2.0W

Dimensions Height 151mm x Width 435mm x Depth 392mm

Height 225mm x Width 435mm x Depth 392mm (Wi-Fi antenna upright)

Mass 9.8kg

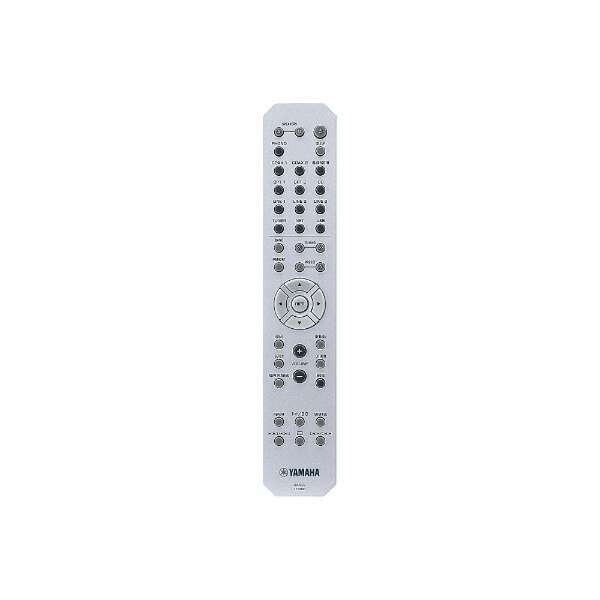

Accessories AM antenna, FM antenna, remote control, AA batteries

*1: Up to 384kHz/32bit. 32bit float files are not supported. *2: Up to 384kHz/24bit. *3: Up to 96kHz/24bit. *4: Supports gapless playback. *5: Up to 11.2MHz.
